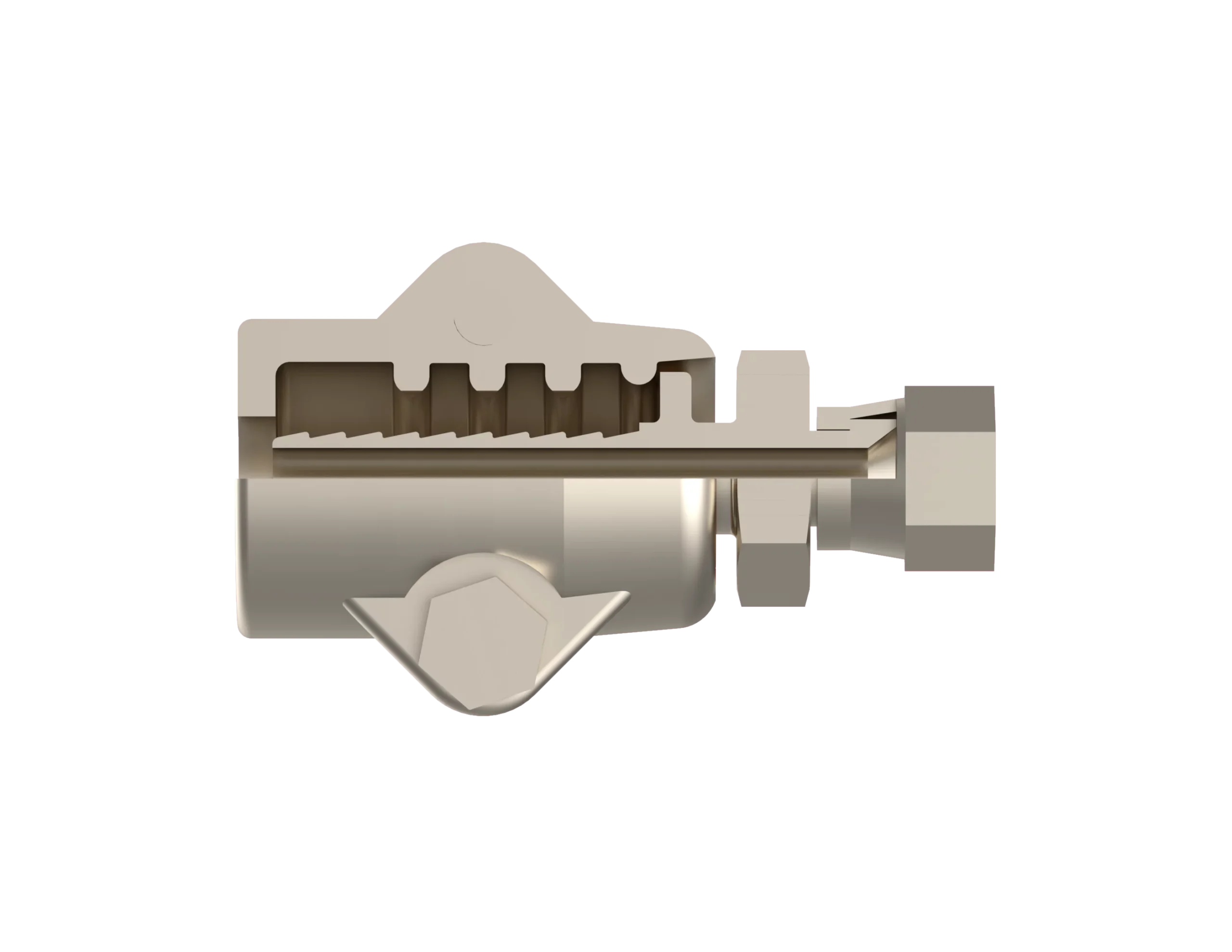

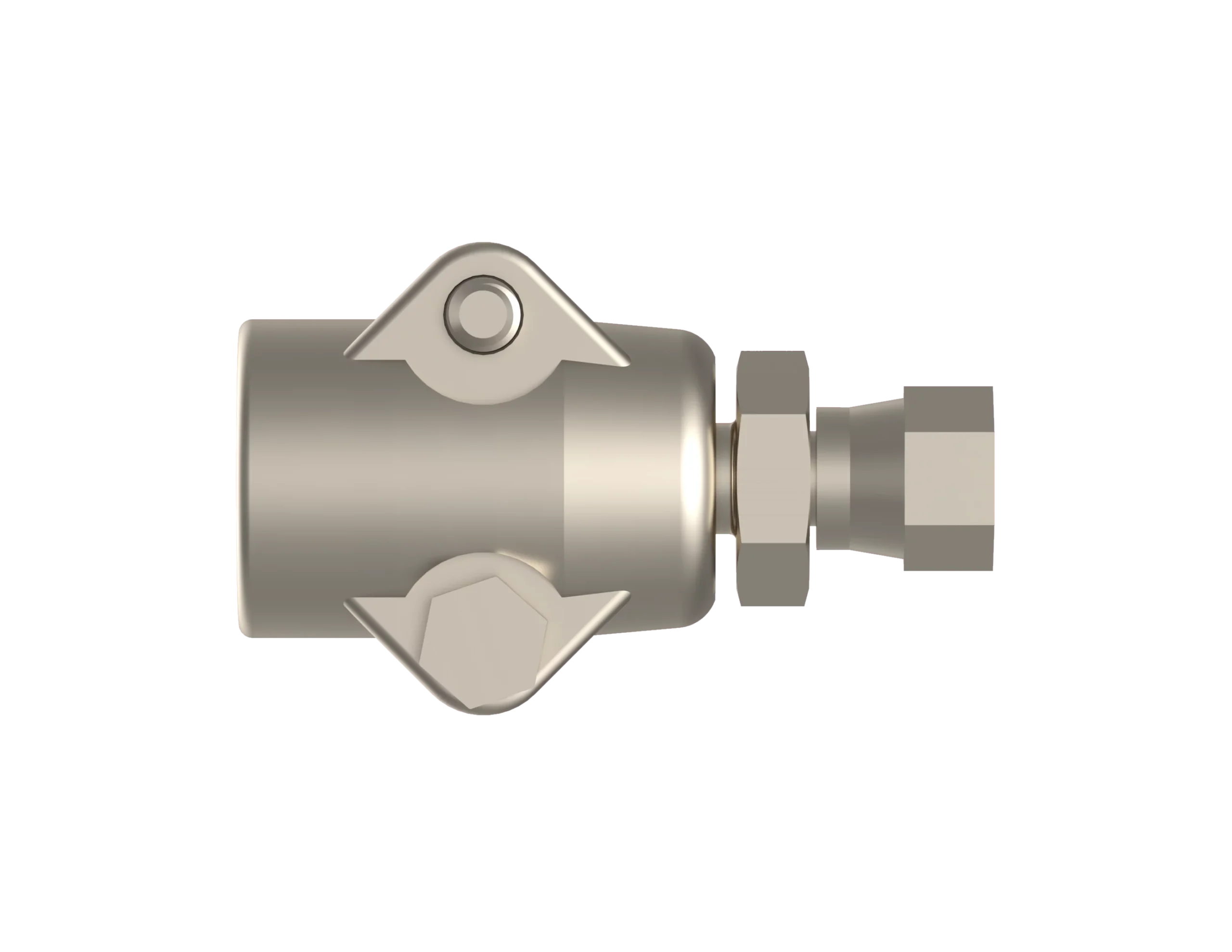

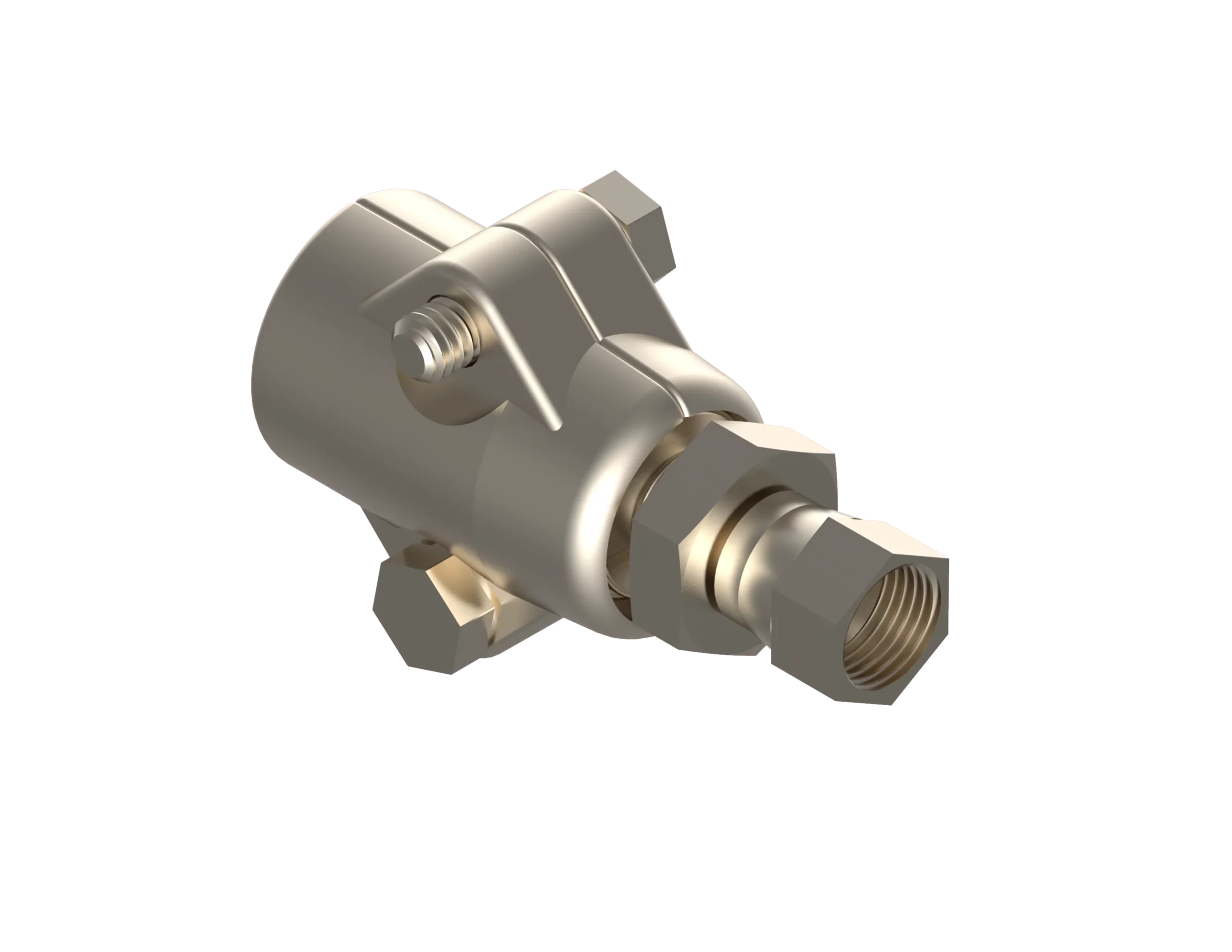

( MIL-DTL-24787/2, Type A, Group XI, J.I.C. End Fitting - Straight )

Description:

Equal to Hydrasearch P/N FC7100-4,
Use with the following hose: HS133

Specification

  • Part Number: FC7100-1212-4
  • IPS Size: 3/4
  • Thread CL-2B: 1-1/16”-12
  • A: 3.85
  • C: 1.25
  • D: 1.95
  • E: .61
  • M: .57
  • V: 2.42
  • W: 1.31
  • X: 3.27
  • Est. Wt. (lbs.): 1.70

Specification Table

Part NumberFC7100-1212-4
IPS Size3/4
Thread CL-2B1-1/16”-12
A3.85
C1.25
D1.95
E.61
M.57
V2.42
W1.31
X3.27
Est. Wt. (lbs.)1.70

Components Table

DescriptionReq’d per Ass’yBase No.060608081008120812121612Mat’l
Nipple Ass'y1FC6100-0606-40808-41008-41208-41212-41612-4Monel
Segment2FC2057-1-06-41-08-41-08-41-08-41-12-41-12-4Monel
Bolt2FF9032-05-18-406-20-406-20-406-20-407-24-407-24-4Monel
