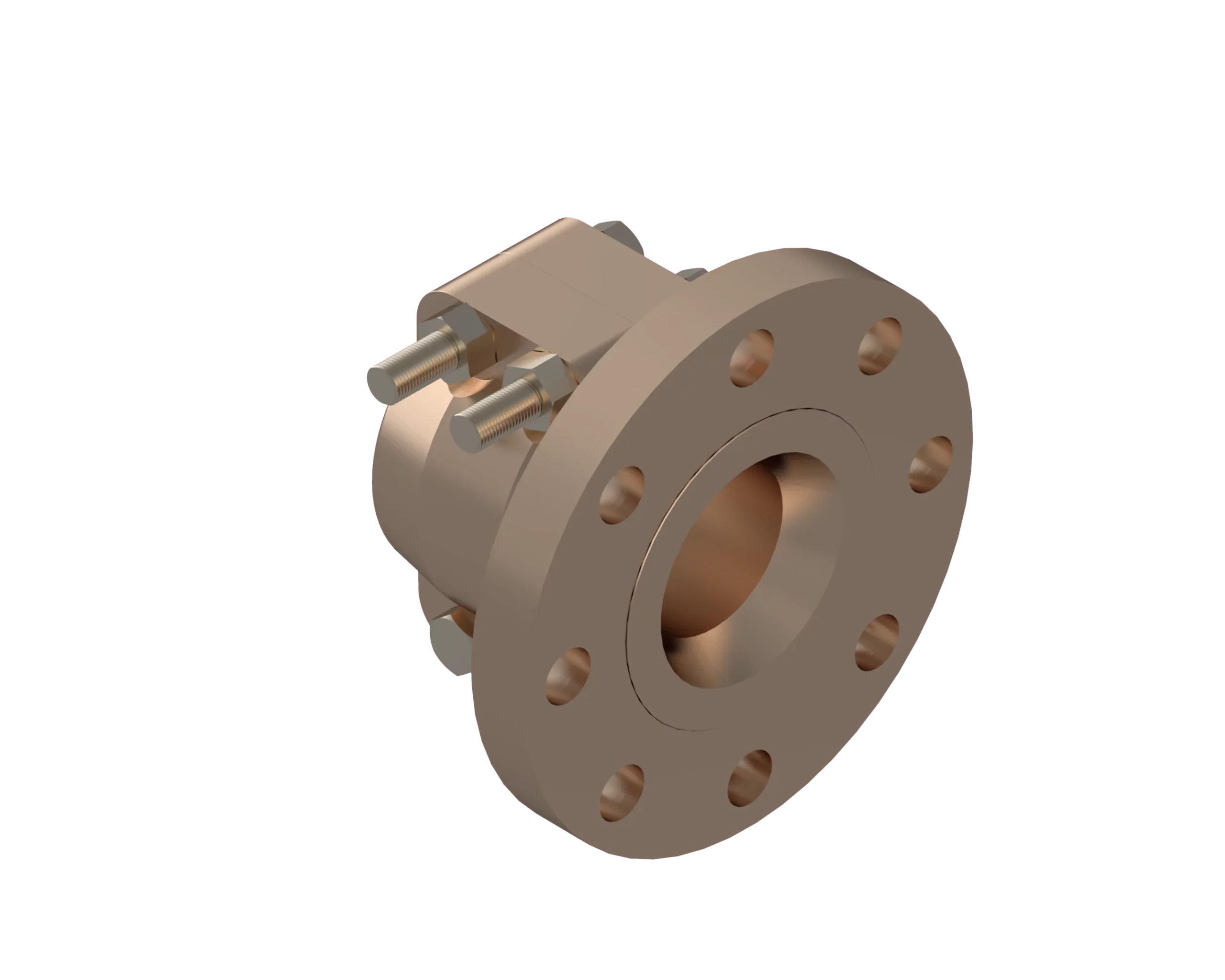

( MIL-DTL-24787/1, Type F, Group X, Class V, 150lb, End Fitting - Straight )

Description:

Equal to Hydrasearch P/N FC5048-188,
Use with the following hose: HS4182 & FC132

Specification

  • Part Number: FC5048-6464-188
  • IPS Size: 4
  • No. of Bolt Holes: 8
  • M: .75
  • A: 5.28
  • D: 2.37
  • J: 9.00
  • K: 5.22
  • L: 7.50
  • N: .50
  • S: 4.28
  • T: 8.91
  • Est. Wt. (lbs.): 25.00

Specification Table

Part NumberFC5048-6464-188
IPS Size4
No. of Bolt Holes8
M.75
A5.28
D2.37
J9.00
K5.22
L7.50
N.50
S4.28
T8.91
Est. Wt. (lbs.)25.00

Components Table

DescriptionReq’d per Ass’yBase No.32404040404848486464Material
Swivel Flange1188-74021-32-4040-4040-4848-4864-64Aluminum. Bronze
Nipple1FC3478-3240-1883240-1884048-1884848-1886464-188Aluminum. Bronze
Grip Segment2FC3476-40-18840-18848-18848-18864-188Aluminum. Bronze
Bolt4FF9142-0856-40856-40964-40964-41072-4Monel
Nut44-222048-889910Monel
