EF-SS1600A-3232
EF-SS1600A-3232iso-1-138std-116q-cut-121iso-2-126
EF-SS1600A-3232

EF-SS1600A-3232

Print Icon Print Download Icon Download PDF

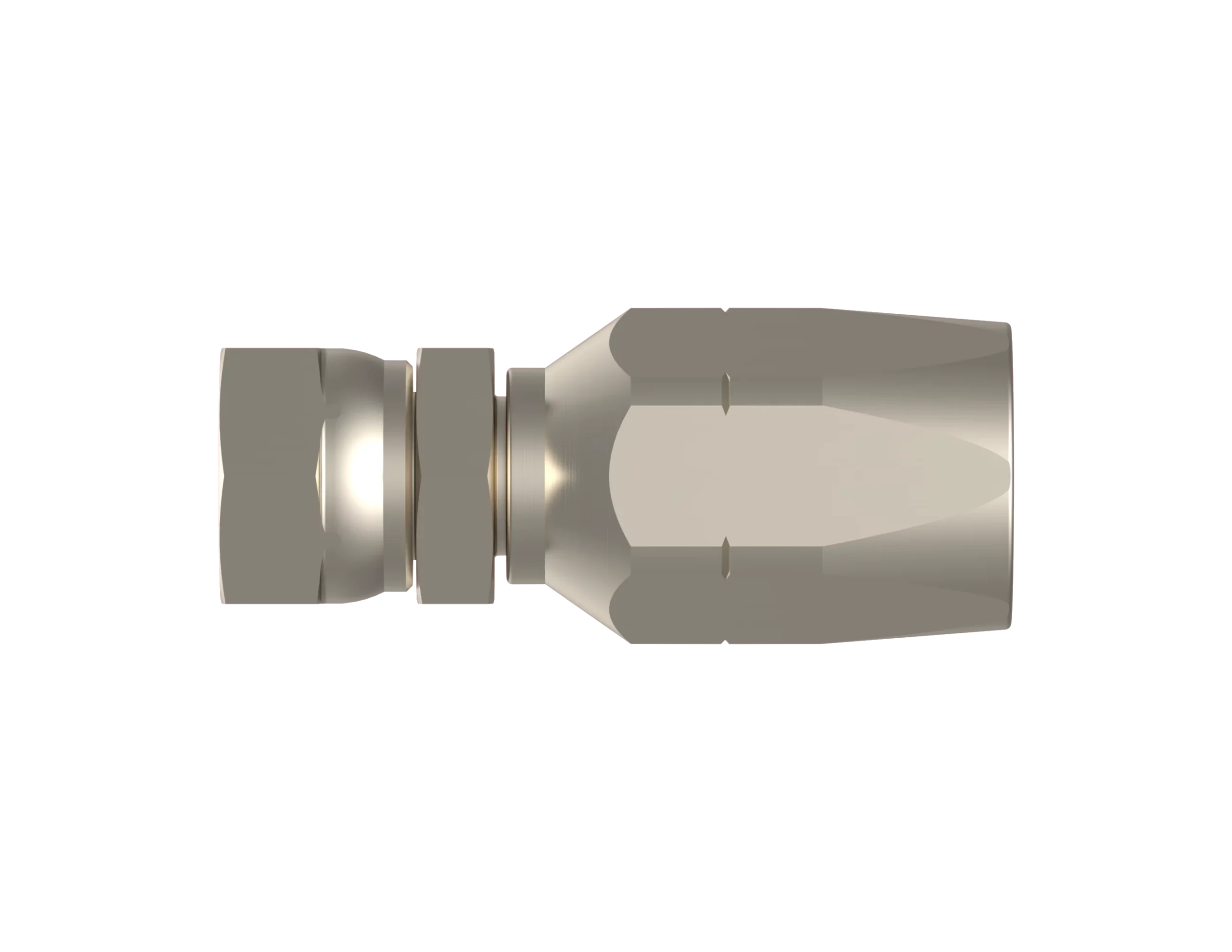

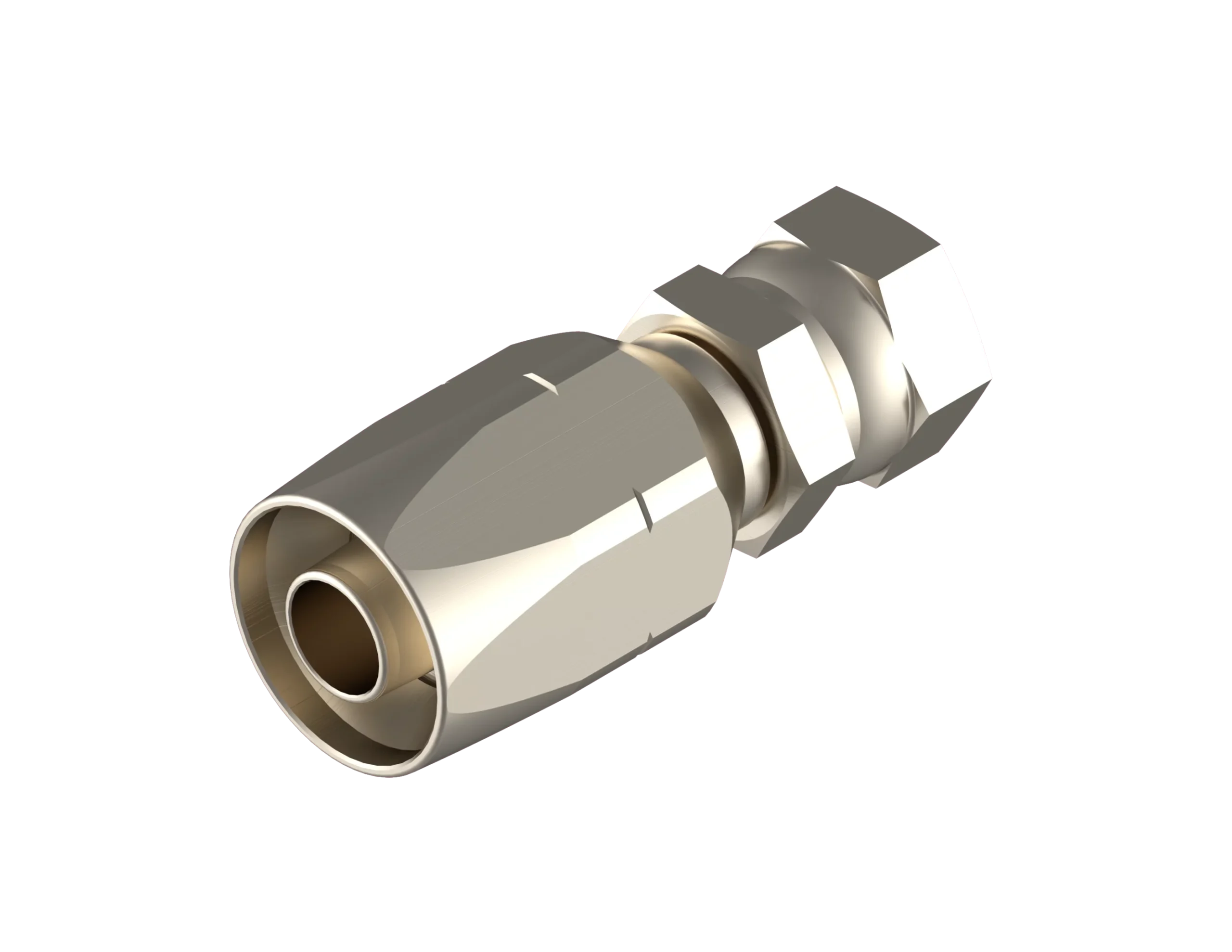

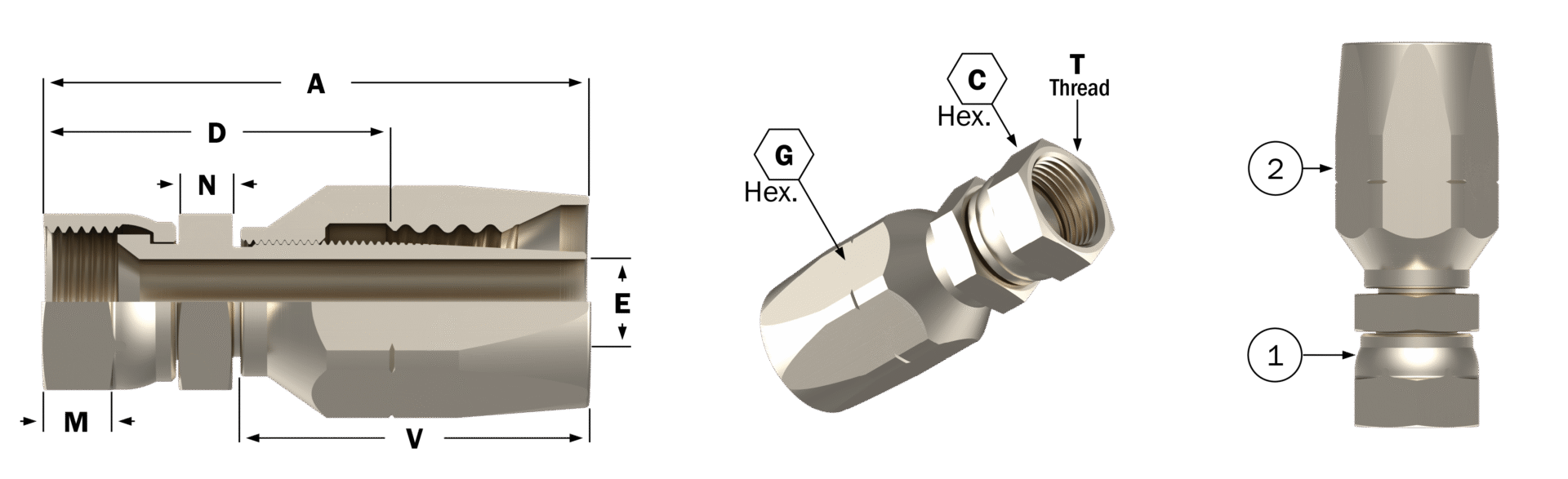

( End Fitting - Straight )

Description:

Equal to Aeroquip P/N 259-4721,
Use with the following hose: Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Specification

  • Part Number: EF-SS1600A-3232
  • Hydrasearch Drawing Number: -
  • Hose Id: 2
  • T Thread CL-2B: 2-1/2”-12
  • A: 6.75
  • C: 2.88
  • D: 3.46
  • E: 1.75
  • G: 3.50
  • M: .93
  • N: .50
  • V: 3.70
  • Est. Wt. (lbs.): 6.27

Specification Table

Part NumberEF-SS1600A-3232
Hydrasearch Drawing Number-
Hose Id2
T Thread CL-2B2-1/2”-12
A6.75
C2.88
D3.46
E1.75
G3.50
M.93
N.50
V3.70
Est. Wt. (lbs.)6.27

Components Table

Desc.Req’d per Ass’y0404050406040606080608081008Mat’l
Nipple1C19863C19902C19864C19865c19903C19866c19904S.S
Socket1C19794-2C19794-2C19794-2C19795-2C19795-2C19680-2C19680-2S.S
Desc.Req’d per Ass’y1208101012121616202024243232Mat’l
Nipple1C19905C19867C19868C19847C19869C19870C19871S.S
Socket1C19680-2C19796-2C19797-2C19700-2C19798-2C19799-2C1964-2S.S
