EF-SS1488A-1010
EF-SS1488A-1010iso-1-60std-55q-cut-58iso-2-56
EF-SS1488A-1010

EF-SS1488A-1010

Print Icon Print Download Icon Download PDF

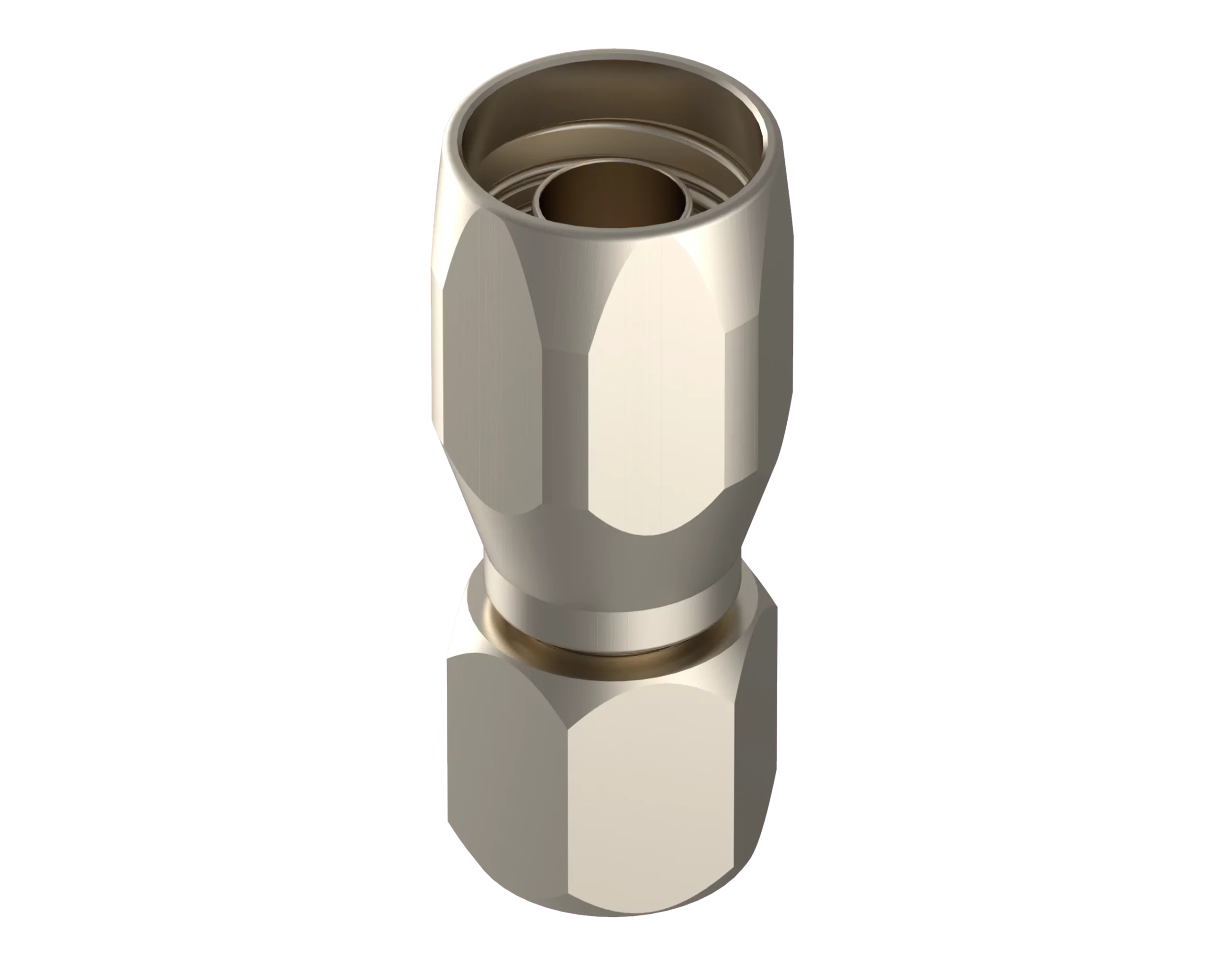

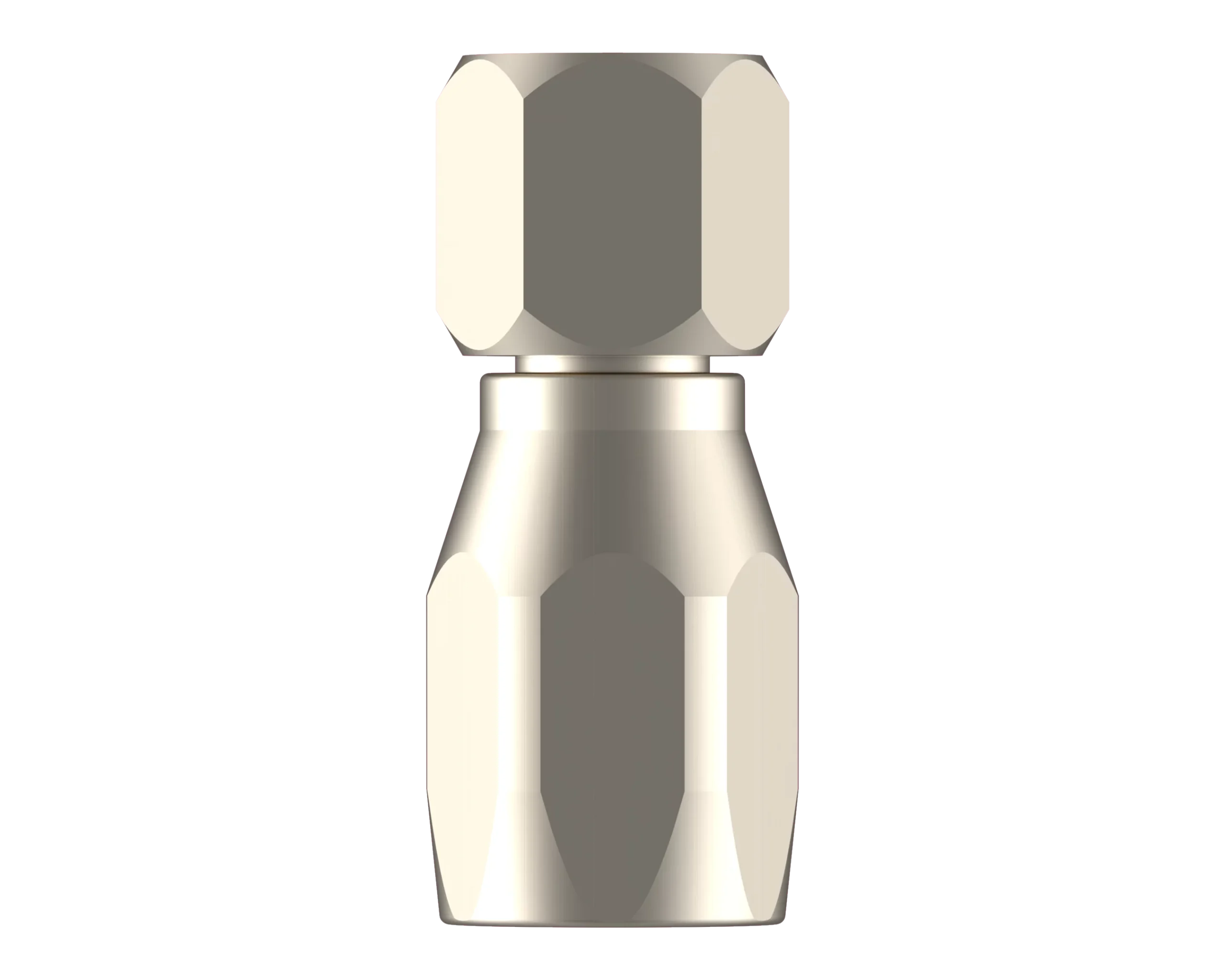

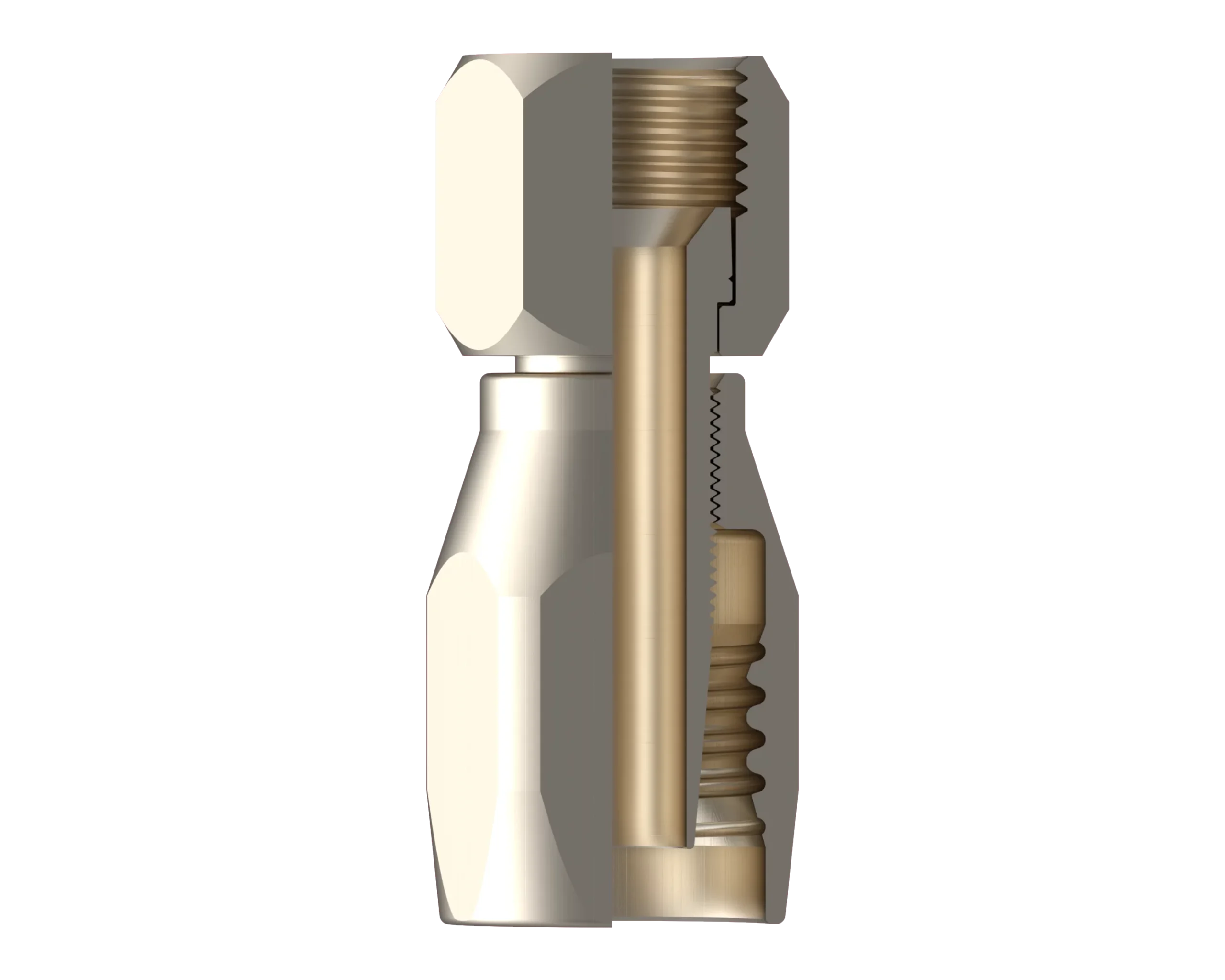

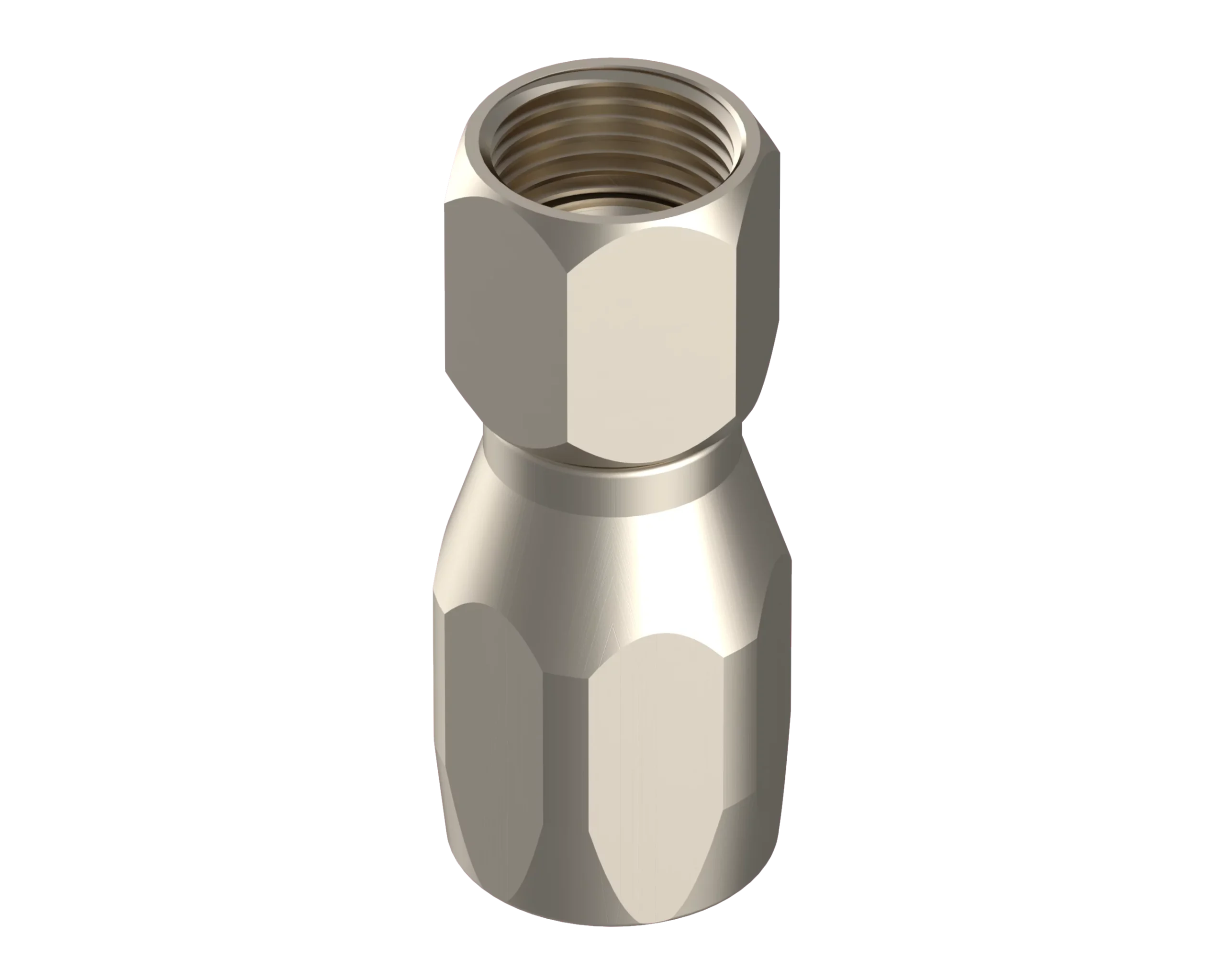

( End Fitting - Straight )

Description:

Equal to Aeroquip P/N 10-411 & 259-411,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-SS1488A-1010
  • Hydrasearch Drawing Number: C19269
  • Hose Size: 5/8
  • T Thread CL-2A: 7/8”-14
  • A: 2.90
  • B: 1.09
  • C: 1.00
  • D: 1.60
  • E: .48
  • G: 1.12
  • M: .51
  • V: 1.80
  • Est. Wt. (lbs.): .40

Specification Table

Part NumberEF-SS1488A-1010
Hydrasearch Drawing NumberC19269
Hose Size5/8
T Thread CL-2A7/8”-14
A2.90
B1.09
C1.00
D1.60
E.48
G1.12
M.51
V1.80
Est. Wt. (lbs.).40

Components Table

DescriptionReq’d per Ass’y0404060405050606080810081010121012121612Material
Nipple1B18978-3-B18979-3B18980-3C18647-3-B18981-3-B18982-3-Stainless Steel
Socket1C18984-3-C18985-3C18986-3C18648-3-C18987-3-C18988-3-Stainless Steel
Nut1B18972-3-B18973-3B18974-3B18778-3-B18975-3-B18976-3-Stainless Steel
