EF-SM1602C-1212

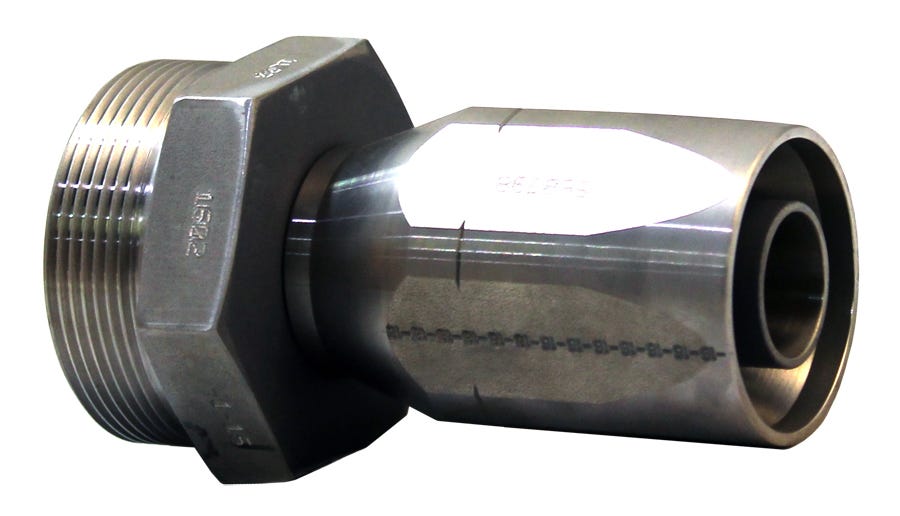

EF-SM1602C-1212 – End Fittings – Straight – Male “O”-Ring Seal to Hose (HS1602 Series)

Print Icon Print Download Icon Download PDF
( 24135/2 )

Description:

Equal to Aeroquip 41-190885,

Specification

  • Applicable Hoses: Wire reinforced hoses in accordance with MIL-DTL-24135/2
  • Component 1: Required per Assembly – 1 Description – Nipple C19806-1 Material – Monel in accordance with QQ-N-281
  • Component 2: Required per Assembly – 1 Description – Socket C19846-2 Material – Steel in accordance with ASTM A108
  • M: 0.62''
  • N: 0.50''
  • V: 2.47''
  • A: 3.61''
  • C: 2.12''
  • D: 1.74''
  • E: 0.61''
  • G: 1.500''
  • Equal To Aeroquip No : 41-190885-3/4-12''
  • Est. Wt. (lbs.): 1.77''
  • Hydrasearch Drawing Number: C20668
  • IPS Size: 3/4
  • NSN No.: 4730-00-064-8236
  • Thread Size T Br Thread Cl 3A: 2"-12

Specification Table

Applicable HosesWire reinforced hoses in accordance with MIL-DTL-24135/2
Component 1Required per Assembly – 1 Description – Nipple C19806-1 Material – Monel in accordance with QQ-N-281
Component 2Required per Assembly – 1 Description – Socket C19846-2 Material – Steel in accordance with ASTM A108
M0.62''
N0.50''
V2.47''
A3.61''
C2.12''
D1.74''
E0.61''
G1.500''
Equal To Aeroquip No 41-190885-3/4-12''
Est. Wt. (lbs.)1.77''
Hydrasearch Drawing NumberC20668
IPS Size3/4
NSN No.4730-00-064-8236
Thread Size T Br Thread Cl 3A2"-12
