EF-SM1602C-0812

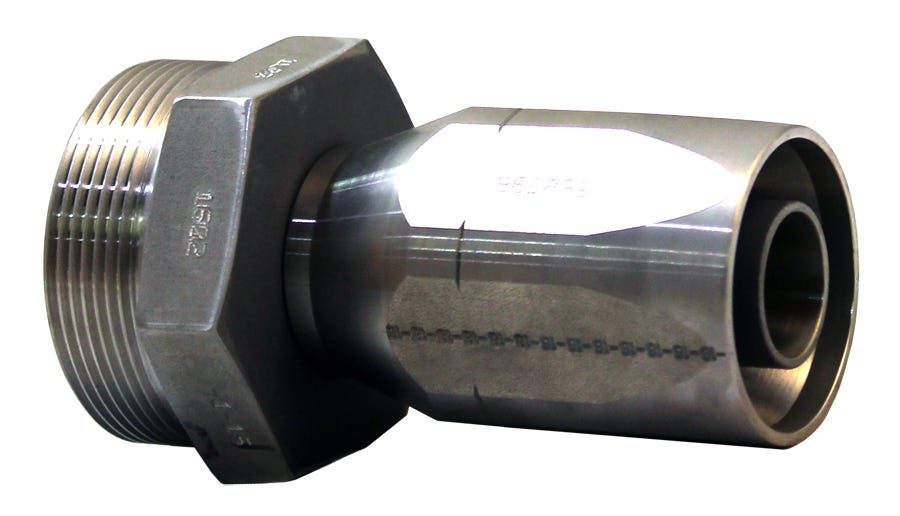

EF-SM1602C-0812 – End Fittings – Straight – Male “O”-Ring Seal to Hose (HS1602 Series)

Print Icon Print Download Icon Download PDF
( 24135/2 )

Description:

Equal to Aeroquip 41-190885,

Specification

  • Applicable Hoses: Wire reinforced hoses in accordance with MIL-DTL-24135/2
  • Component 1: Required per Assembly – 1 Description – Nipple C19805-1 Material – Monel in accordance with QQ-N-281
  • Component 2: Required per Assembly – 1 Description – Socket C19846-2 Material – Steel in accordance with ASTM A108
  • M: 0.62''
  • N: 0.38''
  • V: 2.47''
  • A: 3.49''
  • C: 1.81''
  • D: 1.62''
  • E: 1/2''
  • G: 1.500''
  • Equal To Aeroquip No : 41-190885-1/2-12''
  • Est. Wt. (lbs.): 1.47''
  • Hydrasearch Drawing Number: C20354
  • IPS Size: 1/2''
  • NSN No.: 4730-01-199-4227
  • Thread Size T Br Thread Cl 3A: 1-3/4"-12''"

Specification Table

Applicable HosesWire reinforced hoses in accordance with MIL-DTL-24135/2
Component 1Required per Assembly – 1 Description – Nipple C19805-1 Material – Monel in accordance with QQ-N-281
Component 2Required per Assembly – 1 Description – Socket C19846-2 Material – Steel in accordance with ASTM A108
M0.62''
N0.38''
V2.47''
A3.49''
C1.81''
D1.62''
E1/2''
G1.500''
Equal To Aeroquip No 41-190885-1/2-12''
Est. Wt. (lbs.)1.47''
Hydrasearch Drawing NumberC20354
IPS Size1/2''
NSN No.4730-01-199-4227
Thread Size T Br Thread Cl 3A1-3/4"-12''"
