EF-SM1602C-0606

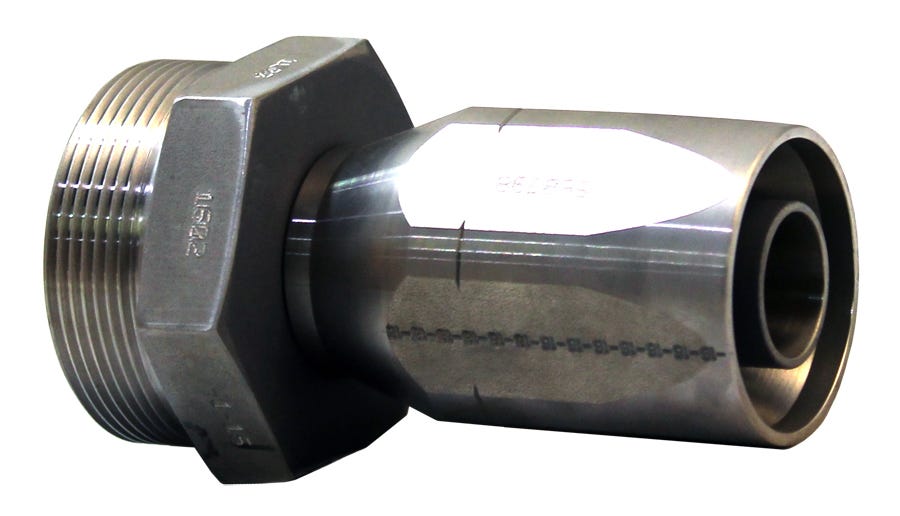

EF-SM1602C-0606 – End Fittings – Straight – Male “O”-Ring Seal to Hose (HS1602 Series)

Print Icon Print Download Icon Download PDF
( 24135/2 )

Description:

Equal to Aeroquip 41-190885,

Specification

  • Applicable Hoses: Wire reinforced hoses in accordance with MIL-DTL-24135/2
  • Component 1: Required per Assembly – 1 Description – Nipple C19906-1 Material – Monel in accordance with QQ-N-281
  • Component 2: Required per Assembly – 1 Description – Socket C19845-2 Material – Steel in accordance with ASTM A108
  • M: 0.62''
  • N: 0.31''
  • V: 1.92''
  • A: 2.91''
  • C: 1.44''
  • D: 1.45''
  • E: 0.31''
  • G: 1.000''
  • Equal To Aeroquip No : 41-190885-3/8-6''
  • Est. Wt. (lbs.): 0.62''
  • Hydrasearch Drawing Number: C20352
  • IPS Size: 3/8''
  • Thread Size T Br Thread Cl 3A: 1-3/8"-12''

Specification Table

Applicable HosesWire reinforced hoses in accordance with MIL-DTL-24135/2
Component 1Required per Assembly – 1 Description – Nipple C19906-1 Material – Monel in accordance with QQ-N-281
Component 2Required per Assembly – 1 Description – Socket C19845-2 Material – Steel in accordance with ASTM A108
M0.62''
N0.31''
V1.92''
A2.91''
C1.44''
D1.45''
E0.31''
G1.000''
Equal To Aeroquip No 41-190885-3/8-6''
Est. Wt. (lbs.)0.62''
Hydrasearch Drawing NumberC20352
IPS Size3/8''
Thread Size T Br Thread Cl 3A1-3/8"-12''
