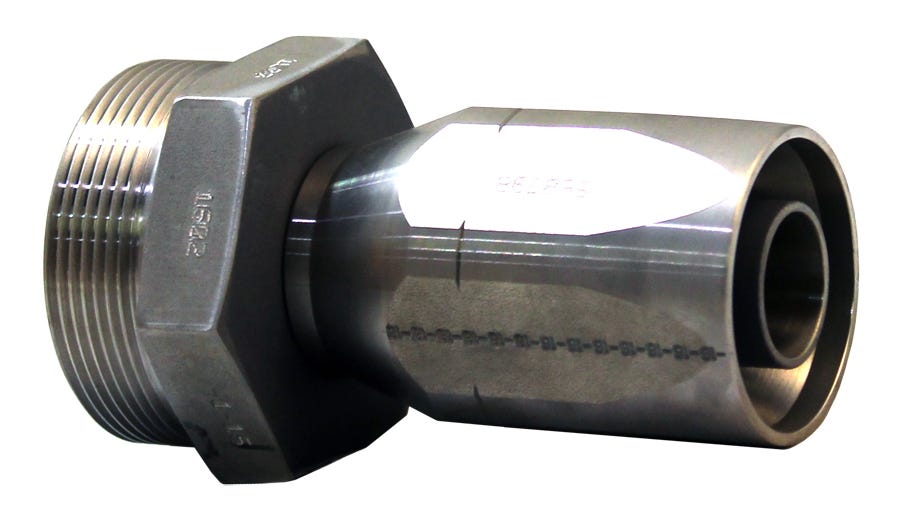

EF-SM1602C-0406 – End Fittings – Straight – Male “O”-Ring Seal to Hose (HS1602 Series)
EF-SM1602C-0406 – End Fittings – Straight – Male “O”-Ring Seal to Hose (HS1602 Series)
EF-SM1602C-0406

EF-SM1602C-0406 – End Fittings – Straight – Male “O”-Ring Seal to Hose (HS1602 Series)

Print Icon Print Download Icon Download PDF
( 24135/2 )

Description:

Equal to Aeroquip 41-190885,

Specification

  • Applicable Hoses: Wire reinforced hoses in accordance with MIL-DTL-24135/2
  • Component 1: Required per Assembly – 1 Description – Nipple C19803-1 Material – Monel in accordance with QQ-N-281
  • Component 2: Required per Assembly – 1 Description – Socket C19845-2 Material – Steel in accordance with ASTM A108
  • M: '0.62
  • N: 0.25
  • V: '1.92
  • A: '2.82
  • C: '1-1/4
  • D: '1.34
  • E: '0.31
  • G: '1.000
  • Equal To Aeroquip No : '41-190885-1/4-6
  • Est. Wt. (lbs.): '0.54
  • Hydrasearch Drawing Number: C20351
  • IPS Size: '1/4
  • NSN No.: 4730-00-064-8258
  • Thread Size T Br Thread Cl 3A: '1-3/16"-12

Specification Table

Applicable HosesWire reinforced hoses in accordance with MIL-DTL-24135/2
Component 1Required per Assembly – 1 Description – Nipple C19803-1 Material – Monel in accordance with QQ-N-281
Component 2Required per Assembly – 1 Description – Socket C19845-2 Material – Steel in accordance with ASTM A108
M '0.62
N0.25
V'1.92
A'2.82
C'1-1/4
D'1.34
E'0.31
G'1.000
Equal To Aeroquip No '41-190885-1/4-6
Est. Wt. (lbs.)'0.54
Hydrasearch Drawing NumberC20351
IPS Size'1/4
NSN No. 4730-00-064-8258
Thread Size T Br Thread Cl 3A '1-3/16"-12
