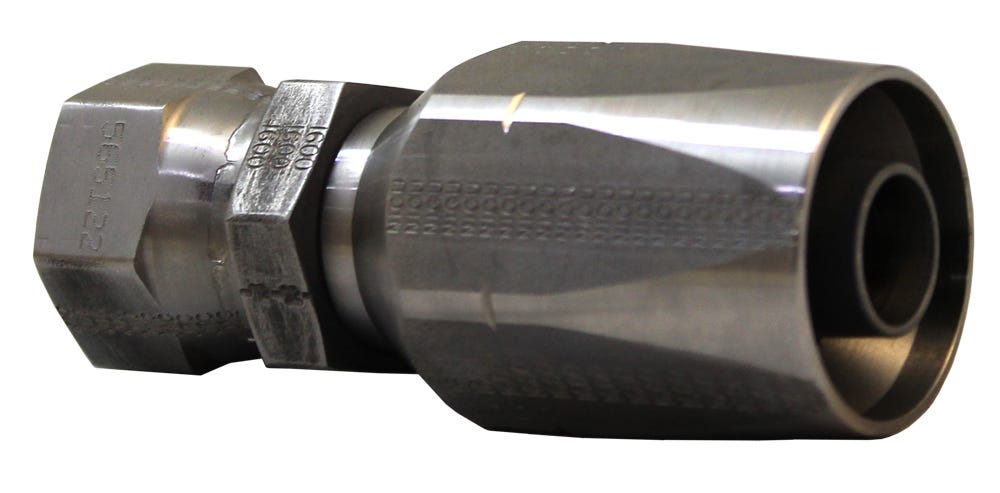

EF-SM1602A-1616 – End Fittings – Straight – S.A.E. 37º Female Flare Swivel to Hose (HS1602 Series)
EF-SM1602A-1616 – End Fittings – Straight – S.A.E. 37º Female Flare Swivel to Hose (HS1602 Series)
EF-SM1602A-1616

EF-SM1602A-1616 – End Fittings – Straight – S.A.E. 37º Female Flare Swivel to Hose (HS1602 Series)

Print Icon Print Download Icon Download PDF
( 24135/2 )

Description:

Equal to Aeroquip 41-4730,

Specification

  • Applicable Hoses: Wire reinforced hoses in accordance with MIL-DTL-24135/2
  • Component 1: Required per Assembly – 1 Material – Monel Description – Nipple Assembly C19847
  • Component 1A: Required per Assembly – 1 Description – Nipple Material – Monel in accordance with QQ-N-281 C19703-1
  • Component 1B: Required per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nut B18774
  • Component 2: Required per Assembly – 1 Description – Socket C19700-2 Material – Steel in accordance with ASTM A108
  • M: '0.60
  • N: ''0.38
  • V: '2.95
  • A: '4.49
  • C: '1-1/2
  • D: '2.43
  • E: '0.82
  • G: '1.81
  • Equal To Aeroquip No : '41-4730-16-16
  • Est. Wt. (lbs.): '1.72
  • Hose Id: '1
  • Hydrasearch Drawing Number: C20338
  • NSN No.: 4730-00-928-6588
  • Thread Size T Br Thread Cl 2B: '1-5/16"-12

Specification Table

Applicable HosesWire reinforced hoses in accordance with MIL-DTL-24135/2
Component 1Required per Assembly – 1 Material – Monel Description – Nipple Assembly C19847
Component 1ARequired per Assembly – 1 Description – Nipple Material – Monel in accordance with QQ-N-281 C19703-1
Component 1BRequired per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nut B18774
Component 2Required per Assembly – 1 Description – Socket C19700-2 Material – Steel in accordance with ASTM A108
M '0.60
N''0.38
V '2.95
A '4.49
C'1-1/2
D'2.43
E'0.82
G'1.81
Equal To Aeroquip No '41-4730-16-16
Est. Wt. (lbs.) '1.72
Hose Id'1
Hydrasearch Drawing NumberC20338
NSN No.4730-00-928-6588
Thread Size T Br Thread Cl 2B '1-5/16"-12
