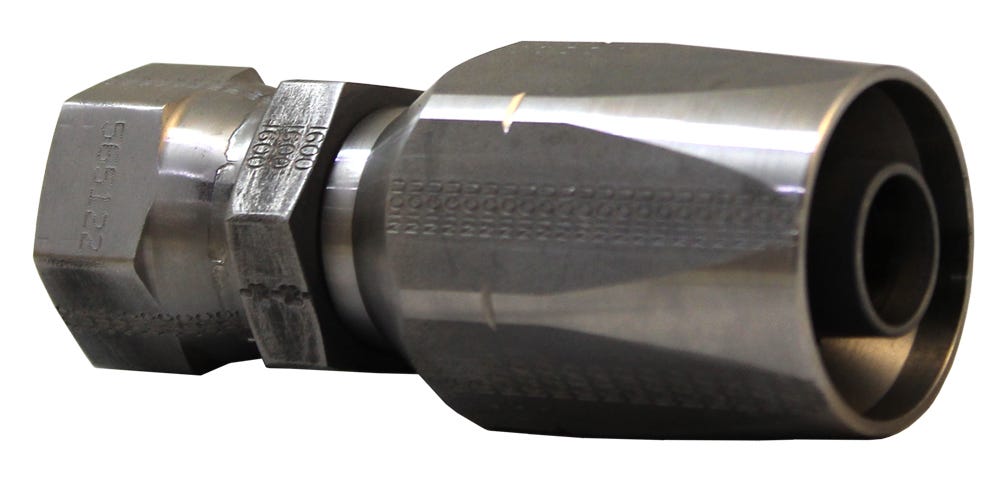

EF-SM1602A-1212 – End Fittings – Straight – S.A.E. 37º Female Flare Swivel to Hose (HS1602 Series)
EF-SM1602A-1212 – End Fittings – Straight – S.A.E. 37º Female Flare Swivel to Hose (HS1602 Series)
EF-SM1602A-1212

EF-SM1602A-1212 – End Fittings – Straight – S.A.E. 37º Female Flare Swivel to Hose (HS1602 Series)

Print Icon Print Download Icon Download PDF
( DTL-24135/2 )

Description:

Equal to Aeroquip 41-4730,

Specification

  • Applicable Hoses: Wire reinforced hoses in accordance with MIL-DTL-24135/2
  • Component 1: Required per Assembly – 1 Material – Monel Description – Nipple Assembly C19868
  • Component 1A: Required per Assembly – 1 Description – Nipple Material – Monel in accordance with QQ-N-281 C19951-1
  • Component 1B: Required per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nut B18772
  • Component 2: Required per Assembly – 1 Description – Socket C19846-2 Material – Steel in accordance with ASTM A108
  • M: '0.57
  • N: '0.38
  • V: '2.47
  • A: '4
  • C: '1-1/4
  • D: 1.99
  • E: '0.61
  • G: '1.500
  • Equal To Aeroquip No : '41-4730-12
  • Est. Wt. (lbs.): '1.1
  • Nominal Hose Id In: '3/4
  • Hydrasearch Drawing Number: C20335
  • NSN No.: 4730-00-928-6577
  • Thread Size T Br Thread Cl 2B: '1-1/16"-12

Specification Table

Applicable HosesWire reinforced hoses in accordance with MIL-DTL-24135/2
Component 1Required per Assembly – 1 Material – Monel Description – Nipple Assembly C19868
Component 1ARequired per Assembly – 1 Description – Nipple Material – Monel in accordance with QQ-N-281 C19951-1
Component 1BRequired per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nut B18772
Component 2Required per Assembly – 1 Description – Socket C19846-2 Material – Steel in accordance with ASTM A108
M '0.57
N'0.38
V'2.47
A '4
C'1-1/4
D1.99
E'0.61
G'1.500
Equal To Aeroquip No '41-4730-12
Est. Wt. (lbs.)'1.1
Nominal Hose Id In'3/4
Hydrasearch Drawing NumberC20335
NSN No. 4730-00-928-6577
Thread Size T Br Thread Cl 2B '1-1/16"-12
