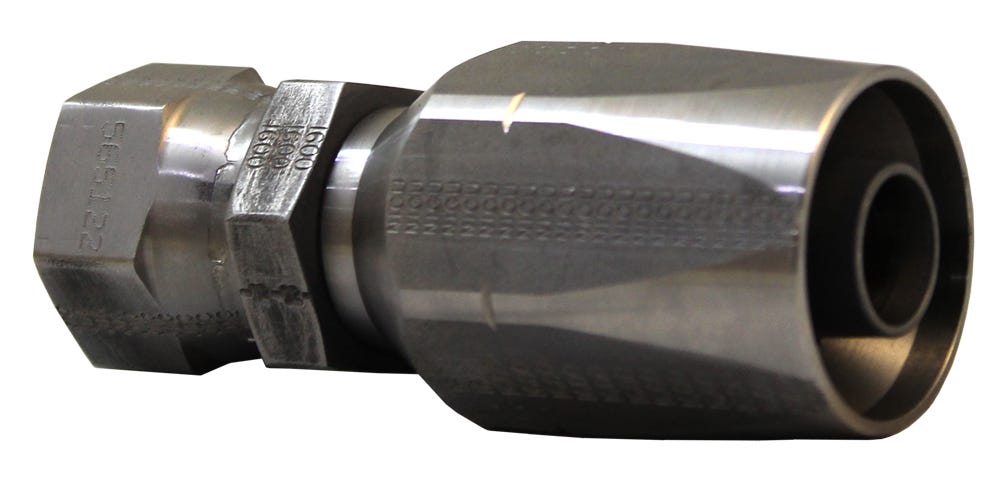

EF-SM1602A-1010 – End Fittings – Straight – S.A.E. 37º Female Flare Swivel to Hose (HS1602 Series)
EF-SM1602A-1010 – End Fittings – Straight – S.A.E. 37º Female Flare Swivel to Hose (HS1602 Series)
EF-SM1602A-1010

EF-SM1602A-1010 – End Fittings – Straight – S.A.E. 37º Female Flare Swivel to Hose (HS1602 Series)

Print Icon Print Download Icon Download PDF
( DTL-24135/2 )

Description:

Equal to Aeroquip 41-4730,

Specification

  • Applicable Hoses: Wire reinforced hoses in accordance with MIL-DTL-24135/2
  • Component 1: Required per Assembly – 1 Material – Monel Description – Nipple Assembly C19867
  • Component 1A: Required per Assembly – 1 Description – Nipple Material – Monel in accordance with QQ-N-281 C20021-1
  • Component 1B: Required per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nut B18916
  • Component 2: Required per Assembly – 1 Description – Socket C19926-2 Material – Steel in accordance with ASTM A108
  • M: '0.52
  • N: '0.31
  • V: '2.10
  • A: '3-1/2
  • C: '1
  • D: 1.85
  • E: 1.85
  • G: '1.500
  • Equal To Aeroquip No : '41-4730-10
  • Est. Wt. (lbs.): '0.78
  • Nominal Hose Id In: '5/8
  • Hydrasearch Drawing Number: C20334
  • Thread Size T Br Thread Cl 2B: '7/8"-14

Specification Table

Applicable HosesWire reinforced hoses in accordance with MIL-DTL-24135/2
Component 1Required per Assembly – 1 Material – Monel Description – Nipple Assembly C19867
Component 1ARequired per Assembly – 1 Description – Nipple Material – Monel in accordance with QQ-N-281 C20021-1
Component 1BRequired per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nut B18916
Component 2Required per Assembly – 1 Description – Socket C19926-2 Material – Steel in accordance with ASTM A108
M '0.52
N'0.31
V'2.10
A'3-1/2
C '1
D1.85
E1.85
G'1.500
Equal To Aeroquip No '41-4730-10
Est. Wt. (lbs.)'0.78
Nominal Hose Id In'5/8
Hydrasearch Drawing NumberC20334
Thread Size T Br Thread Cl 2B '7/8"-14
