EF-SM1602A-0606

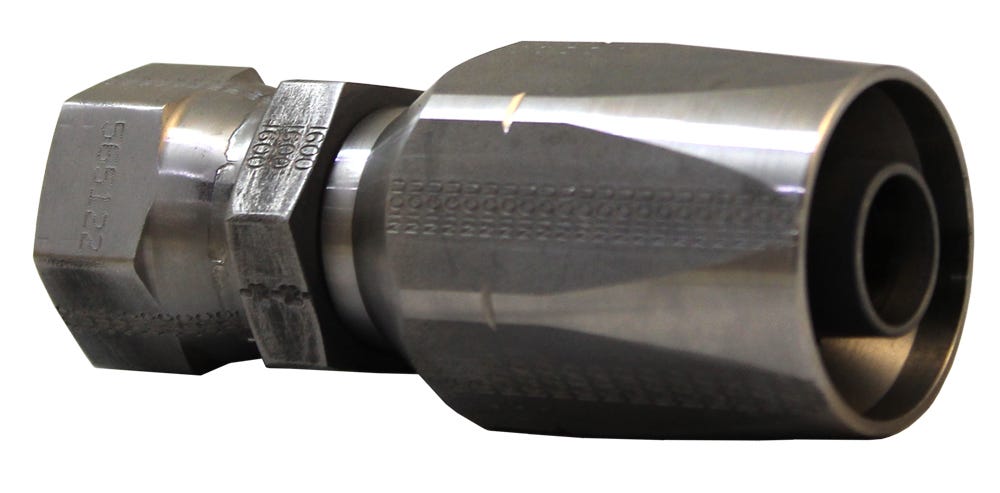

EF-SM1602A-0606 – End Fittings – Straight – S.A.E. 37º Female Flare Swivel to Hose (HS1602 Series)

Print Icon Print Download Icon Download PDF
( DTL-24135/2 )

Description:

Equal to Aeroquip 41-4730,
Use with the following hose: End Fittings – Straight – S.A.E. 37º Female Flare Swivel to Hose (HS1602 Series)

Specification

  • Applicable Hoses: Wire reinforced hoses in accordance with MIL-DTL-24135/2
  • Component 1: Required per Assembly – 1 Material – Monel Description – Nipple Assembly C19865
  • Component 1A: Required per Assembly – 1 Description – Nipple Material – Monel in accordance with QQ-N-281 C19940-1
  • Component 1B: Required per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nut B18771
  • Component 2: Required per Assembly – 1 Description – Socket C19845-2 Material – Steel in accordance with ASTM A108
  • M: .40''
  • N: 0.28''
  • V: 1.92''
  • A: 2.98''
  • C: 2.98''
  • D: 1.51''
  • E: 0.31''
  • G: 1.000''
  • Equal To Aeroquip No : 41-4730-6-6''
  • Estimated Weight Per Ft Lbs: 0.4
  • Nominal Hose Id In: 3/8''
  • Hydrasearch Drawing Number: C20329
  • NSN No.: 4730-01-211-0951
  • Thread Size T Br Thread Cl 2B: 9/16"-18''"

Specification Table

Applicable HosesWire reinforced hoses in accordance with MIL-DTL-24135/2
Component 1Required per Assembly – 1 Material – Monel Description – Nipple Assembly C19865
Component 1ARequired per Assembly – 1 Description – Nipple Material – Monel in accordance with QQ-N-281 C19940-1
Component 1BRequired per Assembly – 1 Material – Monel in accordance with QQ-N-281 Description – Nut B18771
Component 2Required per Assembly – 1 Description – Socket C19845-2 Material – Steel in accordance with ASTM A108
M.40''
N0.28''
V1.92''
A2.98''
C2.98''
D1.51''
E0.31''
G1.000''
Equal To Aeroquip No 41-4730-6-6''
Estimated Weight Per Ft Lbs0.4
Nominal Hose Id In3/8''
Hydrasearch Drawing NumberC20329
NSN No.4730-01-211-0951
Thread Size T Br Thread Cl 2B9/16"-18''"
