EF-SM1600C-2020

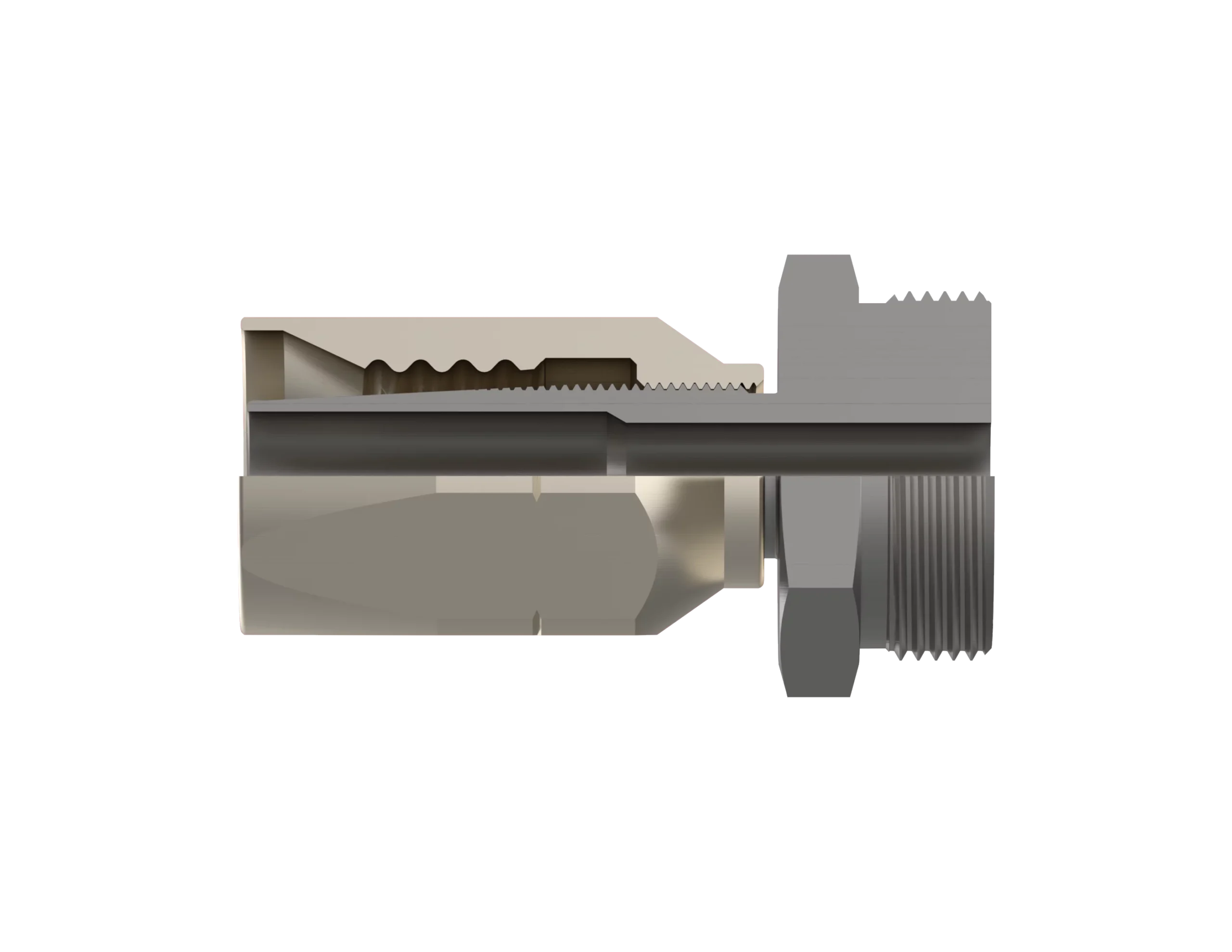

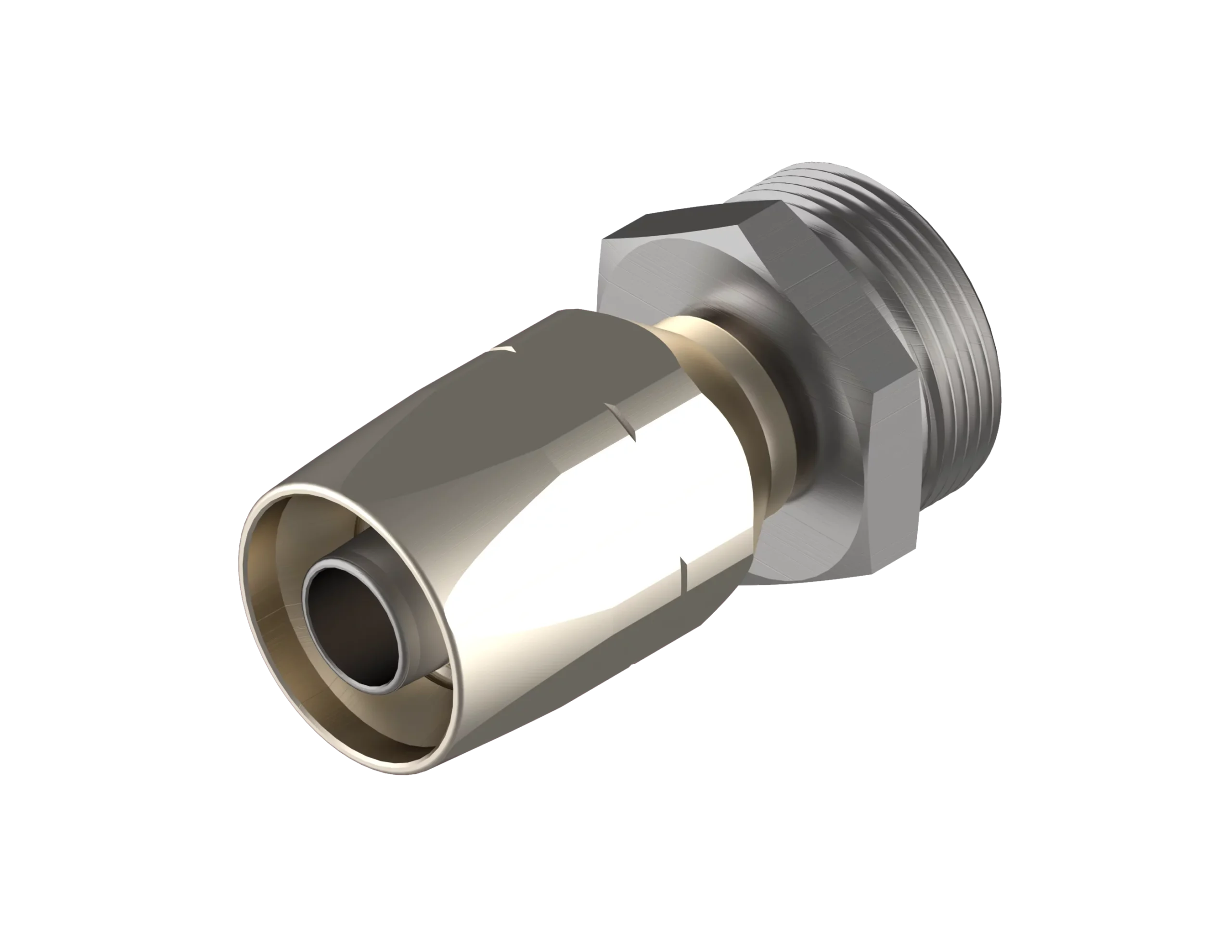

EF-SM1600C-2020 – End Fittings – Straight – Male “O”-Ring Seal to Hose (HS1600 Series)
Print
Download PDF
( End Fitting - Straight )
Description:
Equal to Aeroquip P/N 41-190909,
Use with the following hose:
Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13
Specification
Specification Table
| Part Number | EF-SM1600C-2020 |
|---|---|
| Hydrasearch Drawing Number | C20515 |
| IPS Size | 1.25 |
| T Thread CL-2B | 2-3/4”-12 |
| A | 4.80 |
| C | 2.88 |
| D | 2.48 |
| E | .81 |
| G | 2.75 |
| M | .75 |
| N | .62 |
| V | 3.42 |
| Est. Wt. (lbs.) | 4.75 |
Components Table
| Desc. | Req’d per Ass’y | 0204 | 0406 | 0606 | 0608 | 0812 | 1216 | Mat’lMat’l |
| Nipple | 1 | C19802-1 | C19803-1 | C19906-1 | C19804-1 | C19805-1 | C19807-1 | Monel |
| Socket | 1 | C19794-2 | C19795-2 | C19795-2 | C19680-2 | C19797-2 | C19700-2 | Steel |
| Desc. | Req’d per Ass’y | 1616 | 2016 | 1620 | 2020 | 2024 | 2432 | 3232 | Mat’l |
| Nipple | 1 | C19808-1 | C19908-1 | C19809-1 | C19909-1 | C19810-1 | C19811-1 | C19812 | Monel |
| Socket | 1 | C19700-2 | C19700-2 | C19798-2 | C19798-2 | C19799-2 | C19694-2 | C19694-1 | Steel |
