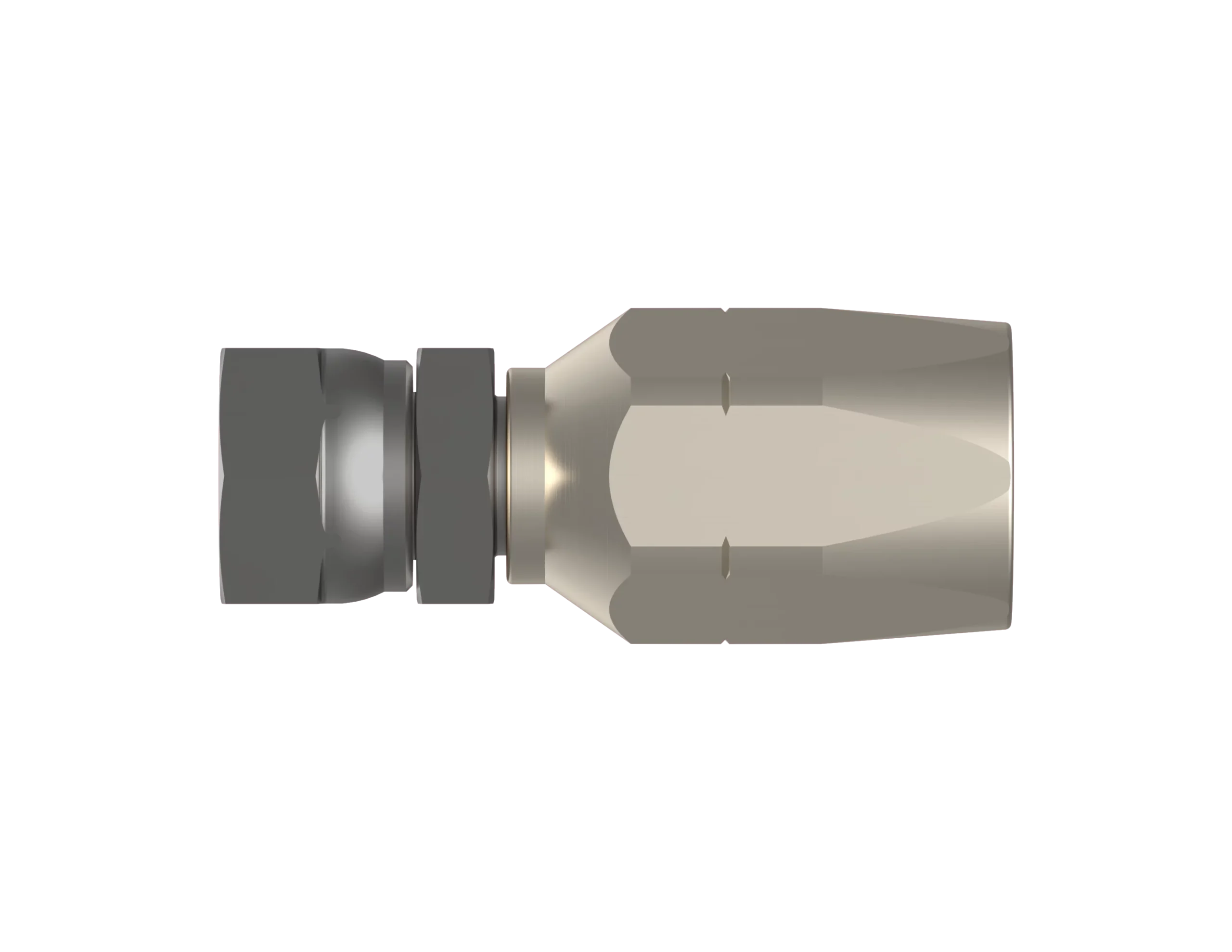

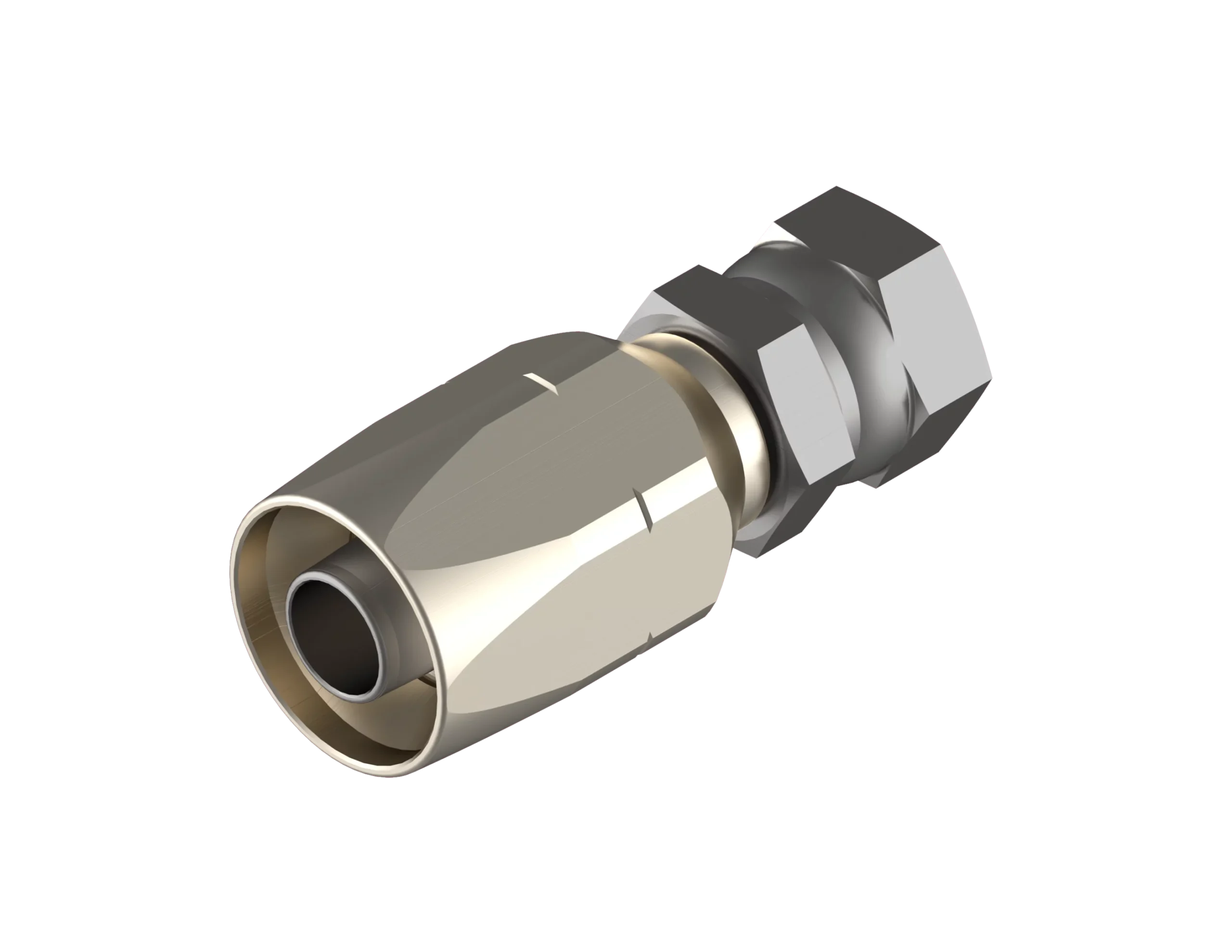

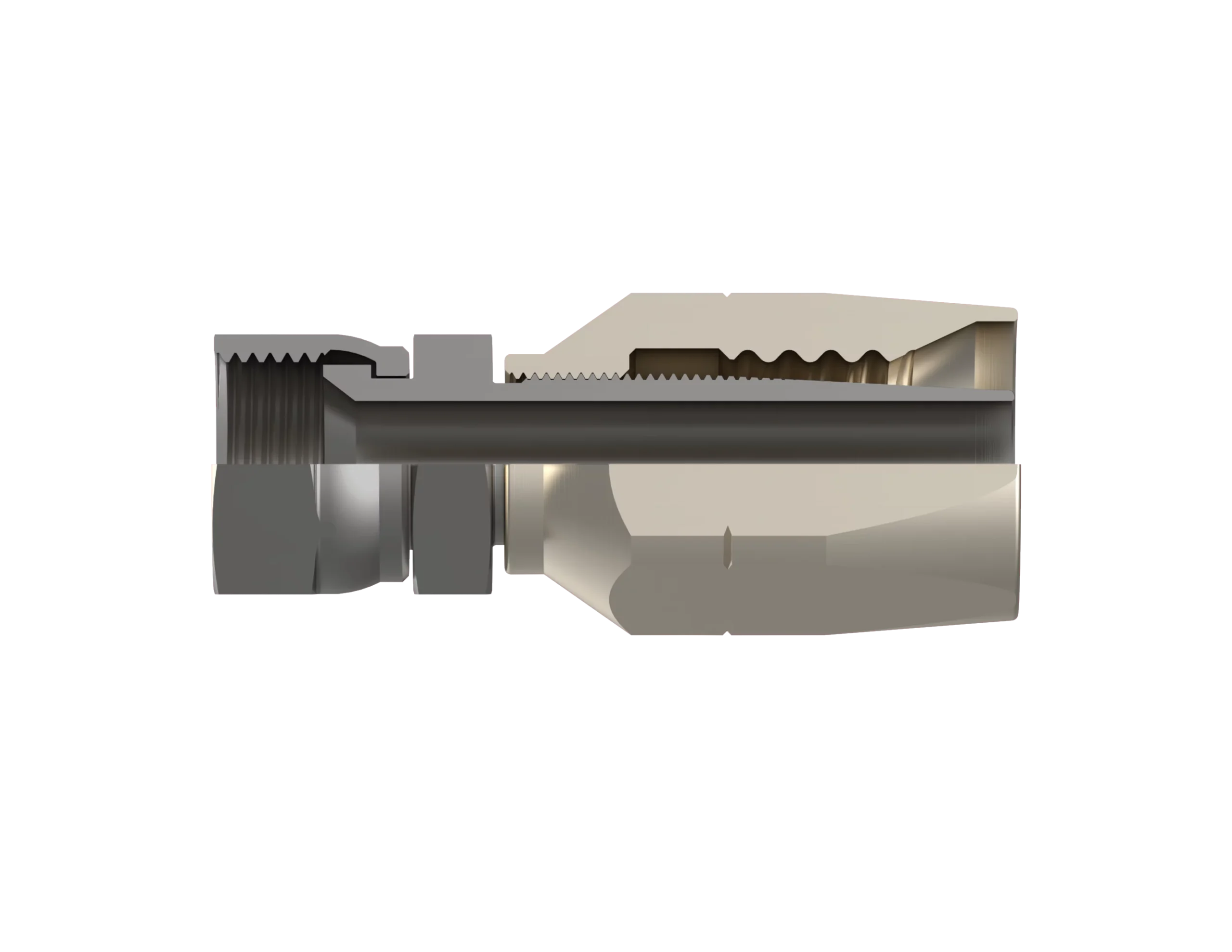

( End Fitting - Straight )

Description:

Equal to Aeroquip P/N 41-4721,
Use with the following hose: Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13

Specification

  • Part Number: EF-SM1600A-1212
  • Hydrasearch Drawing Number: C20497
  • Hose Id: 3/4
  • T Thread CL-2B: 1-1/16”-12
  • A: 4.00
  • C: 1.25
  • D: 1.99
  • E: .61
  • G: 1.75
  • M: .57
  • N: .38
  • V: 2.47
  • Est. Wt. (lbs.): 1.10

Specification Table

Part NumberEF-SM1600A-1212
Hydrasearch Drawing NumberC20497
Hose Id3/4
T Thread CL-2B1-1/16”-12
A4.00
C1.25
D1.99
E.61
G1.75
M.57
N.38
V2.47
Est. Wt. (lbs.)1.10

Components Table

Desc.Req’d per Ass’y0404050406040606080608081008Mat’l
Nipple1C19863C19902C19864C19865C19903C19866C19904Monel
Socket1C19794-2C19794-2C19794-2C19795-2C19795-2C19680-2C19680-2S.S
Desc.Req’d per Ass’y1208101012121616202024243232Mat’l
Nipple1C19905C19867c19868C19847C19869C19870C19871Monel
Socket1C19680-2C19796-2C19797-2C19700-2C19798-2C19799-2C19694-2S.S
