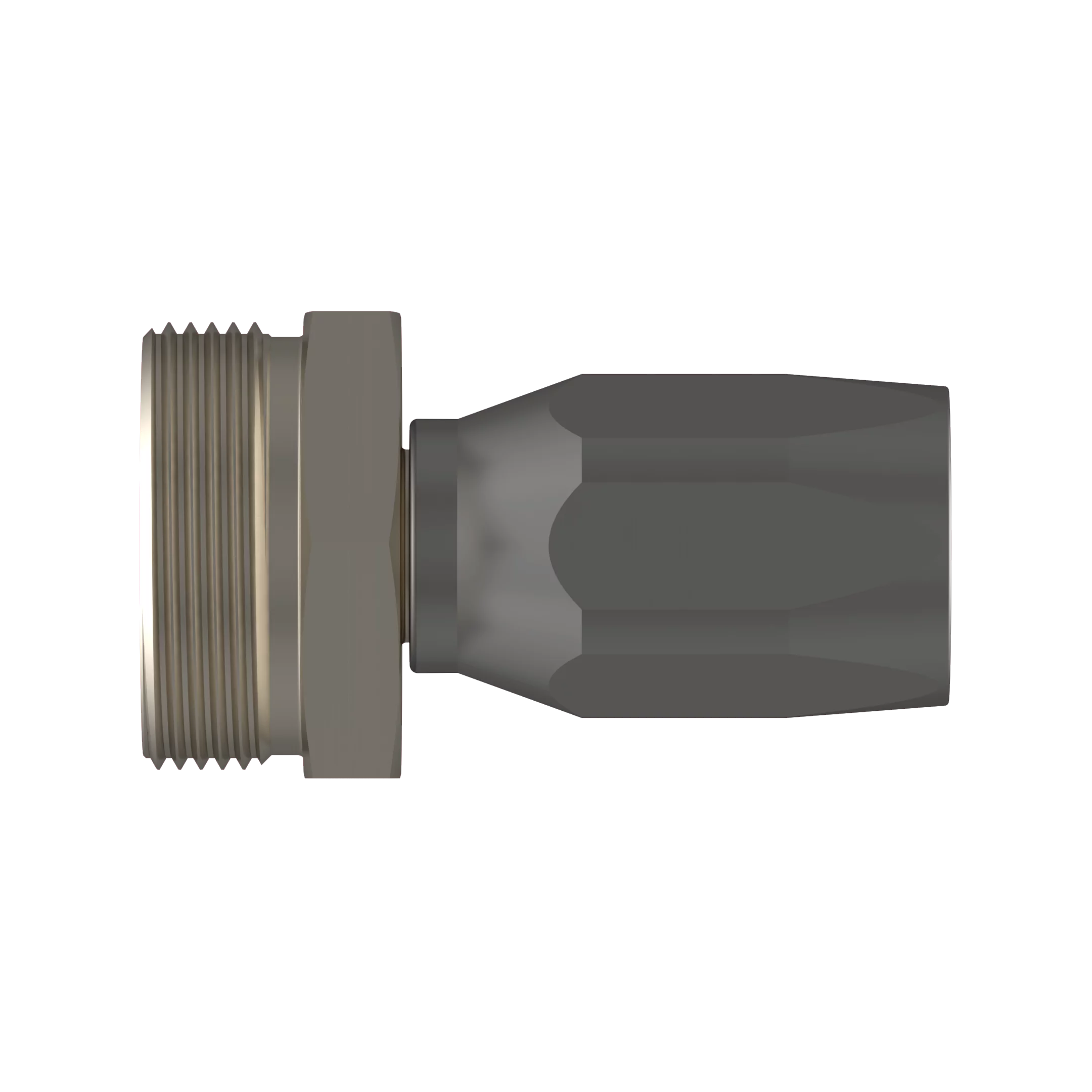

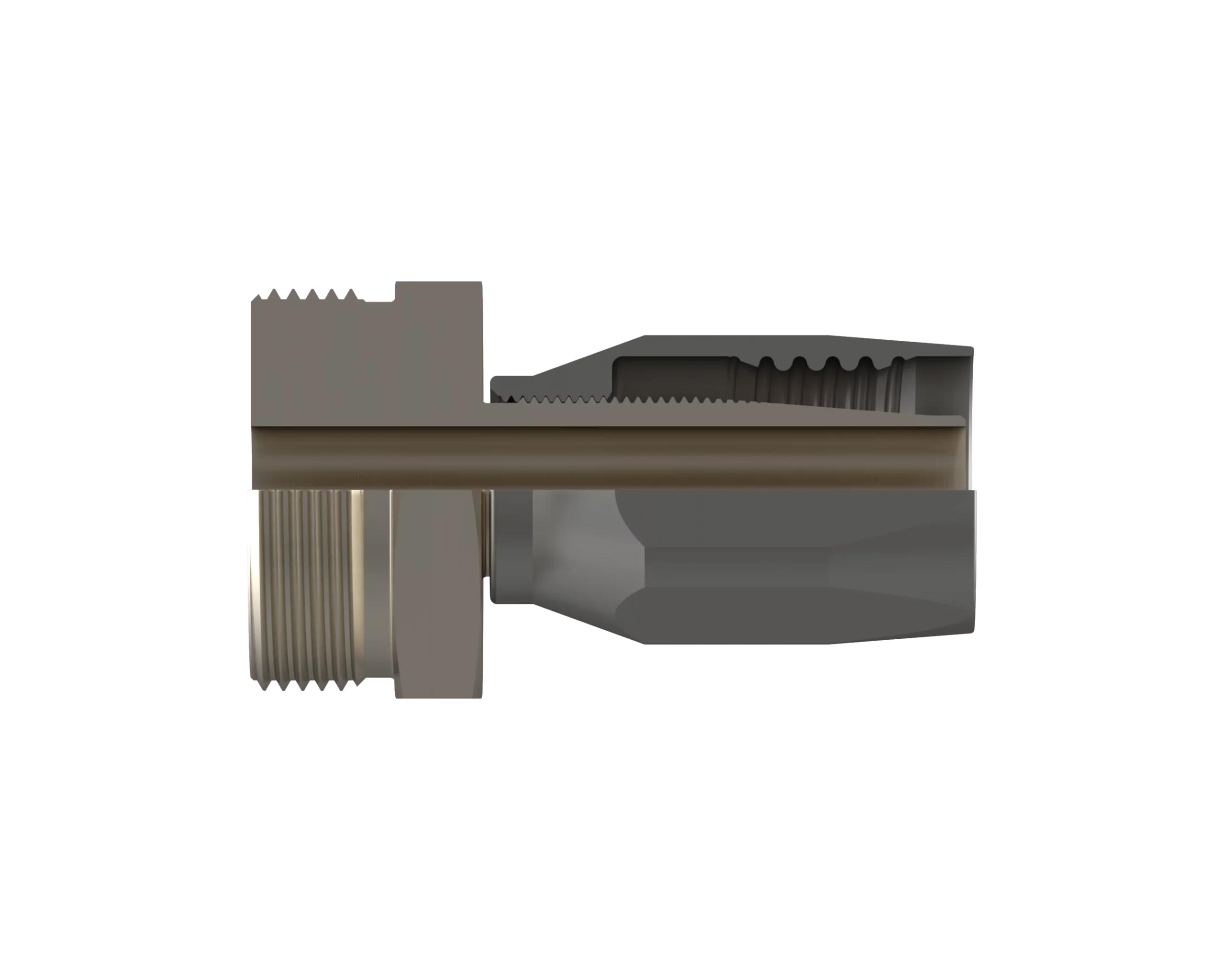

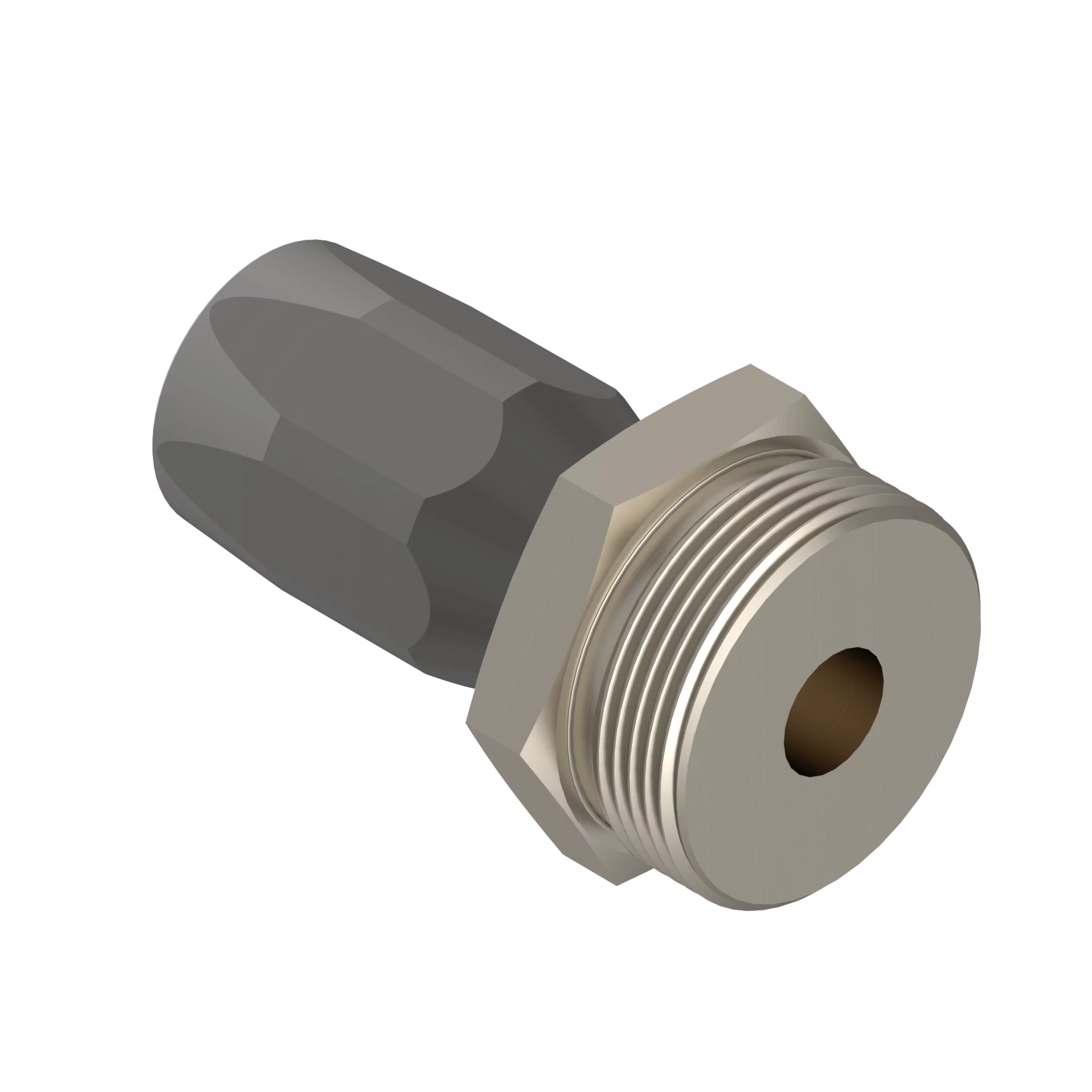

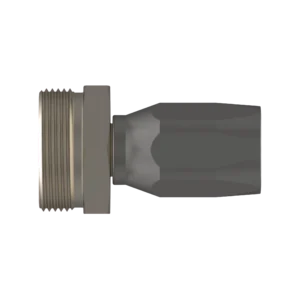

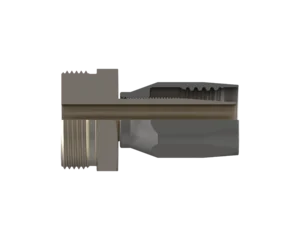

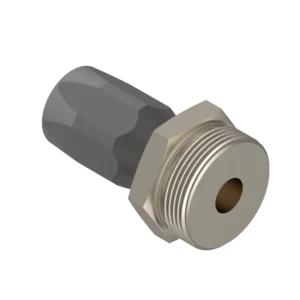

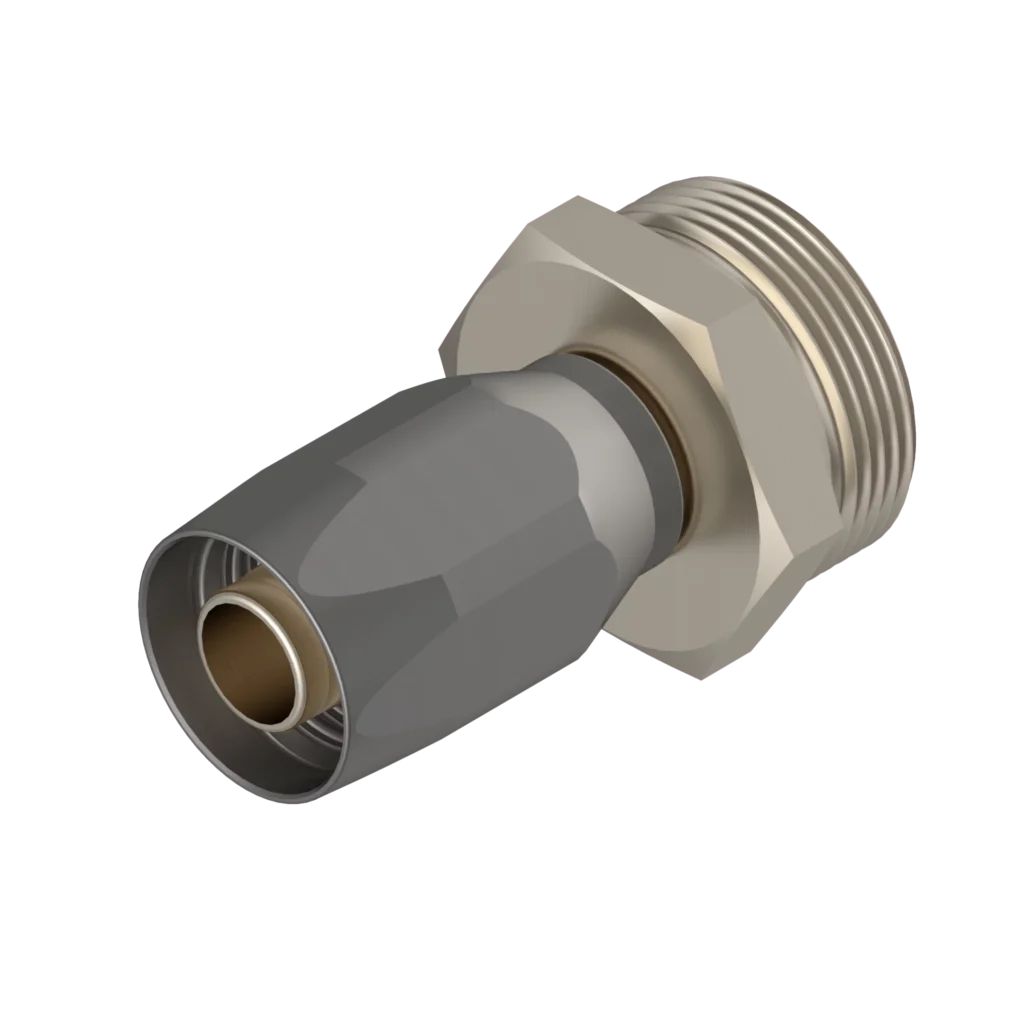

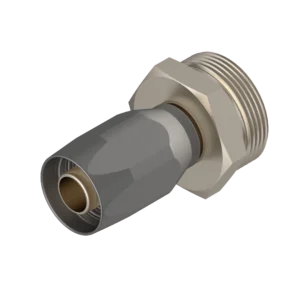

EF-MSS1488C-0610 – End Fittings – Straight – Male “O”-Ring Seal to Hose (Stainless Steel/Monel)
EF-MSS1488C-0610 – End Fittings – Straight – Male “O”-Ring Seal to Hose (Stainless Steel/Monel)iso-1-68std-63q-cut-66iso-2-64
EF-MSS1488C-0610

EF-MSS1488C-0610 – End Fittings – Straight – Male “O”-Ring Seal to Hose (Stainless Steel/Monel)

Print Icon Print Download Icon Download PDF
( End Fitting - Straight )

Description:

Equal to Aeroquip P/N 411-190911,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-MSS1488C-0610
  • Hydrasearch Drawing Number: C19304
  • IPS Size: 3/8
  • T Thread CL-3A: 1-3/8”-12
  • A: 2.73
  • C: 1.44
  • D: 1.43
  • G: 1.12
  • M: .62
  • Est. Wt. (lbs.): .60

Specification Table

Part NumberEF-MSS1488C-0610
Hydrasearch Drawing NumberC19304
IPS Size3/8
T Thread CL-3A1-3/8”-12
A2.73
C1.44
D1.43
G1.12
M.62
Est. Wt. (lbs.).60

Components Table

DescriptionReq’d per Ass’y06100812Material
Nipple1C19016-2C19017-2Stainless Steel
Socket1C18987-2C18988-2Monel
