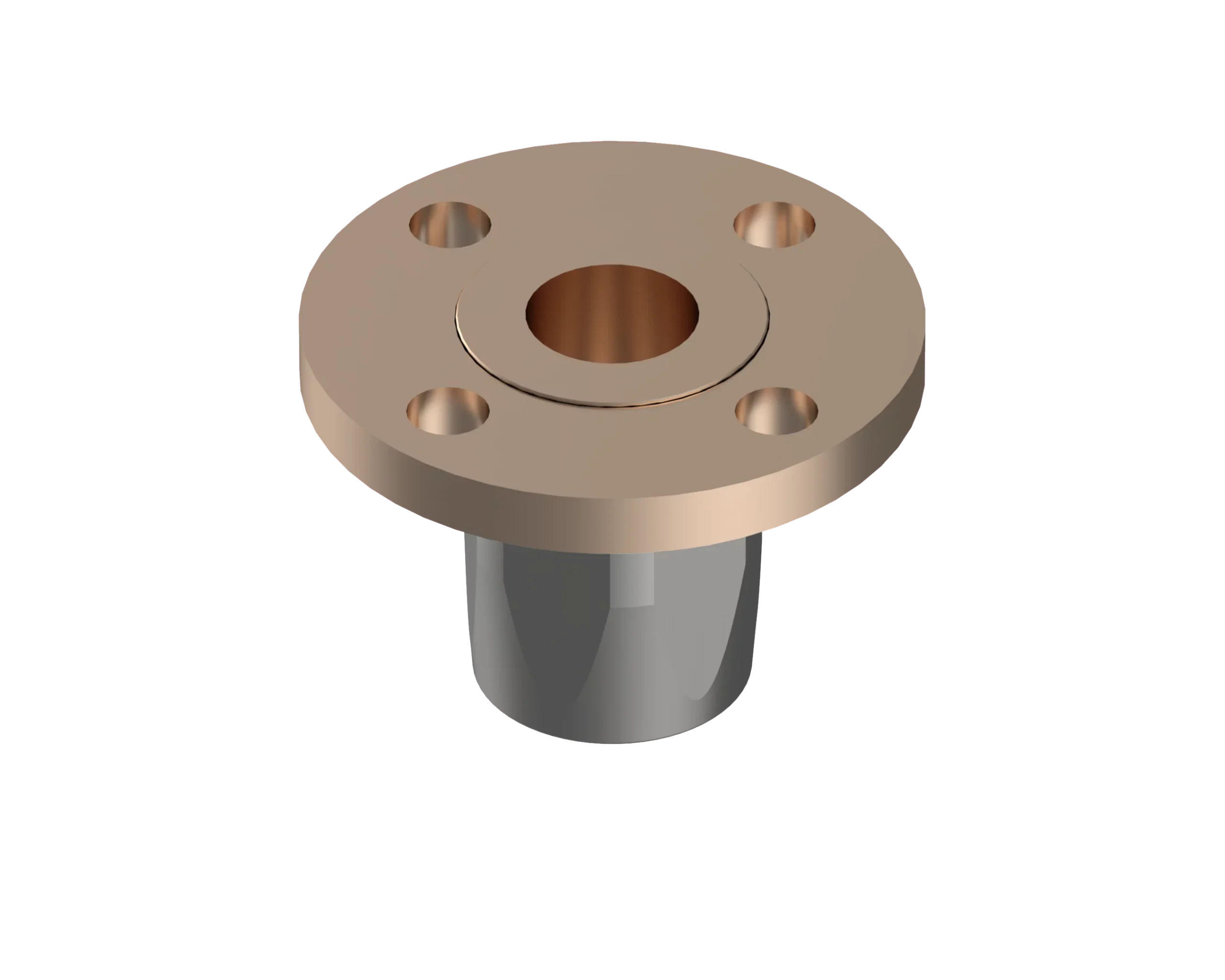

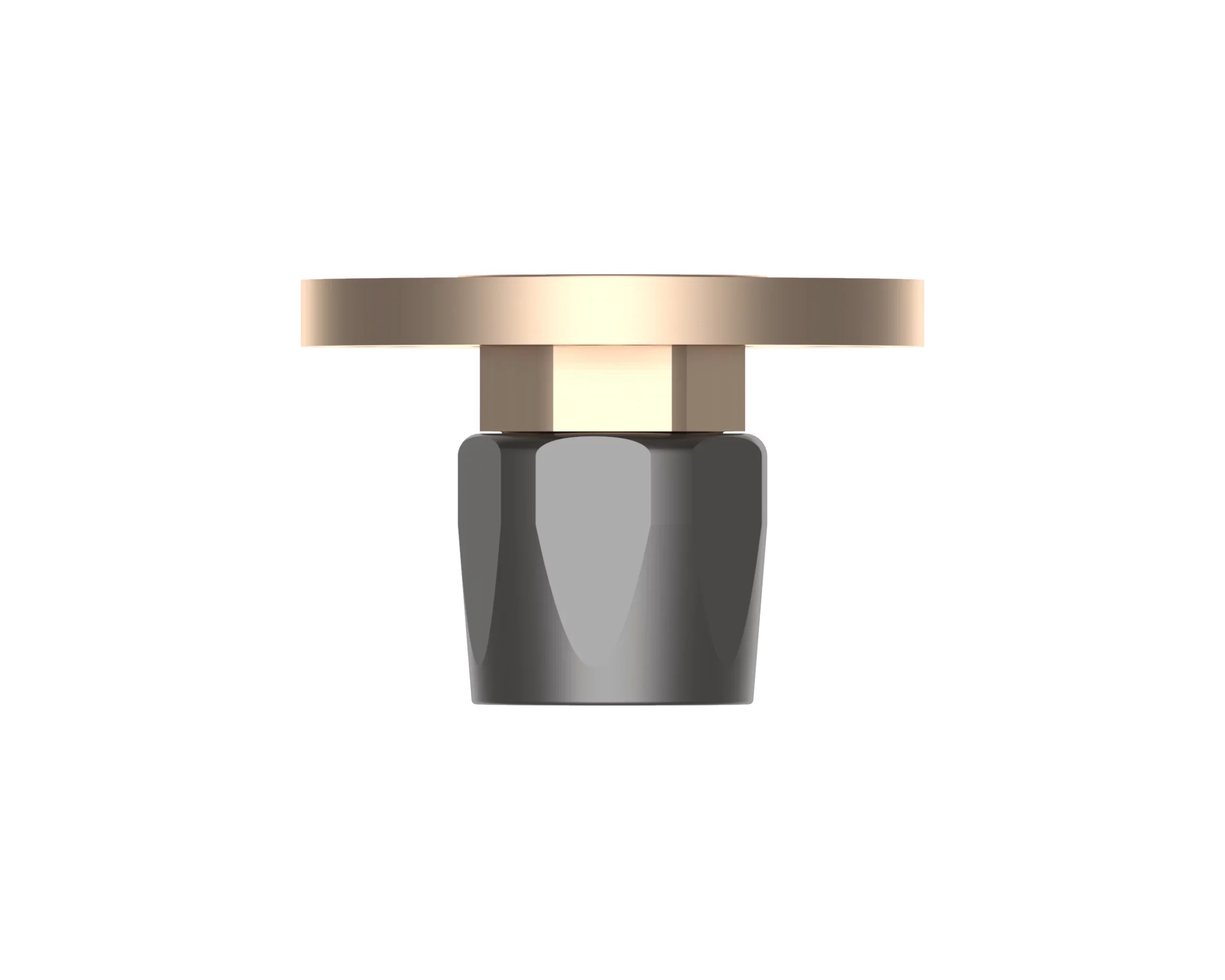

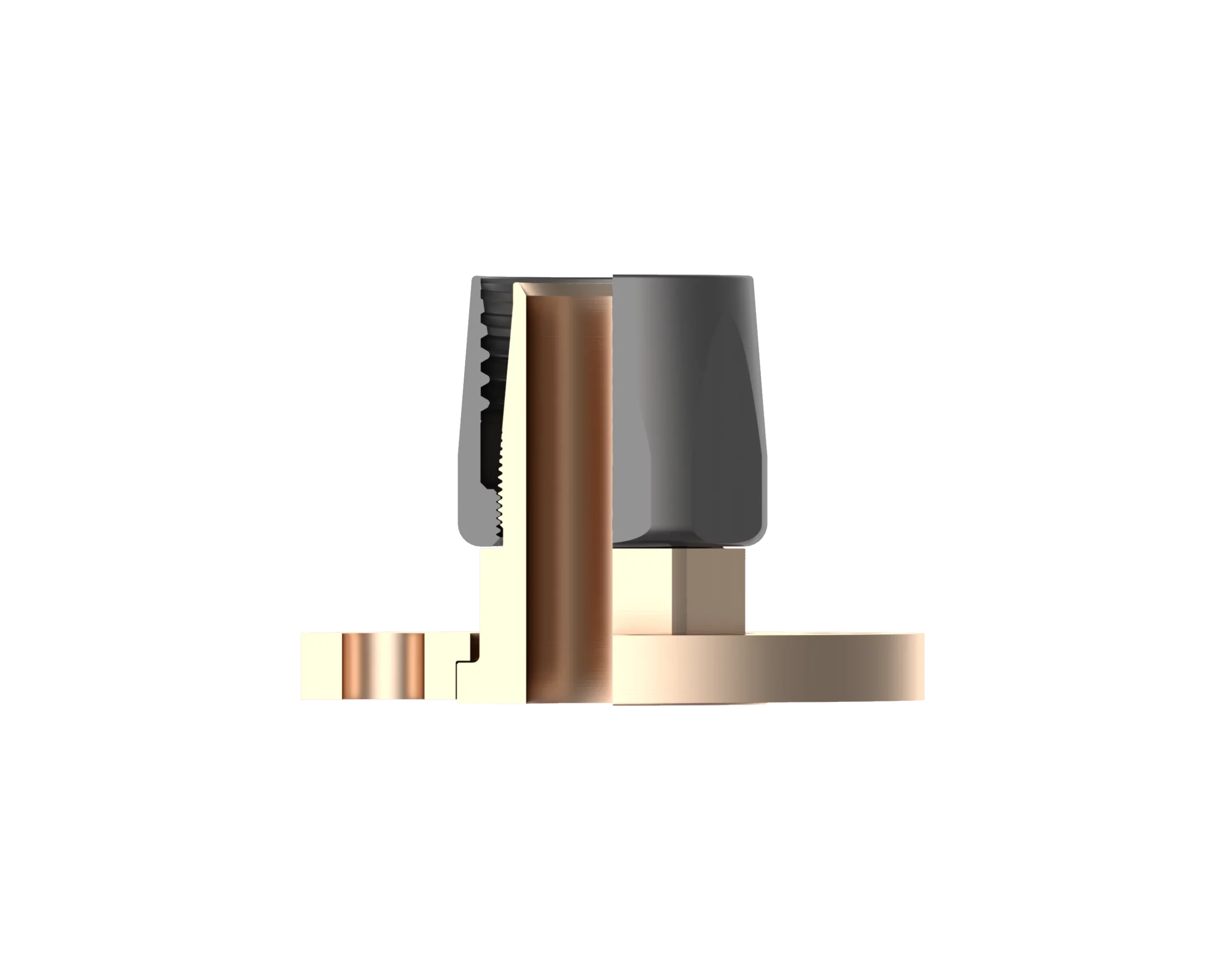

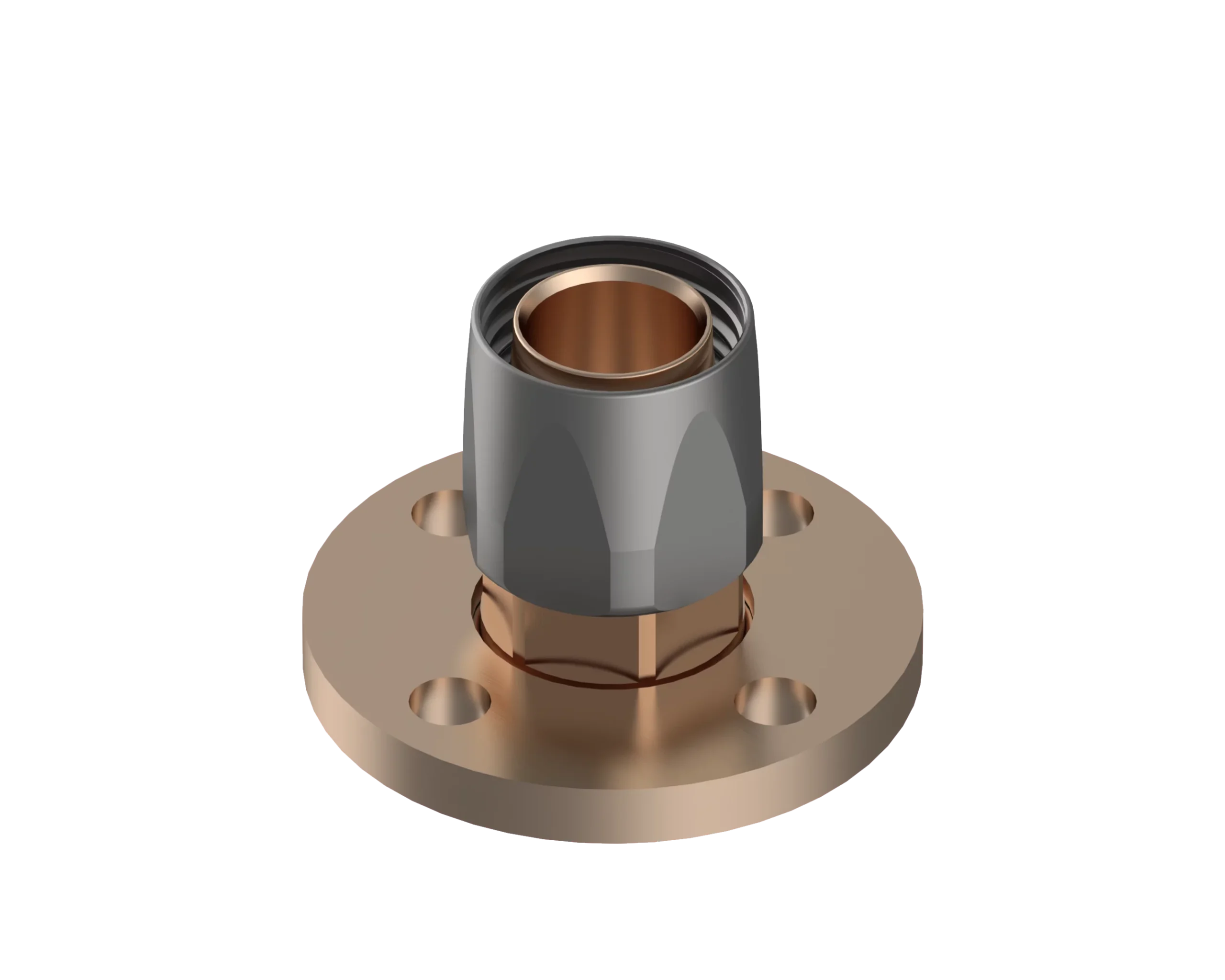

EF-MB1488F5-0816 – End Fittings – Straight – Flange to Hose Bronze/Monel (150 Lb. Flange per A.N.S.I. B16.5)
EF-MB1488F5-0816 – End Fittings – Straight – Flange to Hose Bronze/Monel (150 Lb. Flange per A.N.S.I. B16.5)iso-1-75std-70q-cut-73iso-2-71
EF-MB1488F5-0816

EF-MB1488F5-0816 – End Fittings – Straight – Flange to Hose Bronze/Monel (150 Lb. Flange per A.N.S.I. B16.5)

Print Icon Print Download Icon Download PDF
( 150lb, End Fitting - Straight )

Description:

Equal to Aeroquip P/N 375-190109,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-MB1488F5-0816
  • Hydrasearch Drawing Number: C21535
  • IPS Size: 1/2
  • No. of Bolt Holes: 4
  • A: 2.80
  • D: 1.53
  • J: 3.50
  • K: 1.50
  • L: 2.38
  • M: .62
  • N: .36
  • S: .71
  • Est. Wt. (lbs.): 1.40

Specification Table

Part NumberEF-MB1488F5-0816
Hydrasearch Drawing NumberC21535
IPS Size1/2
No. of Bolt Holes4
A2.80
D1.53
J3.50
K1.50
L2.38
M.62
N.36
S.71
Est. Wt. (lbs.)1.40

Components Table

DescriptionReq’d per Ass’y08161220162420322432323232404040Material
Nipple1C18018C18019C18020C19155C18808C18808C19170C21572Aluminum. Bronze
Socket1C18667-2C18703-2C18990-2C18662C18662C18662C18991C18991Monel
Flange1C18803C18800C18799C18798C18797C18796C17966C17968Aluminum. Bronze
