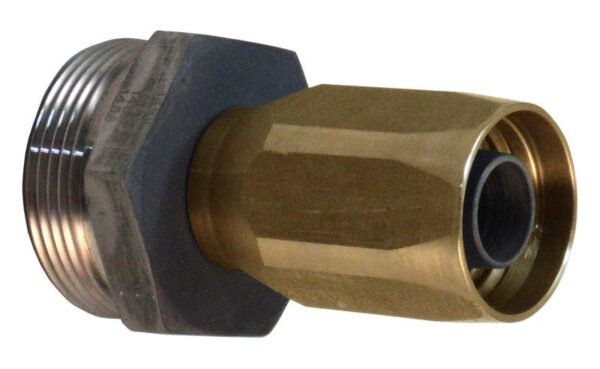

EF-MB1488C-2432 – End Fittings – Straight – Male “O”-Ring Seal to Hose (Monel/Brass)
EF-MB1488C-2432 – End Fittings – Straight – Male “O”-Ring Seal to Hose (Monel/Brass)
EF-MB1488C-2432

EF-MB1488C-2432 – End Fittings – Straight – Male “O”-Ring Seal to Hose (Monel/Brass)

Print Icon Print Download Icon Download PDF

Specification

  • Applicable Hoses: Synthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
  • Component 1: Required per Assembly – 1 Description – Nipple Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 C19259
  • Component 2: Required per Assembly – 1 Description – Socket C18662 Material – Monel in accordance with QQ-N-281
  • M: '0.88
  • V: '2.25
  • A: '3.78
  • B: '0.75
  • C: '3.12
  • D: '2.04
  • E: '1.38
  • G: '2.50
  • Equal To Aeroquip No : '67-190911-1 1/2-32 375-190911-1 1/2-32
  • Approx Weight Per In Lbs: '4.1
  • Hydrasearch Drawing Number: C19326
  • IPS Size: '1-1/2
  • NSN No.: 4730-01-498-2717
  • Thread Size T Br Thread Cl 3A: '3-1/16"-12

Specification Table

Applicable HosesSynthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
Component 1Required per Assembly – 1 Description – Nipple Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 C19259
Component 2Required per Assembly – 1 Description – Socket C18662 Material – Monel in accordance with QQ-N-281
M'0.88
V'2.25
A'3.78
B'0.75
C'3.12
D'2.04
E'1.38
G'2.50
Equal To Aeroquip No '67-190911-1 1/2-32 375-190911-1 1/2-32
Approx Weight Per In Lbs'4.1
Hydrasearch Drawing NumberC19326
IPS Size'1-1/2
NSN No.4730-01-498-2717
Thread Size T Br Thread Cl 3A'3-1/16"-12
