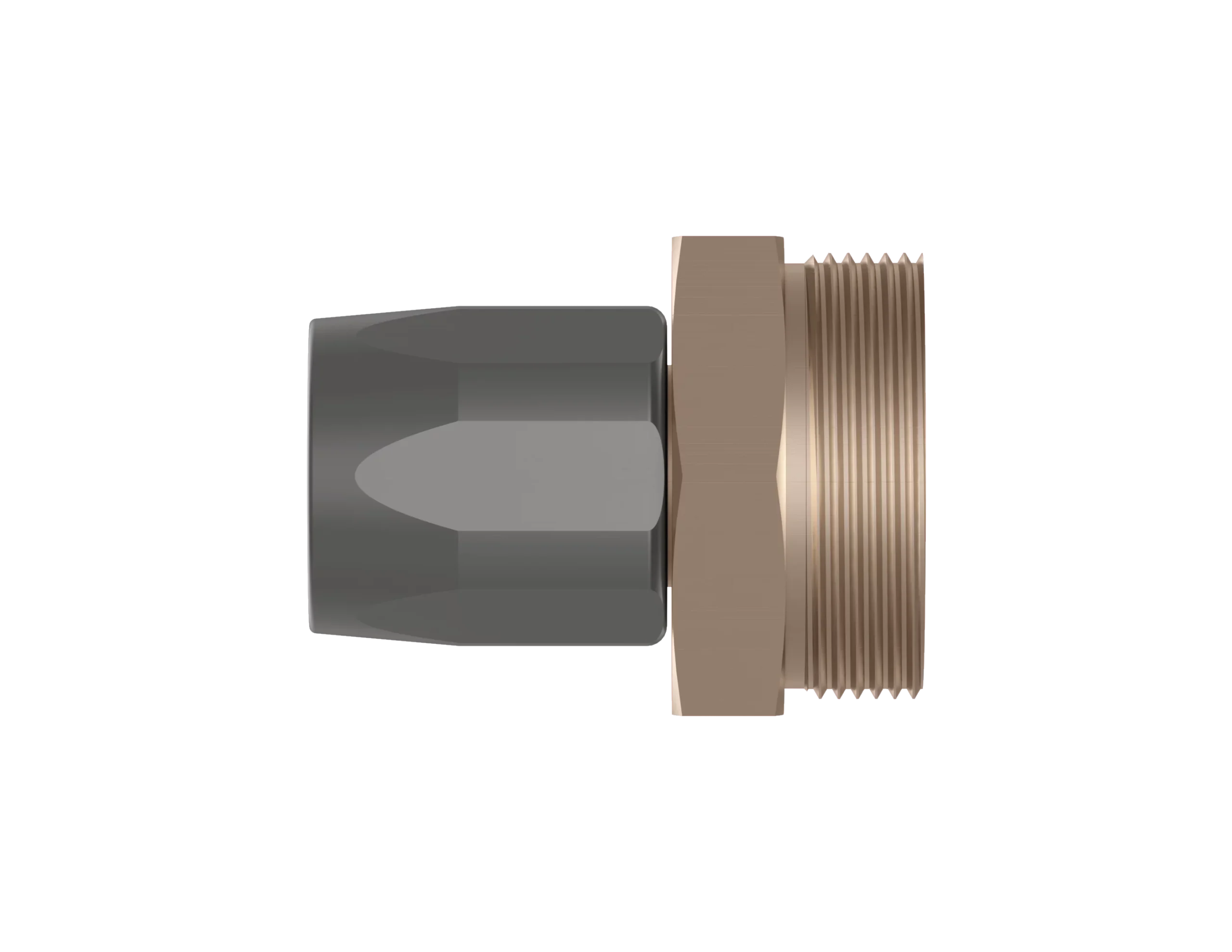

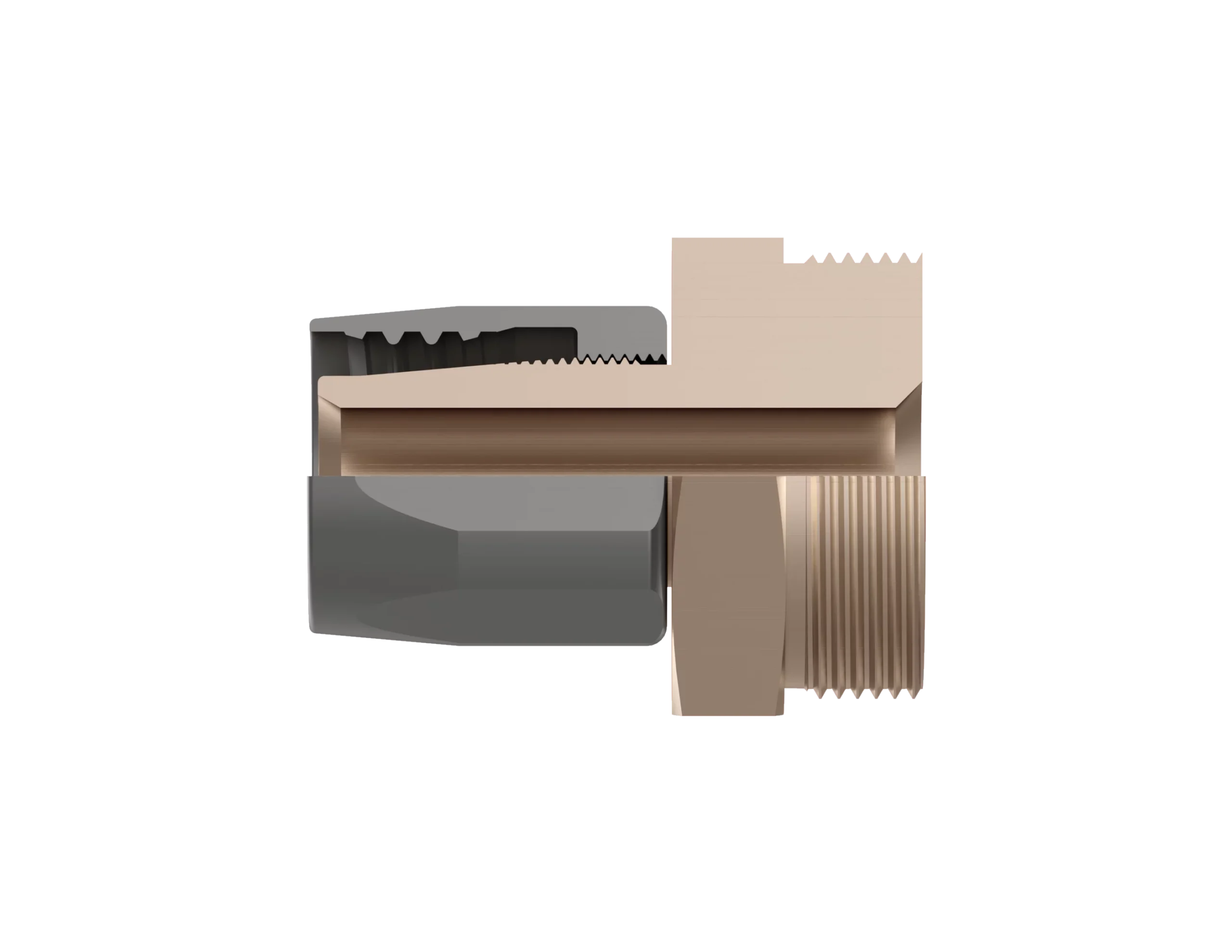

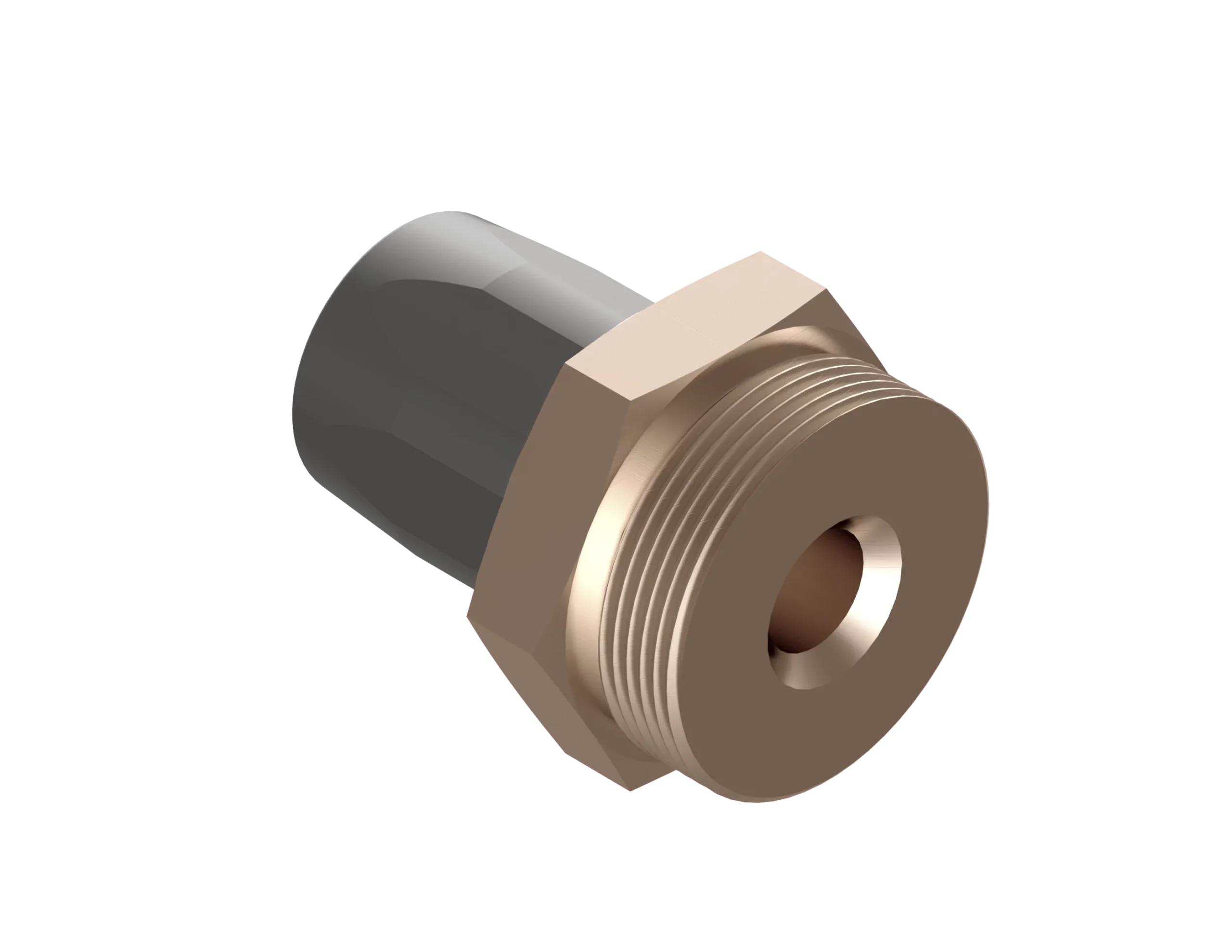

( End Fitting - Straight )

Description:

Equal to Aeroquip P/N 375-190911,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-MB1488C-2024
  • Hydrasearch Drawing Number: C19325
  • IPS Size: 1.25
  • T Thread CL-2A: 2-3/4”-12
  • A: 3.22
  • C: 2.88
  • D: 1.77
  • G: 2.00
  • M: .75
  • Est. Wt. (lbs.): 2.90

Specification Table

Part NumberEF-MB1488C-2024
Hydrasearch Drawing NumberC19325
IPS Size1.25
T Thread CL-2A2-3/4”-12
A3.22
C2.88
D1.77
G2.00
M.75
Est. Wt. (lbs.)2.90

Components Table

DescriptionReq’d per Ass’y1216162020242432Material
Nipple1C19256-1C19257C19258C19259Aluminum. Bronze
Socket1C18667-2C18703-2C18990-2C18662Monel
