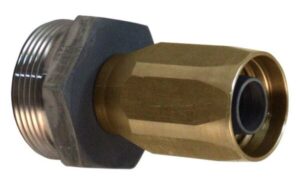

EF-MB1488C-1216 – End Fittings – Straight – Male “O”-Ring Seal to Hose (Monel/Brass)
EF-MB1488C-1216 – End Fittings – Straight – Male “O”-Ring Seal to Hose (Monel/Brass)
EF-MB1488C-1216

EF-MB1488C-1216 – End Fittings – Straight – Male “O”-Ring Seal to Hose (Monel/Brass)

Print Icon Print Download Icon Download PDF

Specification

  • Applicable Hoses: Synthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
  • Component 1: Required per Assembly – 1 Description – Nipple Material – Aluminum Bronze in accordance with ASTM B505 C95400 C19256-1
  • Component 2: Required per Assembly – 1 Description – Socket C18667-2 Material – Monel in accordance with QQ-N-281
  • M: '0.62
  • V: '1.60
  • A: '2.72
  • B: '0.50
  • C: '2.12
  • D: '1.52
  • E: '0.61
  • G: '1.44
  • Equal To Aeroquip No : '67-190911-3/4-16 375-190911-3/4-16
  • Approx Weight Per In Lbs: 1.5
  • Hydrasearch Drawing Number: C19323
  • IPS Size: '3/4
  • NSN No.: 4730-00-064-8254 4730-01-314-8819
  • Thread Size T Br Thread Cl 3A: '2"-12

Specification Table

Applicable HosesSynthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
Component 1Required per Assembly – 1 Description – Nipple Material – Aluminum Bronze in accordance with ASTM B505 C95400 C19256-1
Component 2Required per Assembly – 1 Description – Socket C18667-2 Material – Monel in accordance with QQ-N-281
M'0.62
V'1.60
A'2.72
B'0.50
C'2.12
D'1.52
E'0.61
G'1.44
Equal To Aeroquip No '67-190911-3/4-16 375-190911-3/4-16
Approx Weight Per In Lbs1.5
Hydrasearch Drawing NumberC19323
IPS Size'3/4
NSN No.4730-00-064-8254 4730-01-314-8819
Thread Size T Br Thread Cl 3A'2"-12
