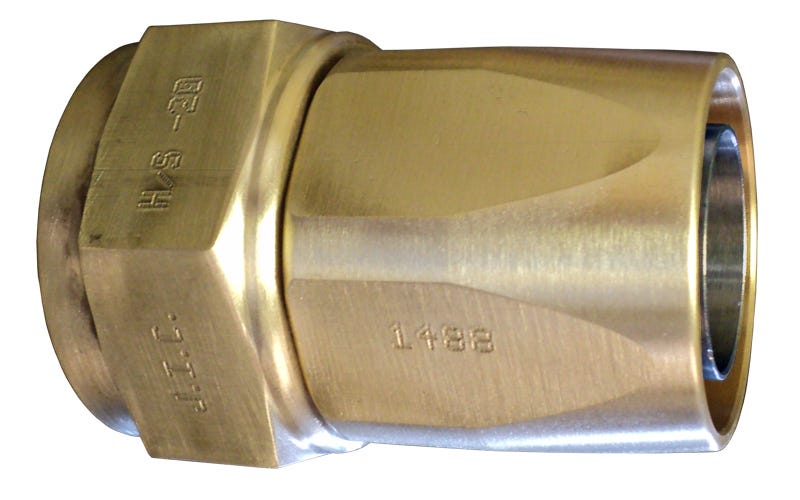

EF-MB1488A-1616 – End Fittings – Straight – S.A.E. 37º Female Swivel (J.I.C.) to Hose (Monel/Brass)
EF-MB1488A-1616 – End Fittings – Straight – S.A.E. 37º Female Swivel (J.I.C.) to Hose (Monel/Brass)
EF-MB1488A-1616

EF-MB1488A-1616 – End Fittings – Straight – S.A.E. 37º Female Swivel (J.I.C.) to Hose (Monel/Brass)

Print Icon Print Download Icon Download PDF

Specification

  • Applicable Hoses: Synthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
  • Component 1: Required per Assembly – 1 Description – Nipple B18668-2 Material – Monel in accordance with QQ-N-281
  • Component 2: Required per Assembly – 1 Description – Socket C18667-1 Material – Brass in accordance with ASTM B16 C36000
  • Component 3: Required per Assembly – 1 Description – Nut B18673-1 Material – Brass in accordance with ASTM B16 C36000
  • M: '0.60
  • V: '1.60
  • A: '2.73
  • B: '1.09
  • C: '1-1/2
  • D: '1.69
  • E: '0.82
  • G: '1.44
  • Equal To Aeroquip No : '23-411-16
  • Approx Weight Per In Lbs: '0.7
  • Hydrasearch Drawing Number: C19290
  • IPS Size: '1
  • Thread Size T Br Thread Cl 2B: '1-5/16"-12

Specification Table

Applicable HosesSynthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
Component 1Required per Assembly – 1 Description – Nipple B18668-2 Material – Monel in accordance with QQ-N-281
Component 2Required per Assembly – 1 Description – Socket C18667-1 Material – Brass in accordance with ASTM B16 C36000
Component 3Required per Assembly – 1 Description – Nut B18673-1 Material – Brass in accordance with ASTM B16 C36000
M'0.60
V'1.60
A'2.73
B'1.09
C'1-1/2
D'1.69
E'0.82
G'1.44
Equal To Aeroquip No '23-411-16
Approx Weight Per In Lbs'0.7
Hydrasearch Drawing NumberC19290
IPS Size'1
Thread Size T Br Thread Cl 2B'1-5/16"-12
