EF-LFS-48

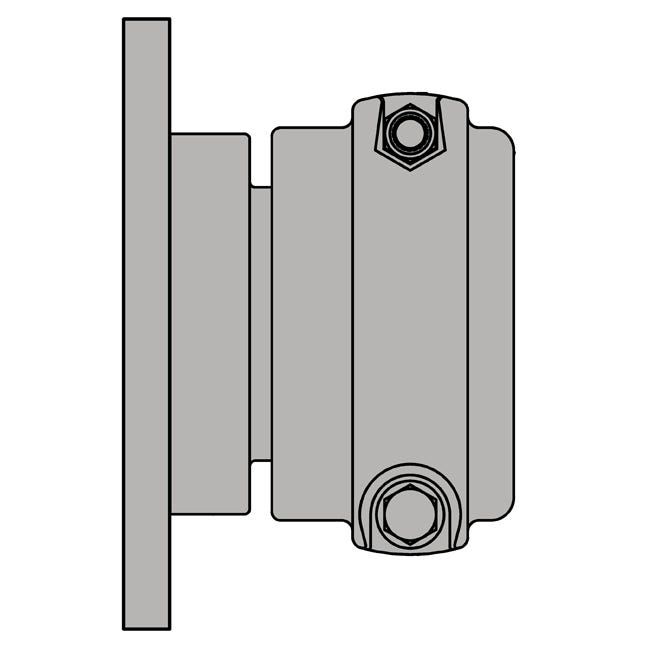

EF-LFS-48 – End Fittings – Straight – Hose to Hose (150 Lb. Flange per MIL-PRF-20042)
Print
Download PDF
Specification
Specification Table
| Applicable Hoses | Polyester reinforced polyurethane hose P/N HSSA |
|---|---|
| Component 1 | Required per Assembly – 1 Description – Swivel Flange C17933 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 |
| Component 2 | Description – Nipple Required per Assembly – 1 C18298 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 |
| Component 3 | Required per Assembly – 2 Description – Segment D18261 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 |
| Component 4 | Description – Bolt B17673-1-MP Required per Assembly – 2 Material – Monel in accordance with QQ-N-286 |
| Component 5 | Description – Nut B18176-MP Required per Assembly – 2 Material – Monel in accordance with QQ-N-281 |
| Component 6 | Description – Washer B18175-MP Required per Assembly – 2 Material – Monel in accordance with QQ-N-281 |
| Component 6A | C18278-4 Description – Gasket Required per Assembly – 1 Material – Nitrile |
| H | 1/2'' |
| J | 2.62'' |
| A | 4.41'' |
| B | 5.50'' |
| C | 3.810'' |
| D | 2'' |
| E | 6.62'' |
| F | 5.50'' |
| G | 0.56'' |
| Approx Weight Per In Lbs | 13 |
| Hydrasearch Drawing Number | C18278 |
| IPS Size | 3'' |
| No Of Bolts | 8'' |
