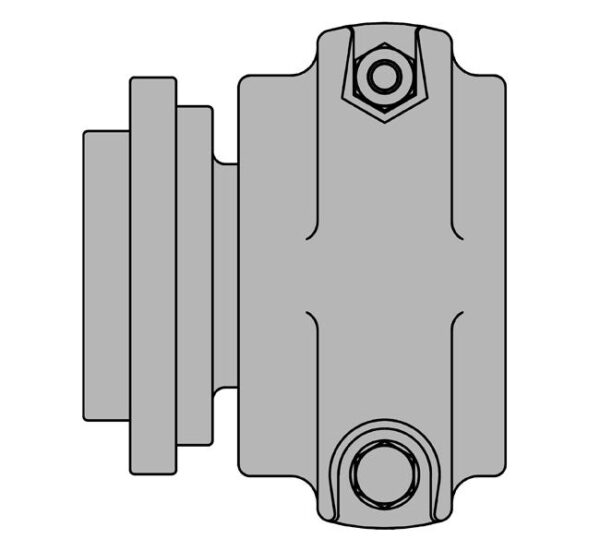

EF-LFS-24MS – End Fittings – Straight – Male Split Clamp to Hose
EF-LFS-24MS – End Fittings – Straight – Male Split Clamp to Hose
EF-LFS-24MS

EF-LFS-24MS – End Fittings – Straight – Male Split Clamp to Hose

Print Icon Print Download Icon Download PDF

Specification

  • Applicable Hoses: Polyester reinforced polyurethane hose P/N HSSA
  • Component 1: Required per Assembly – 1 Description – Nipple C18304 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
  • Component 2: Required per Assembly – 2 Description – Segment C18259 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
  • Component 3: Required per Assembly – 2 Description – Bolt B17673-1-MP Material – Monel in accordance with QQ-N-286
  • Component 4: Description – Nut Required per Assembly – 2 B18176-MP Material – Monel in accordance with QQ-N-281
  • Component 5: Description – Washer Required per Assembly – 2 B18175-MP Material – Monel in accordance with QQ-N-281
  • Component 5A: C18280-6 Description – Gasket Required per Assembly – 1 Material – Buna-N
  • A: '3.68
  • B: '3.50
  • C: '2.35
  • D: '1.44
  • E: '2.62
  • Approx Weight Per In Lbs: 5
  • Hydrasearch Drawing Number: C18281
  • IPS Size: '1-1/2

Specification Table

Applicable HosesPolyester reinforced polyurethane hose P/N HSSA
Component 1Required per Assembly – 1 Description – Nipple C18304 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
Component 2Required per Assembly – 2 Description – Segment C18259 Material – Aluminum Bronze in accordance with MIL-B-24480 C95800
Component 3Required per Assembly – 2 Description – Bolt B17673-1-MP Material – Monel in accordance with QQ-N-286
Component 4Description – Nut Required per Assembly – 2 B18176-MP Material – Monel in accordance with QQ-N-281
Component 5Description – Washer Required per Assembly – 2 B18175-MP Material – Monel in accordance with QQ-N-281
Component 5AC18280-6 Description – Gasket Required per Assembly – 1 Material – Buna-N
A'3.68
B'3.50
C'2.35
D'1.44
E'2.62
Approx Weight Per In Lbs5
Hydrasearch Drawing NumberC18281
IPS Size'1-1/2
