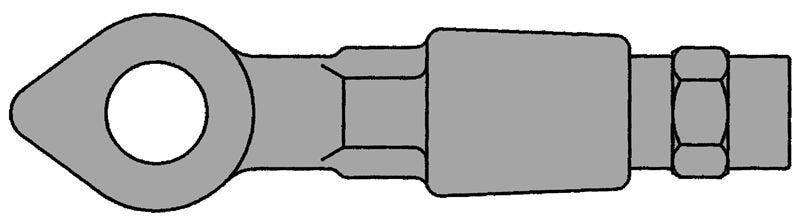

EF-IH/OH-0.75 – End Fittings – Inhaul/Outhaul with Eye Adapter
EF-IH/OH-0.75 – End Fittings – Inhaul/Outhaul with Eye Adapterendfittings-inhaulouthaulwitheyeadaptera1777-100x100-1
EF-IH/OH-0.75

EF-IH/OH-0.75 – End Fittings – Inhaul/Outhaul with Eye Adapter

Print Icon Print Download Icon Download PDF

Specification

  • Diameter In: '2.25
  • Equal To Global No: 5184178-0.75
  • Approx Weight Per In Lbs: 2
  • Hydrasearch Drawing Number: B17223
  • Material: Steel
  • Navsea Drawing No: 803-5184179
  • NSN No.: '4030-00-104-9085
  • Wire Rope Size In: 0.75

Specification Table

Diameter In'2.25
Equal To Global No5184178-0.75
Approx Weight Per In Lbs2
Hydrasearch Drawing NumberB17223
Length In-
MaterialSteel
Navsea Drawing No803-5184179
NSN No.'4030-00-104-9085
Wire Rope Size In0.75
