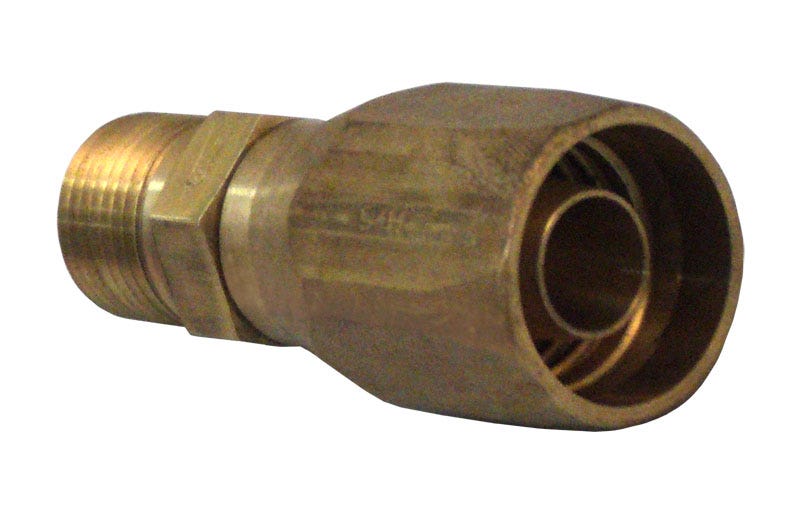

EF-B1488MP-3232 – End Fittings – Straight – Hose to Male NPTF
EF-B1488MP-3232 – End Fittings – Straight – Hose to Male NPTF
EF-B1488MP-3232

EF-B1488MP-3232 – End Fittings – Straight – Hose to Male NPTF

Print Icon Print Download Icon Download PDF

Specification

  • Applicable Hoses: Synthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
  • Component 1: Required per Assembly – 1 Description – Nipple C18026 Material – Brass in accordance with ASTM B16 C36000
  • Component 2: Required per Assembly – 1 Description – Socket C18811 Material – Brass in accordance with ASTM B124 C37700
  • M: '1.03
  • V: '2.25
  • A: '4.03
  • B: '1.16
  • C: '2-1/2
  • D: '2.19
  • E: '1-3/4
  • G: '2.50
  • Equal To Aeroquip No : '412-32-32B
  • Approx Weight Per In Lbs: '2.3
  • Hose Size: '2
  • Hydrasearch Drawing Number: C19151
  • NSN No.: 4730-00-513-7851
  • Thread Size T Br Thread Cl 2B: '2"-11-1/2

Specification Table

Applicable HosesSynthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
Component 1Required per Assembly – 1 Description – Nipple C18026 Material – Brass in accordance with ASTM B16 C36000
Component 2Required per Assembly – 1 Description – Socket C18811 Material – Brass in accordance with ASTM B124 C37700
M'1.03
V'2.25
A'4.03
B'1.16
C'2-1/2
D'2.19
E'1-3/4
G'2.50
Equal To Aeroquip No '412-32-32B
Approx Weight Per In Lbs'2.3
Hose Size'2
Hydrasearch Drawing NumberC19151
NSN No.4730-00-513-7851
Thread Size T Br Thread Cl 2B'2"-11-1/2
