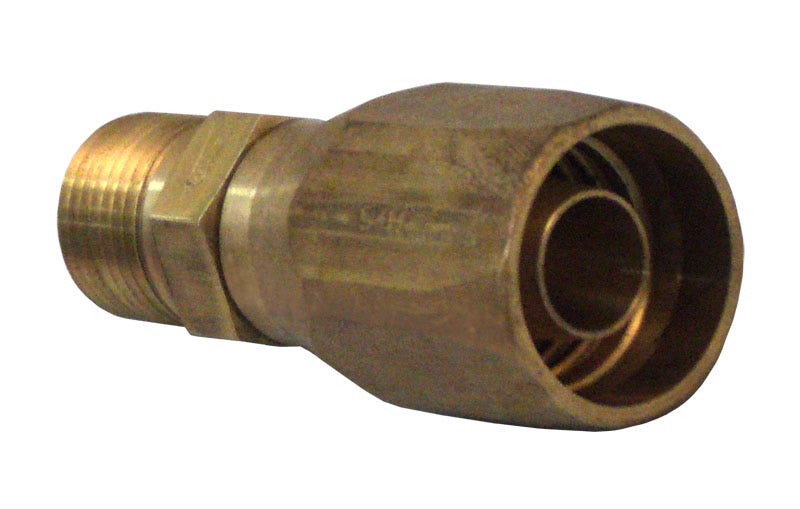

EF-B1488MP-0405 – End Fittings – Straight – Hose to Male NPTF

Print Icon Print Download Icon Download PDF

Description:

Use with the following hose: ER512 & 2580

Specification

  • Applicable Hoses: Synthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
  • Component 1: Required per Assembly – 1 Description – Nipple B19064 Material – Brass in accordance with ASTM B16 C36000
  • Component 2: Required per Assembly – 1 C18984-1 Description – Socket Material – Brass in accordance with ASTM B16 C36000
  • Ref Dimension M In: 0.38''
  • Dim A Hex: 1.68''
  • Dim D Hex In: 0.93''
  • Dim E Hex: 0.17''
  • Equal To Aeroquip No : 412-2-4B''
  • Estimated Weight Per Ft Lbs: 0.08''
  • Hose Size In : 1/4''
  • Hydrasearch Drawing Number: C19142
  • IPS Size: 1-1/4''
  • NSN No.: 4730-00-375-7445
  • Thread Size T Br Thread Cl 2B: 1/8"-27''

Specification Table

Applicable HosesSynthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
Component 1Required per Assembly – 1 Description – Nipple B19064 Material – Brass in accordance with ASTM B16 C36000
Component 2Required per Assembly – 1 C18984-1 Description – Socket Material – Brass in accordance with ASTM B16 C36000
Ref Dimension M In0.38''
Dim A Hex1.68''
Dim C Id In-
Dim D Hex In0.93''
Dim E Hex0.17''
Equal To Aeroquip No 412-2-4B''
Estimated Weight Per Ft Lbs0.08''
Hose Size In 1/4''
Hydrasearch Drawing NumberC19142
IPS Size1-1/4''
NSN No.4730-00-375-7445
Thread Size T Br Thread Cl 2B1/8"-27''
