EF-B1488F4-4048
EF-B1488F4-4048iso-1-109std-86q-cut-91iso-2-96
EF-B1488F4-4048

EF-B1488F4-4048

Print Icon Print Download Icon Download PDF

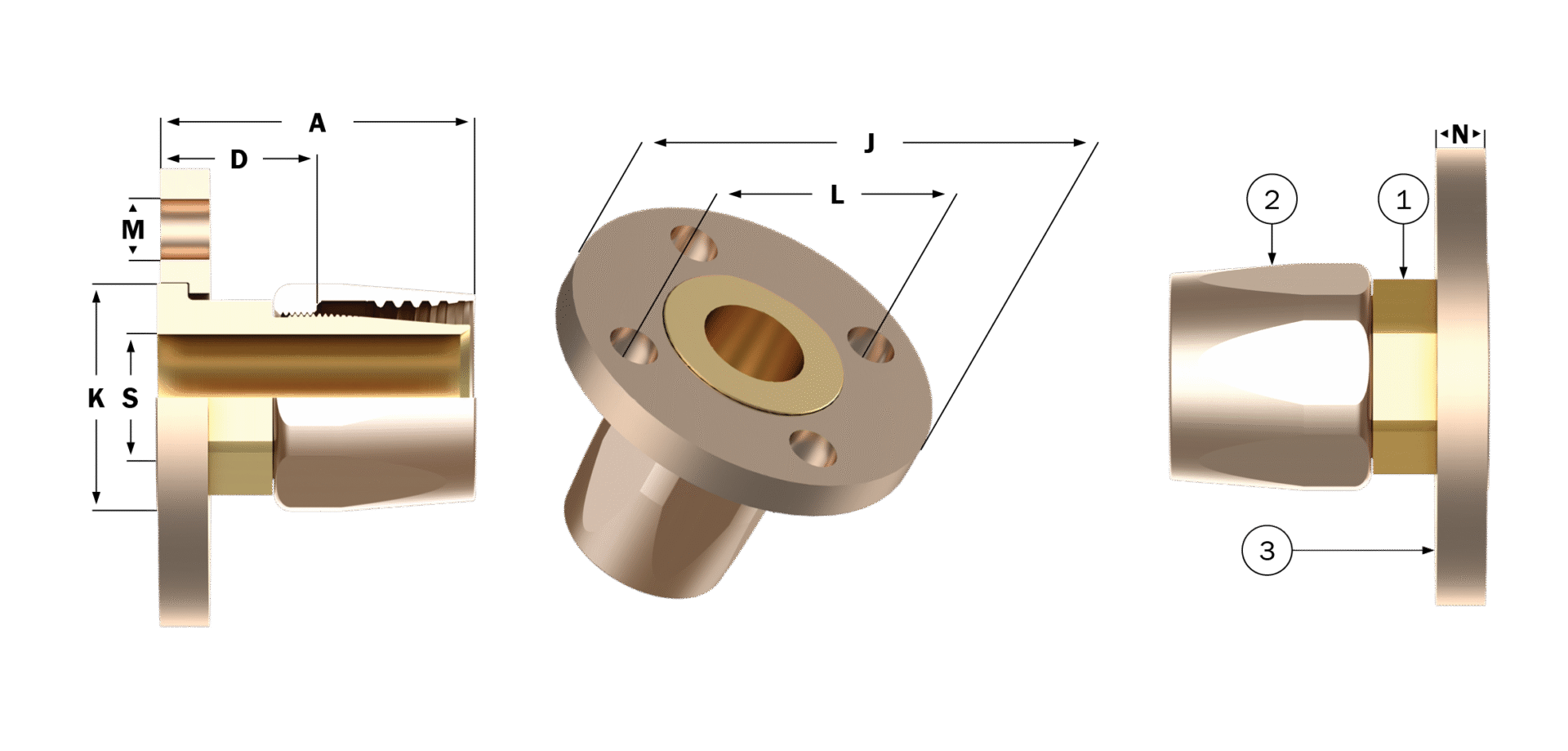

( 150lb, End Fitting - Straight )

Description:

Equal to Aeroquip P/N 66-190016,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-B1488F4-4048
  • Hydrasearch Drawing Number: C19384
  • IPS Size: 2.50
  • No. of Bolt Holes: 6
  • A: 3.89
  • D: 1.98
  • J: 6.13
  • K: 3.78
  • L: 5.00
  • M: .56
  • N: .50
  • S: 2.71
  • Est. Wt. (lbs.): 7.40

Specification Table

Part NumberEF-B1488F4-4048
Hydrasearch Drawing NumberC19384
IPS Size2.50
No. of Bolt Holes6
A3.89
D1.98
J6.13
K3.78
L5.00
M.56
N.50
S2.71
Est. Wt. (lbs.)7.40

Components Table

DescriptionReq’d per Ass’y0816122016242032243232323240404040484848Material
Nipple1C18018C18019C18020C19155C18808C18808C19170C19170C17893C19173Brass
Socket1C18667-1C18703-1C18990-1C18811C18811C18811C18822C18822C17901C17901Aluminum. Bronze
Flange1C18817C18814C18813C18812C18810C18809C17925C17929C17931C17933Aluminum. Bronze
