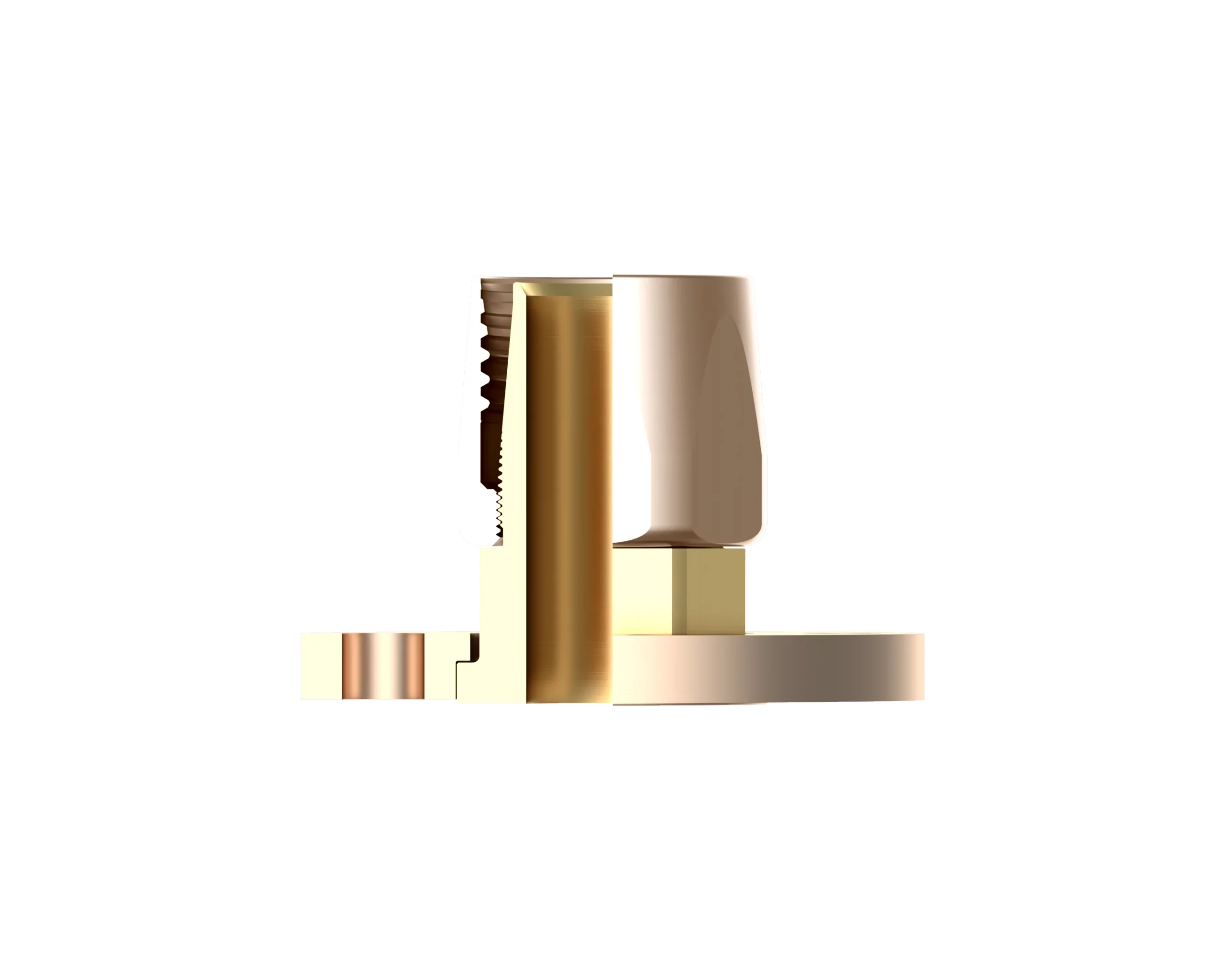

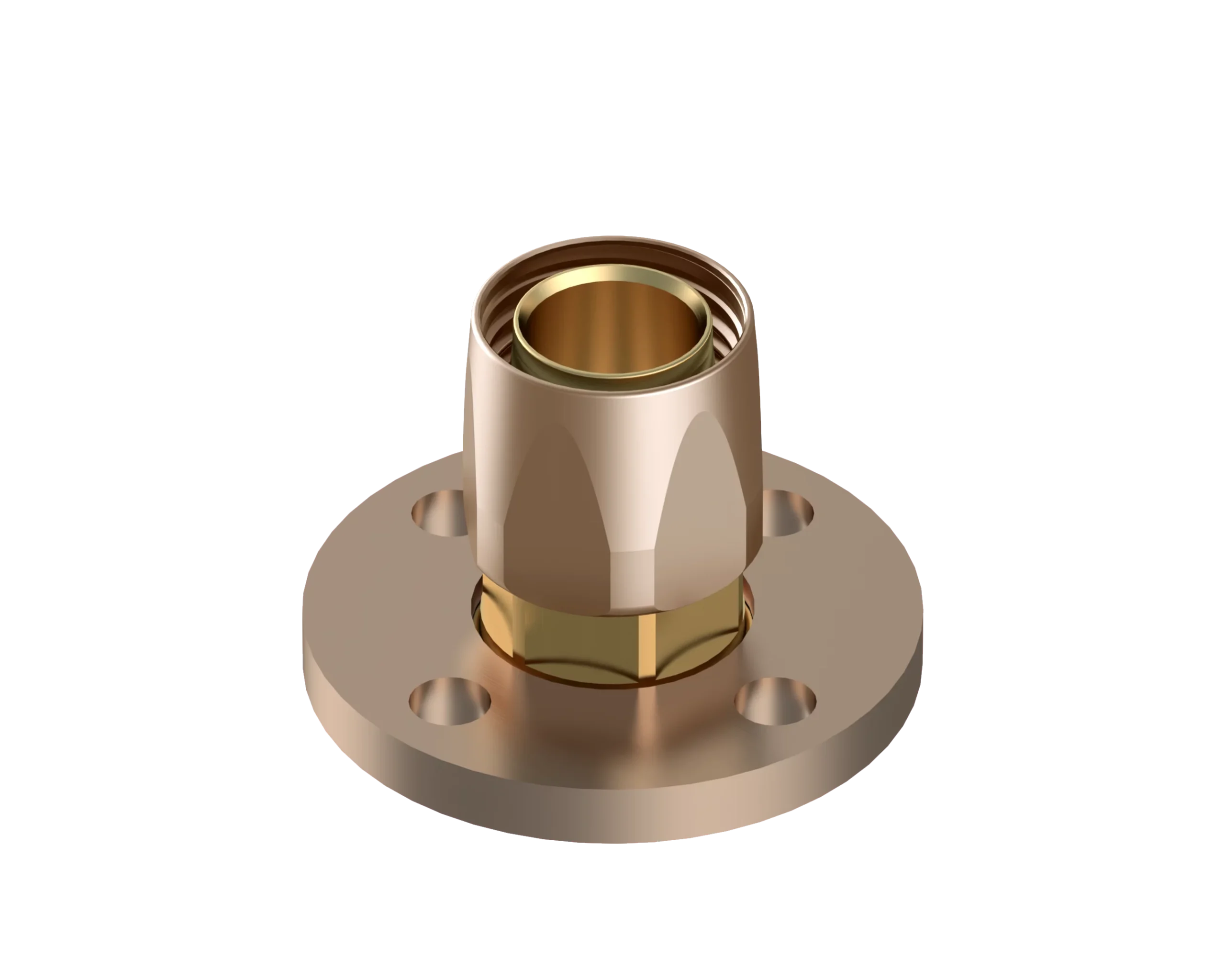

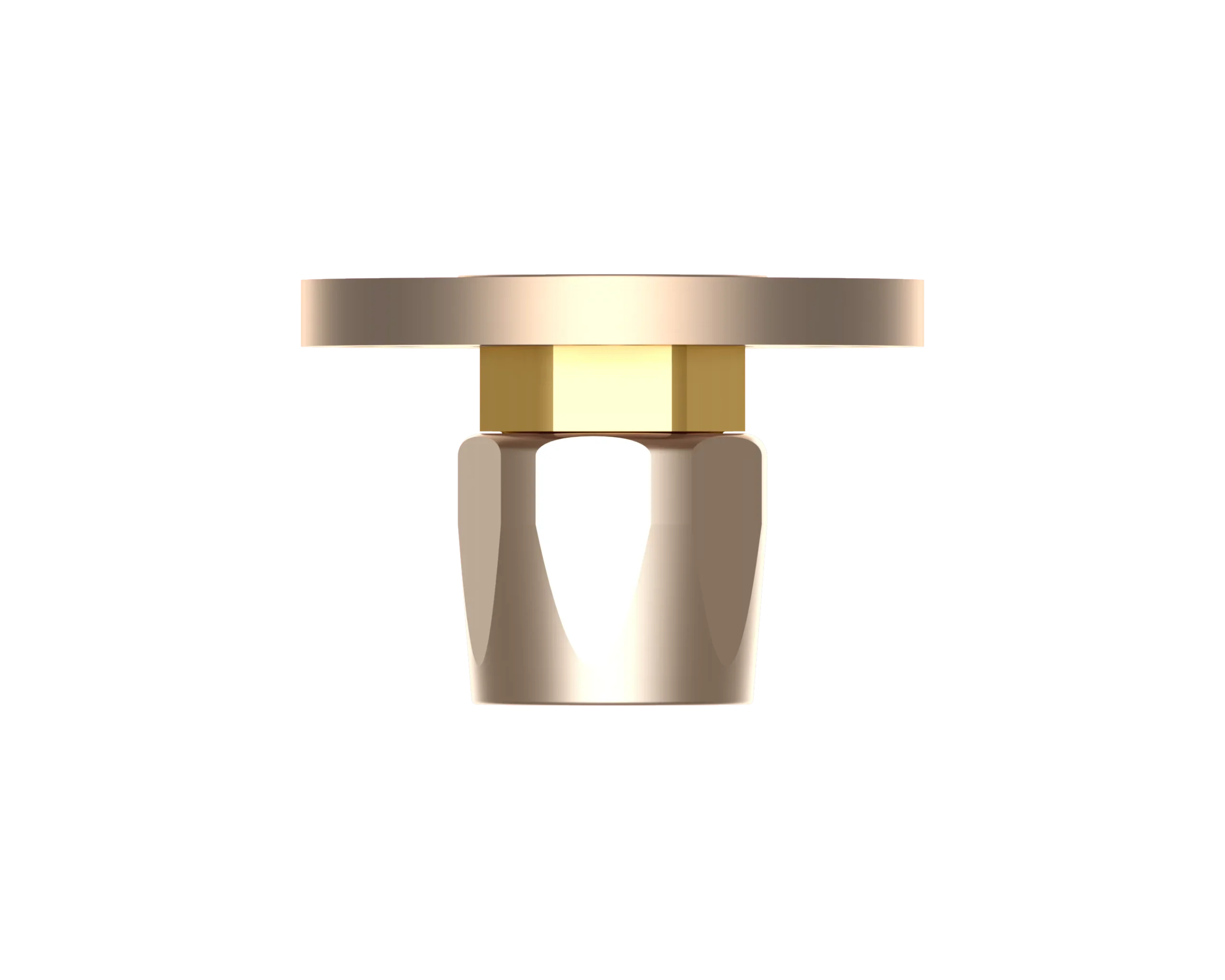

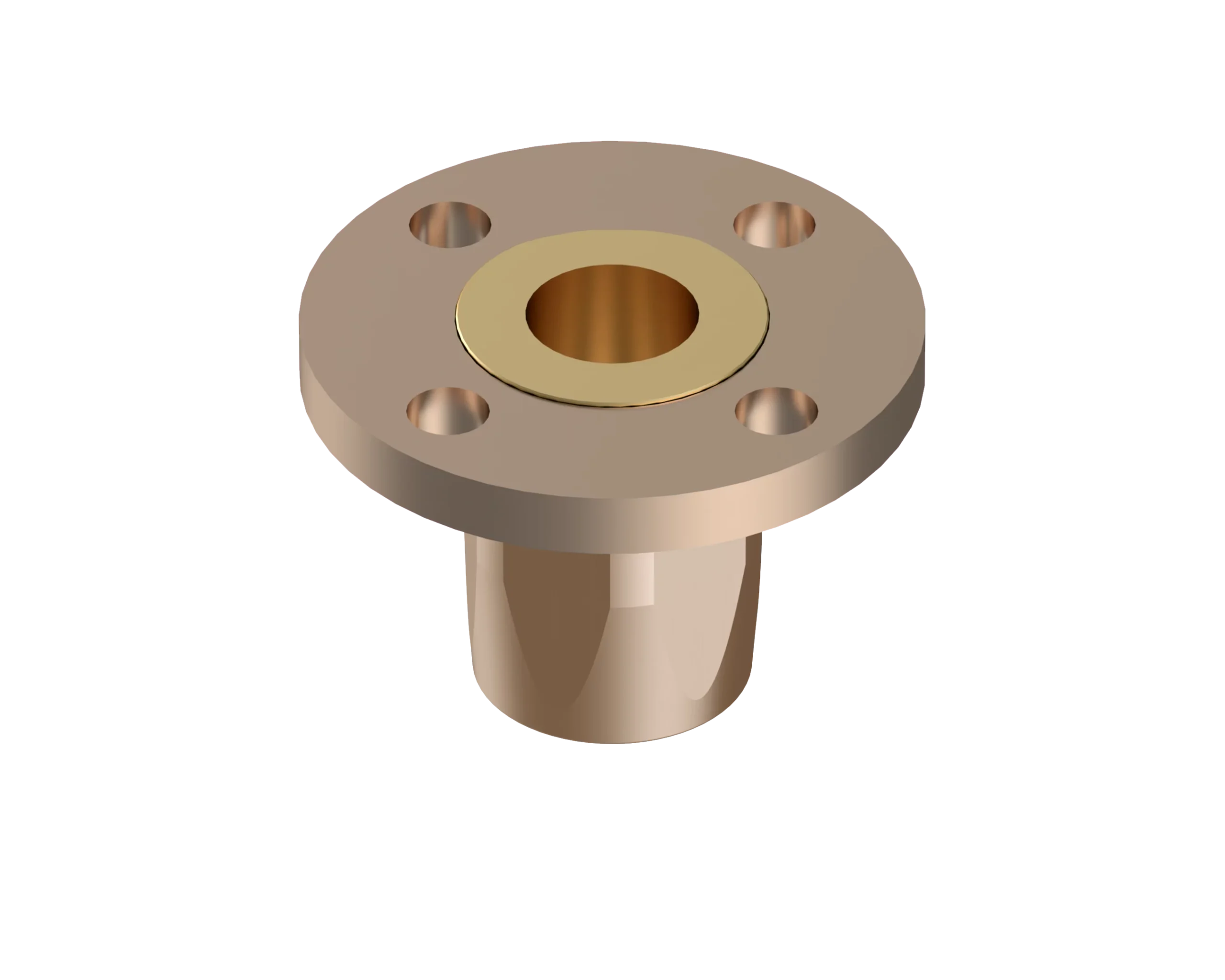

( 150lb, End Fitting - Straight )

Description:

Equal to Aeroquip P/N 66-190016,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-B1488F4-0816
  • Hydrasearch Drawing Number: C19376
  • IPS Size: 1/2
  • No. of Bolt Holes: 3
  • A: 2.72
  • D: 1.52
  • J: 3.56
  • K: 1.50
  • L: 2.44
  • M: .56
  • N: .38
  • S: .71
  • Est. Wt. (lbs.): 1.50

Specification Table

Part NumberEF-B1488F4-0816
Hydrasearch Drawing NumberC19376
IPS Size1/2
No. of Bolt Holes3
A2.72
D1.52
J3.56
K1.50
L2.44
M.56
N.38
S.71
Est. Wt. (lbs.)1.50

Components Table

DescriptionReq’d per Ass’y0816122016242032243232323240404040484848Material
Nipple1C18018C18019C18020C19155C18808C18808C19170C19170C17893C19173Brass
Socket1C18667-1C18703-1C18990-1C18811C18811C18811C18822C18822C17901C17901Aluminum. Bronze
Flange1C18817C18814C18813C18812C18810C18809C17925C17929C17931C17933Aluminum. Bronze
