EF-B1488EF-2432 – End Fittings – Straight – Female Sil-Braze Split Clamp to Hose
EF-B1488EF-2432 – End Fittings – Straight – Female Sil-Braze Split Clamp to Hoseiso-1-110std-87q-cut-92iso-2-97
EF-B1488EF-2432

EF-B1488EF-2432 – End Fittings – Straight – Female Sil-Braze Split Clamp to Hose

Print Icon Print Download Icon Download PDF

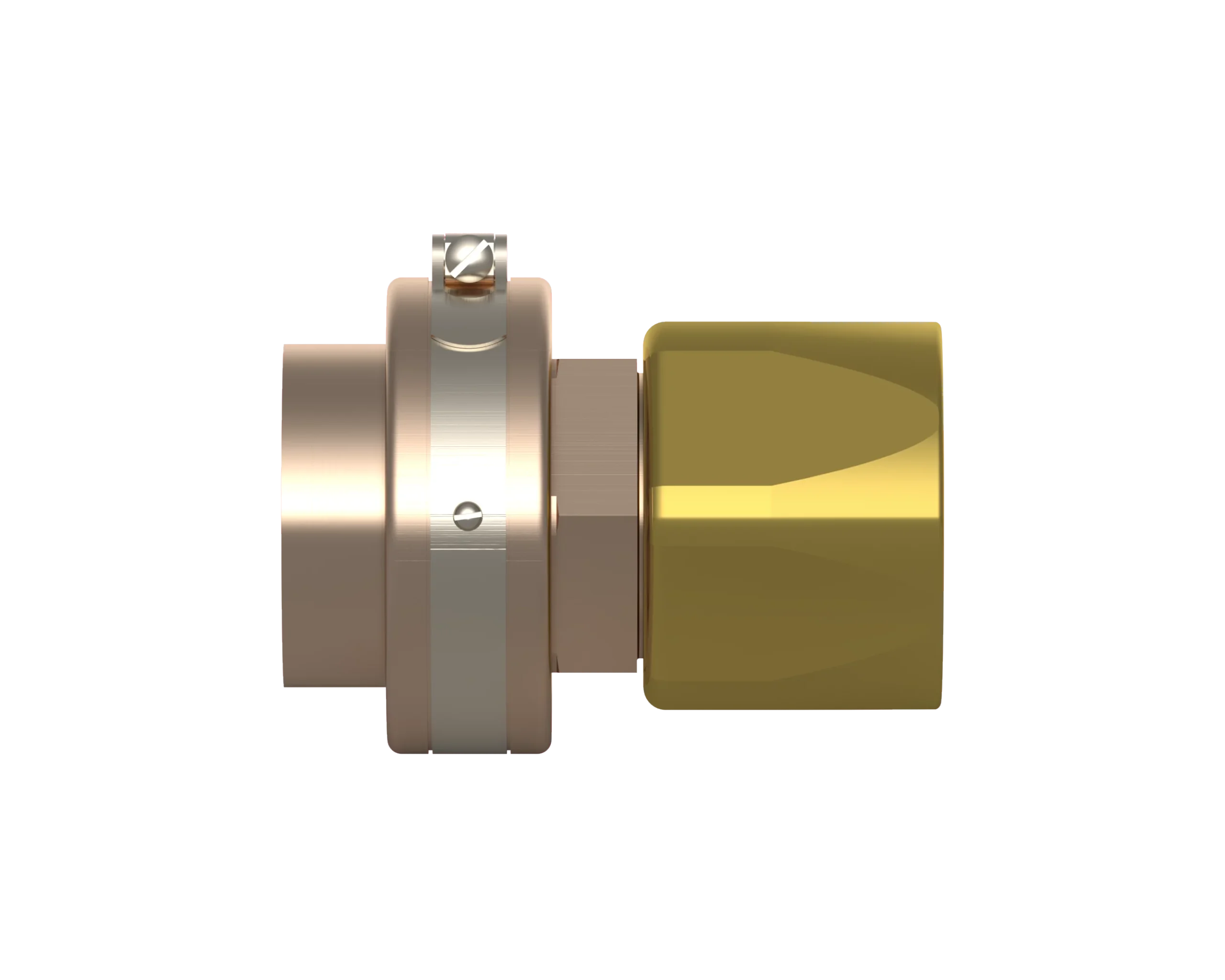

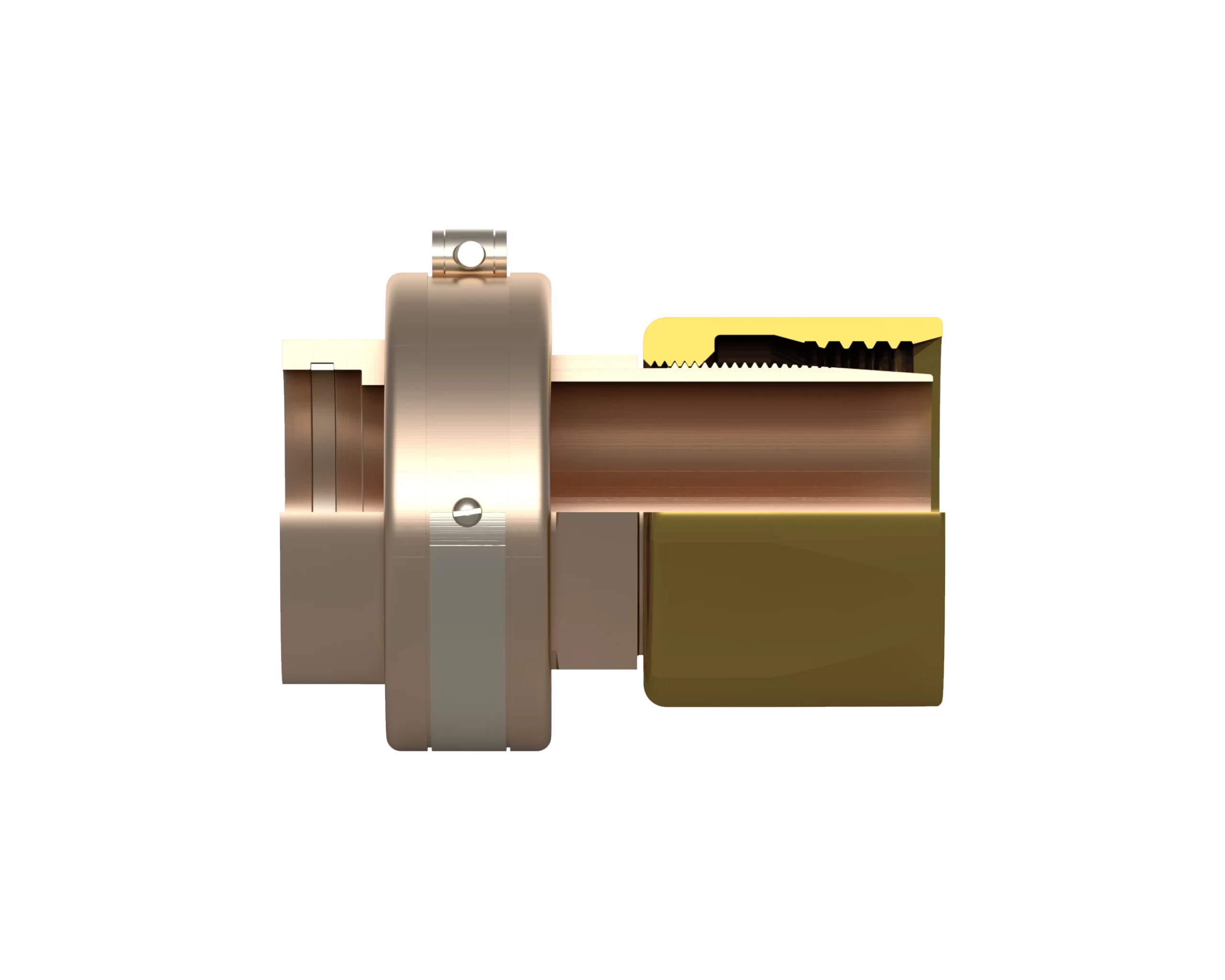

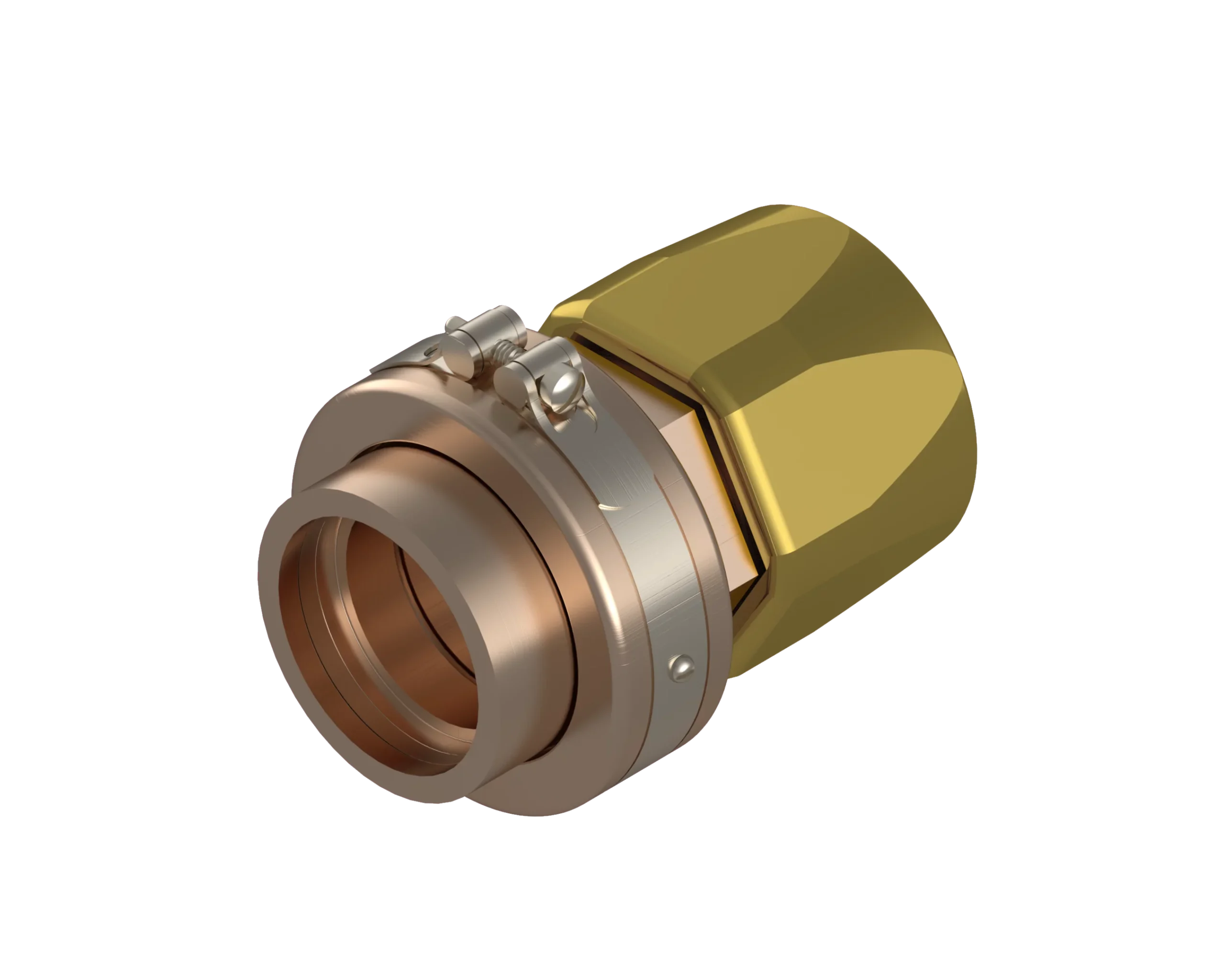

( End Fitting - Straight )

Description:

Equal to Aeroquip P/N FC9424-44,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-B1488EF-2432
  • Hydrasearch Drawing Number: C19418
  • IPS Size: 1.5
  • A: 5.03
  • C: 2.12
  • D: 3.19
  • E: 1.75
  • F: 1.90
  • G: 2.44
  • M: .62
  • V: 2.25
  • Y: .39
  • Z: 3.31
  • Est. Wt. (lbs.): -

Specification Table

Part NumberEF-B1488EF-2432
Hydrasearch Drawing NumberC19418
IPS Size1.5
A5.03
C2.12
D3.19
E1.75
F1.90
G2.44
M.62
V2.25
Y.39
Z3.31
Est. Wt. (lbs.)-

Components Table

DescriptionReq’d per Ass’y2032243232404048Material
Nipple1C19188C19189C19190C19191Aluminum. Bronze
Socket1C18811C18811C18822C17901Brass
Tailpiece1C19193C19194C18083C18084Aluminum. Bronze
Split Clamp1C18160C18294C18078C18079Aluminum. Bronze
