EF-B1488A-4848

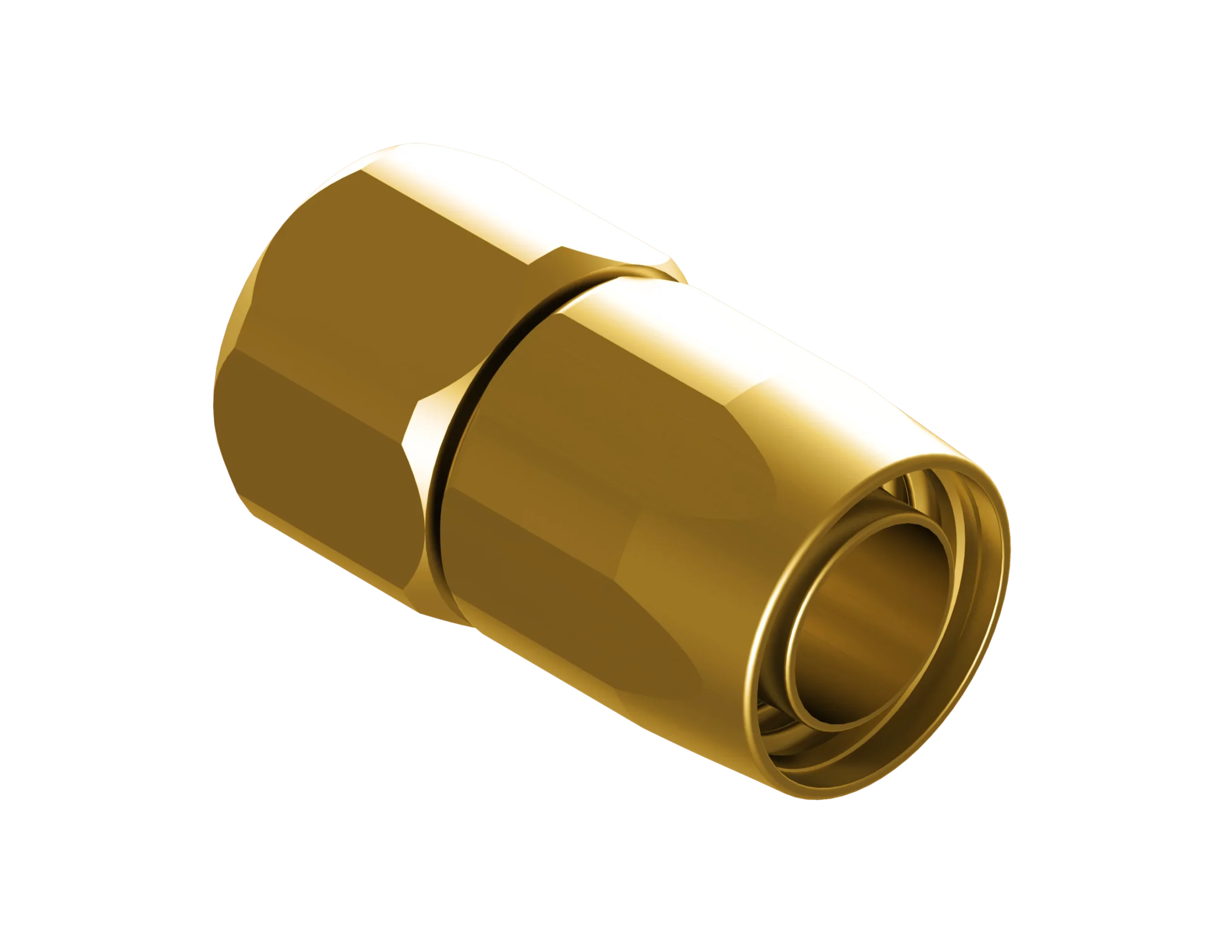

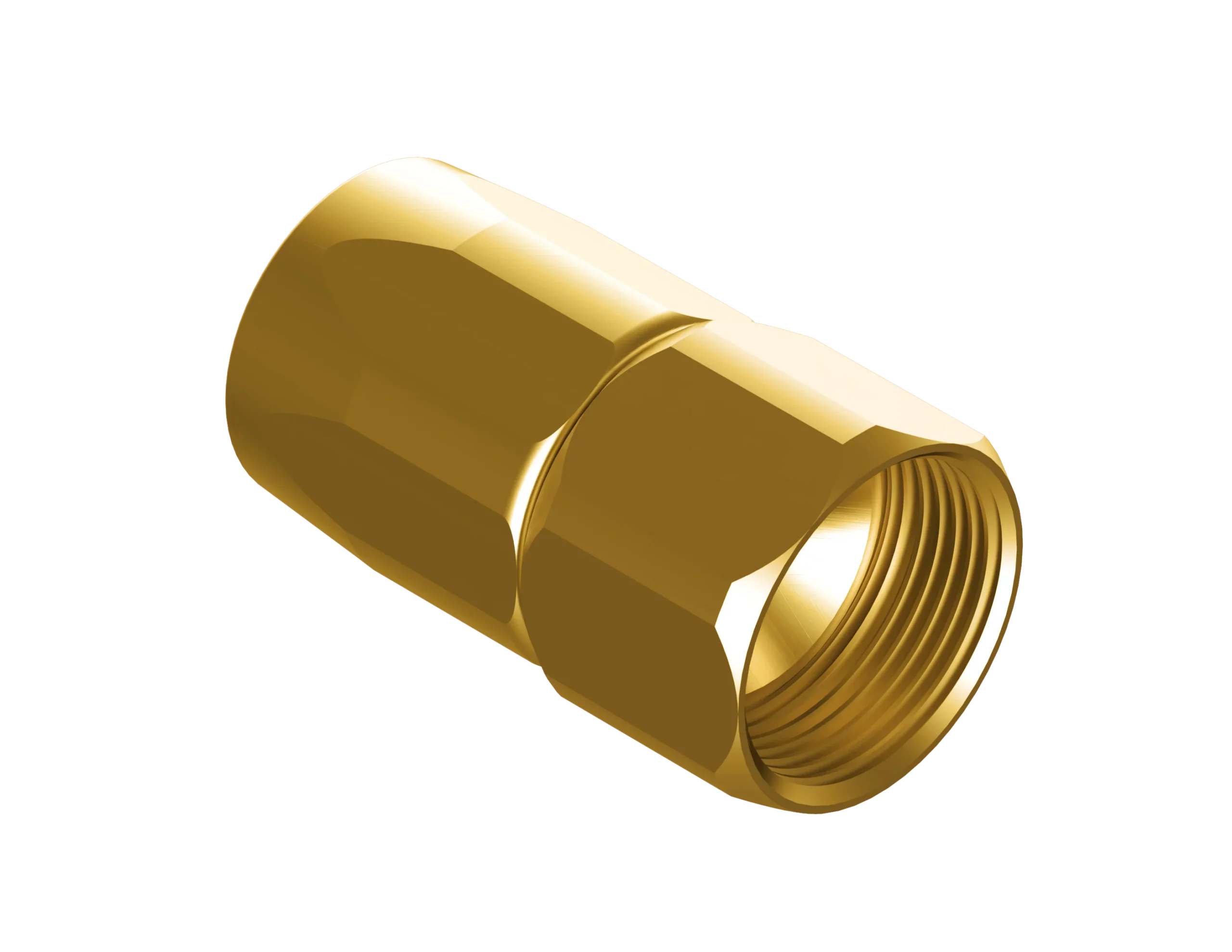

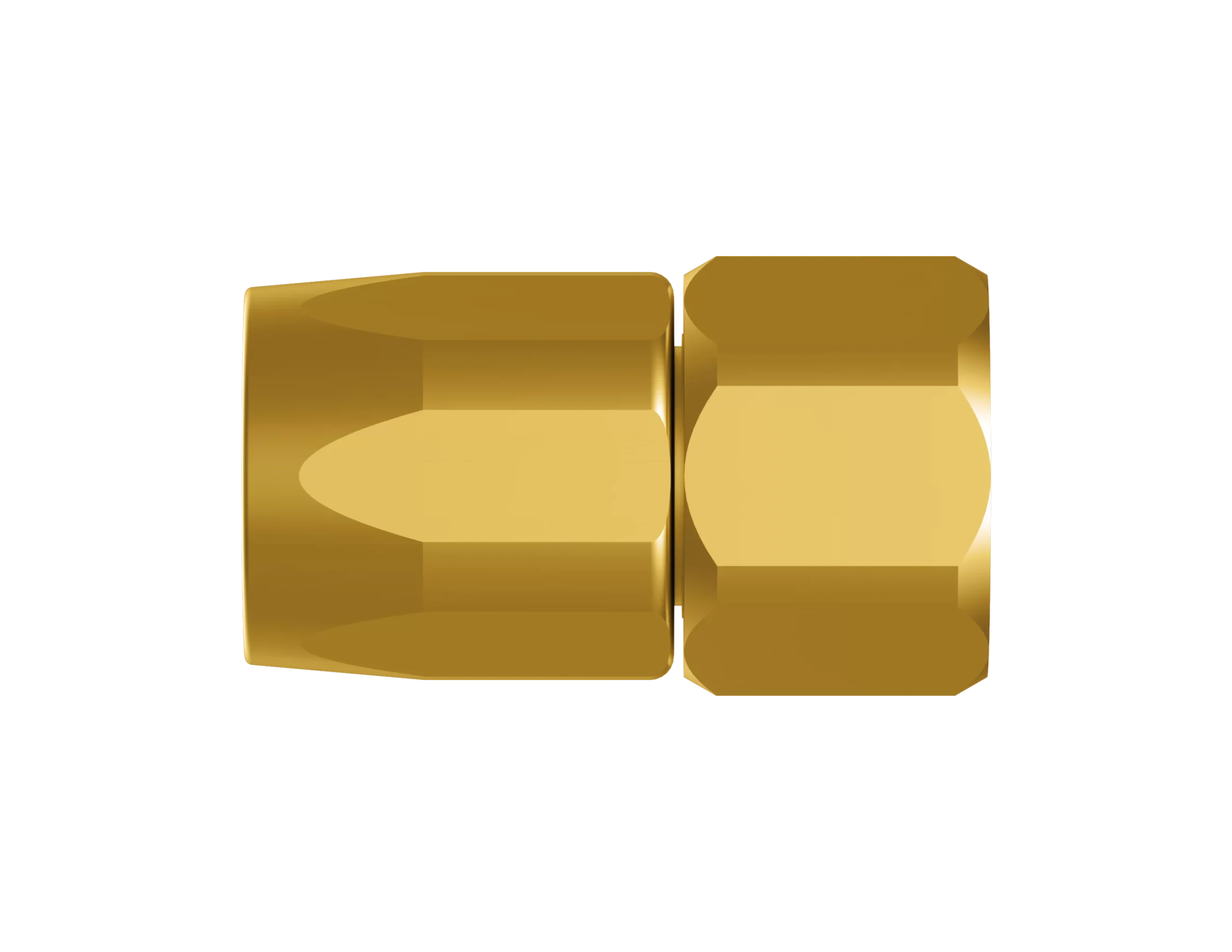

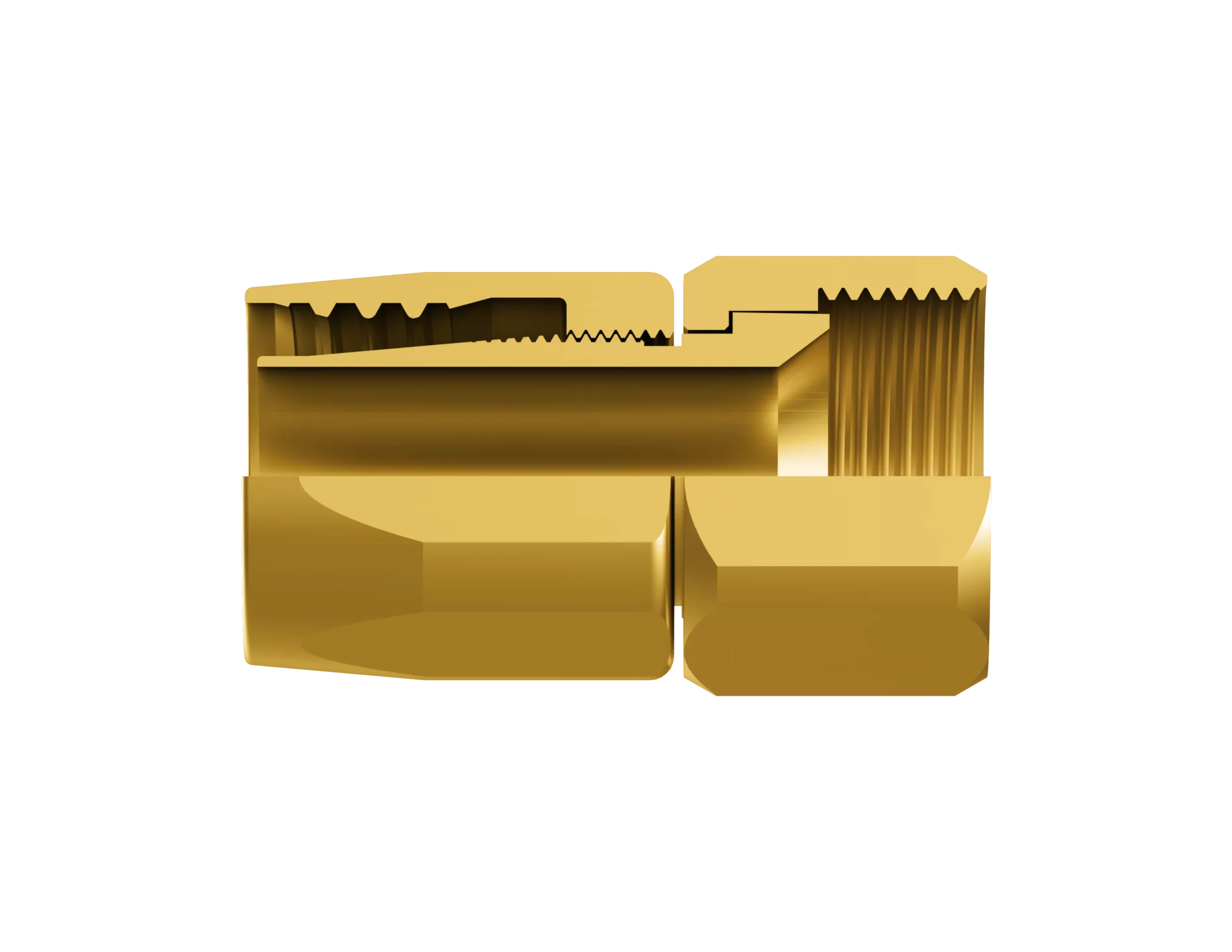

EF-B1488A-4848 – End Fittings – Straight – S.A.E. 37º Female Swivel (J.I.C.) to Hose
Print
Download PDF
( End Fitting - Straight )
Description:
Equal to Aeroquip P/N 411-B & 44-411,
Use with the following hose:
Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580
Specification
Specification Table
| Part Number | EF-B1488A-4848 |
|---|---|
| Hydrasearch Drawing Number | C19218 |
| Hose Size | 3 |
| T Thread CL-2A | 3-1/2”-12 |
| A | 4.28 |
| B | 1.51 |
| C | 4.00 |
| D | 2.38 |
| E | 2.80 |
| G | 3.88 |
| M | .87 |
| V | 2.50 |
| Est. Wt. (lbs.) | 6.20 |
Components Table
| Description | Req’d per Ass’y | 1616 | 2020 | 2424 | 3232 | 4040 | 4848 | Material |
| Nipple | 1 | B18668-1 | B18675-1 | C18983-1 | C18654-1 | C18995-1 | C18996 | Brass |
| Socket | 1 | C18667-1 | C18703-1 | C18990-1 | C18811 | C18822 | C17901 | Brass |
| Nut | 1 | B18673-1 | C18677-1 | C18977-1 | C18650-1 | C18997-1 | - | Brass |
