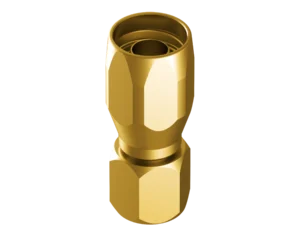

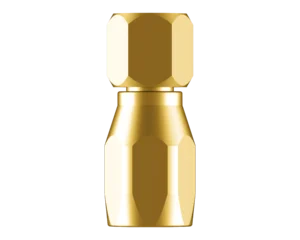

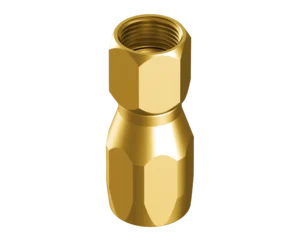

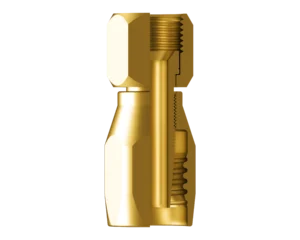

EF-B1488A-0404 – End Fittings – Straight – S.A.E. 37º Female Swivel (J.I.C.) to Hose
EF-B1488A-0404 – End Fittings – Straight – S.A.E. 37º Female Swivel (J.I.C.) to Hoseiso-1-55std-50q-cut-53iso-2-51
EF-B1488A-0404

EF-B1488A-0404 – End Fittings – Straight – S.A.E. 37º Female Swivel (J.I.C.) to Hose

Print Icon Print Download Icon Download PDF
( End Fitting - Straight )

Description:

Equal to Aeroquip P/N 411-B & 44-411,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-B1488A-0404
  • Hydrasearch Drawing Number: C19207
  • Hose Size: 1/4
  • T Thread CL-2A: 7/16”-20
  • A: 1.82
  • B: .85
  • C: .56
  • D: 1.20
  • E: .17
  • G: .63
  • M: .35
  • V: 1.10
  • Est. Wt. (lbs.): .10

Specification Table

Part NumberEF-B1488A-0404
Hydrasearch Drawing NumberC19207
Hose Size1/4
T Thread CL-2A7/16”-20
A1.82
B.85
C.56
D1.20
E.17
G.63
M.35
V1.10
Est. Wt. (lbs.).10

Components Table

DesceiptionReq’d per Ass’y0404060405050606080810081010121012121612Material
Nipple1B18978-1-B18979-1B18980-1C18647-1-B18981-1-B18982-1-Brass
Socket1C18984-1-C18985-1C18986-1C18648-1-C18987-1-C18988-1-Brass
Nut1B18972-1-B18973-1B18974-1B18778-1-B18975-1-B18976-1-Brass
