EF-6-400F

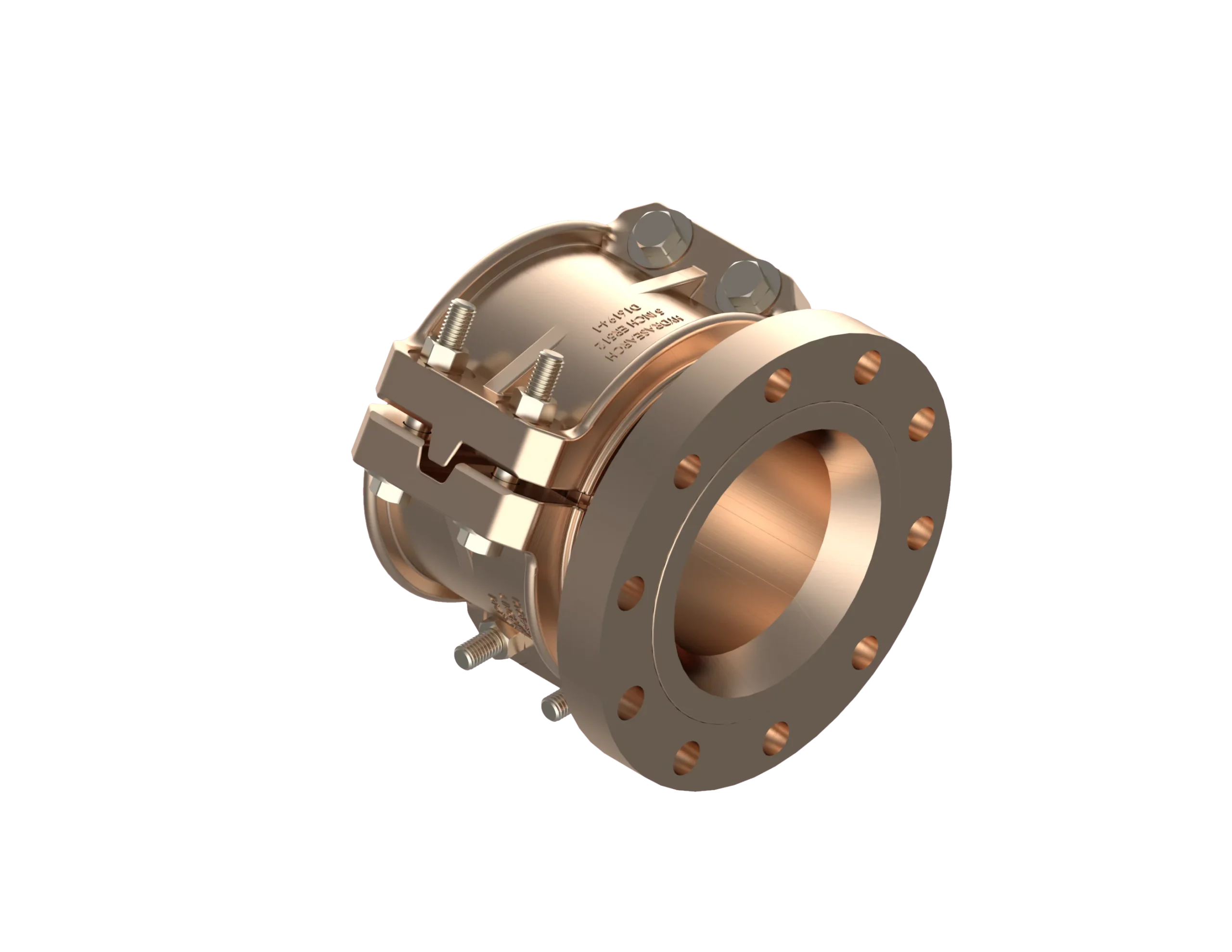

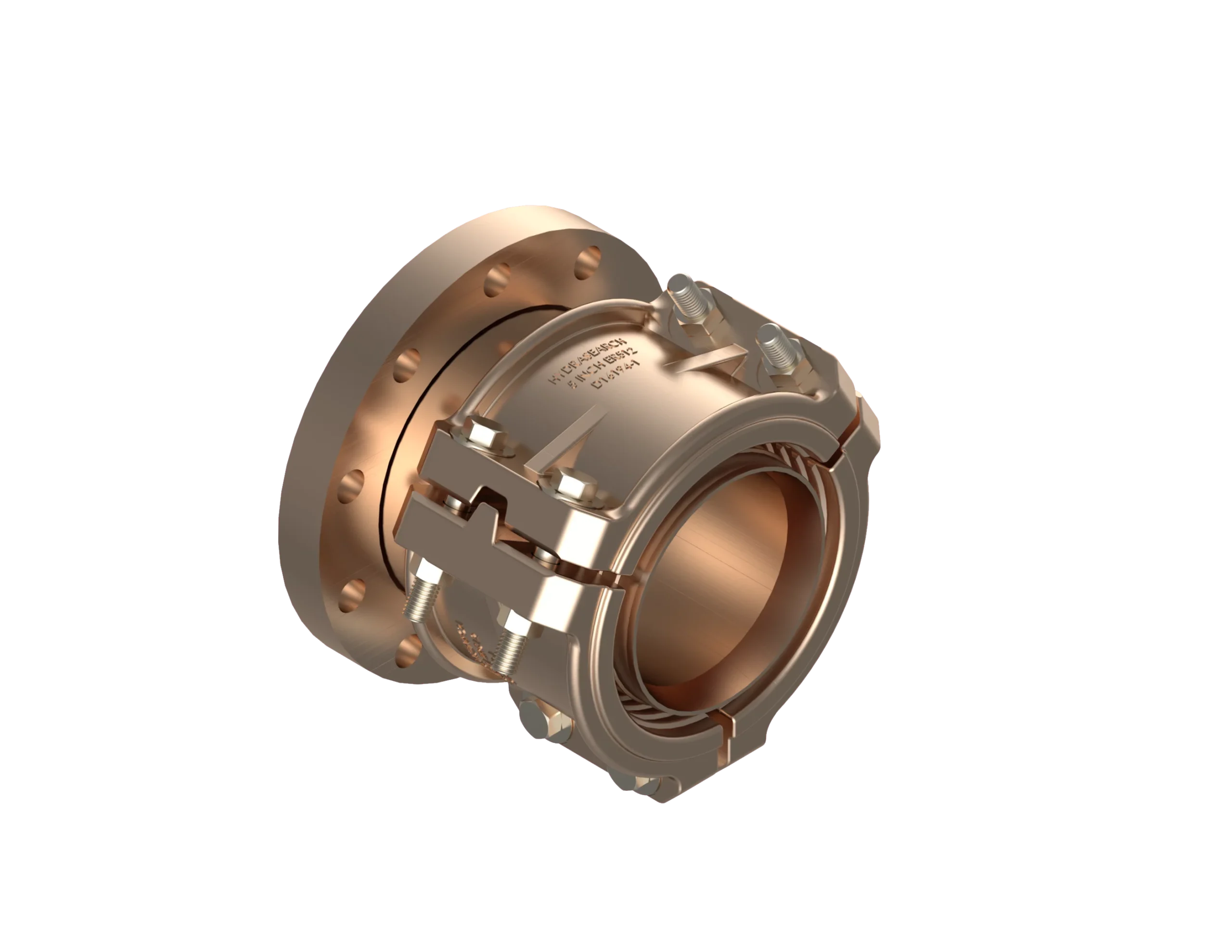

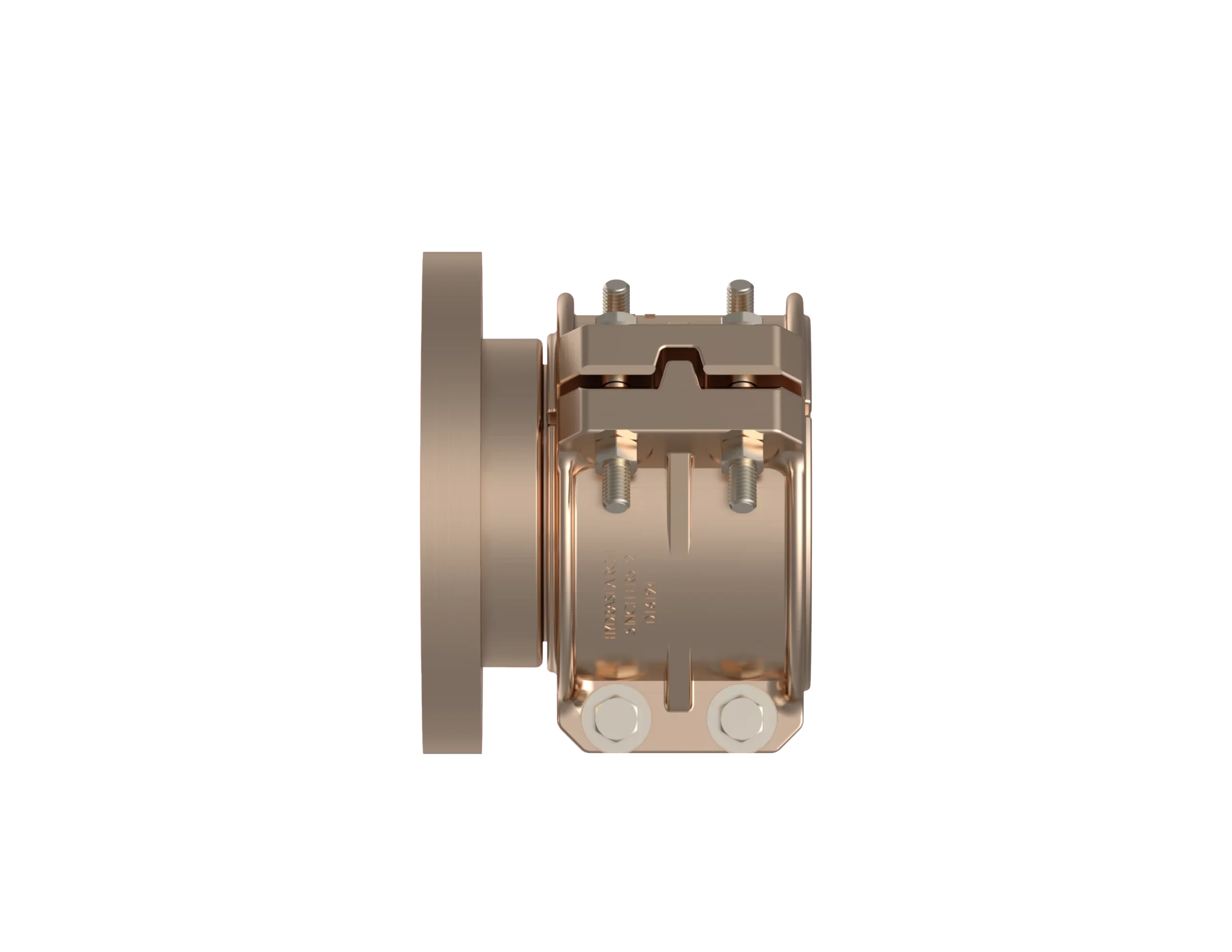

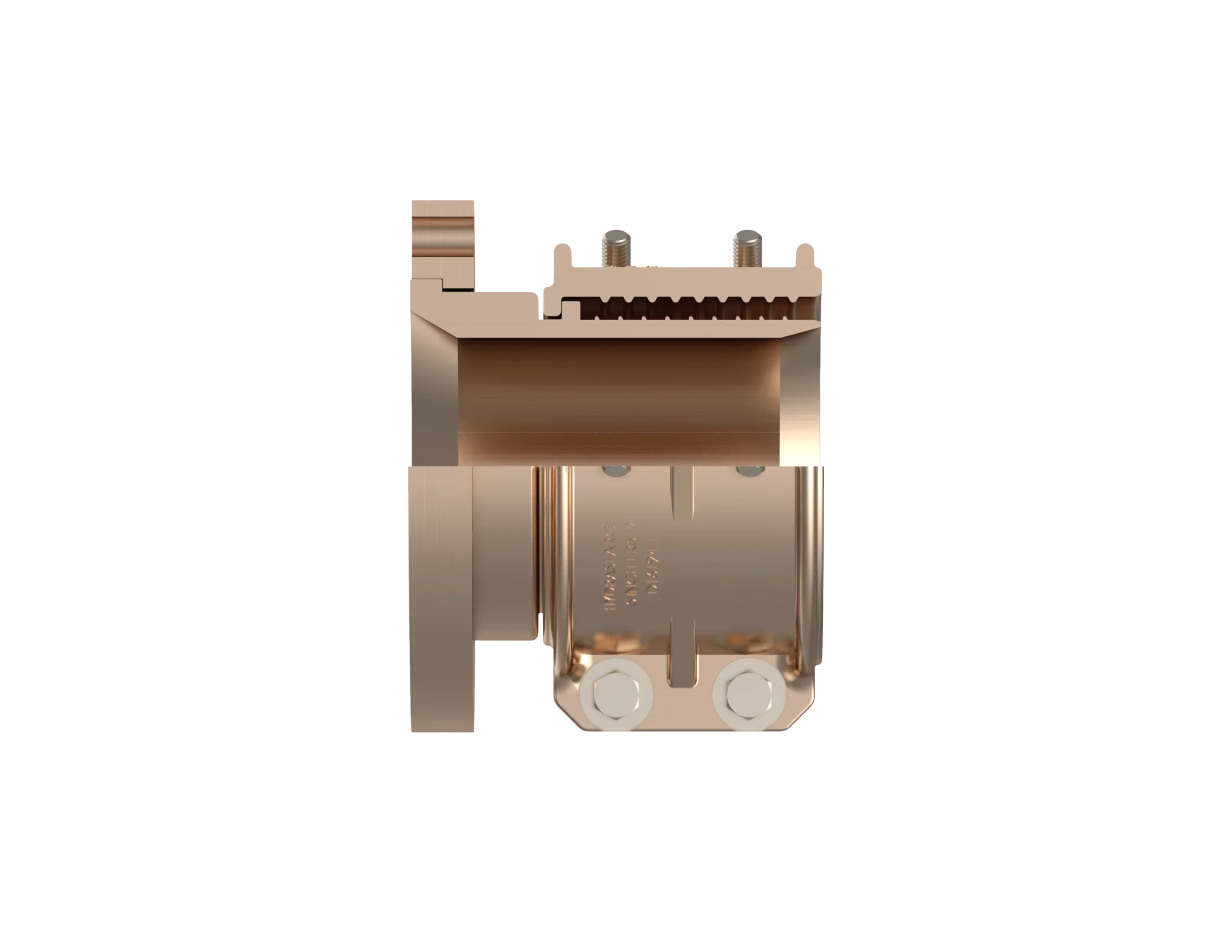

EF-6-400F – End Fittings – Straight – Flange to Hose (MIL-DTL-24787/1, Type F, Group IX, Class I, 400 Lb. Flange per MIL-PRF-20042)
Print
Download PDF
( MIL-DTL-24787/1, Type F, Group IX, Class I, 400lb, End Fitting - Straight )
Description:
Use with the following hose: ER512 & 2580
Specification
Specification Table
| Part Number | EF-6-400F |
|---|---|
| Hydrasearch Drawing Number | D17132 |
| IPS Size | 6 |
| No. of Bolt Holes | 12 |
| M | .94 |
| A | 7.03 |
| D | 2.90 |
| J | 11.94 |
| K | 7.38 |
| L | 10.19 |
| N | 1.19 |
| S | 6.31 |
| T | 10.38 |
| Est. Wt. (lbs.) | 63.00 |
Components Table
| Description | Req’d per Ass’y | 5” | 6" | 8" | 10" | Material |
| Swivel Flange | 1 | C16912-1 | C16912-2 | C16912-3 | - | Aluminum. Bronze |
| Nipple | 1 | D16195 | D16199 | D16185 | - | Aluminum. Bronze |
| Grip Segment | 3 | D16194-1 | D16198-1 | D16080-1 | - | Aluminum. Bronze |
| Bolt | 6 | D16197-4 | D16197-4 | B16551-1 | - | Monel |
| Nut | 6 | D16197-6 | D16197-6 | B16551-3 | - | Monel |
| Washer | 6 | D16197-5 | D16197-5 | B16551-2 | - | Monel |
