EF-449CA-2.5-48

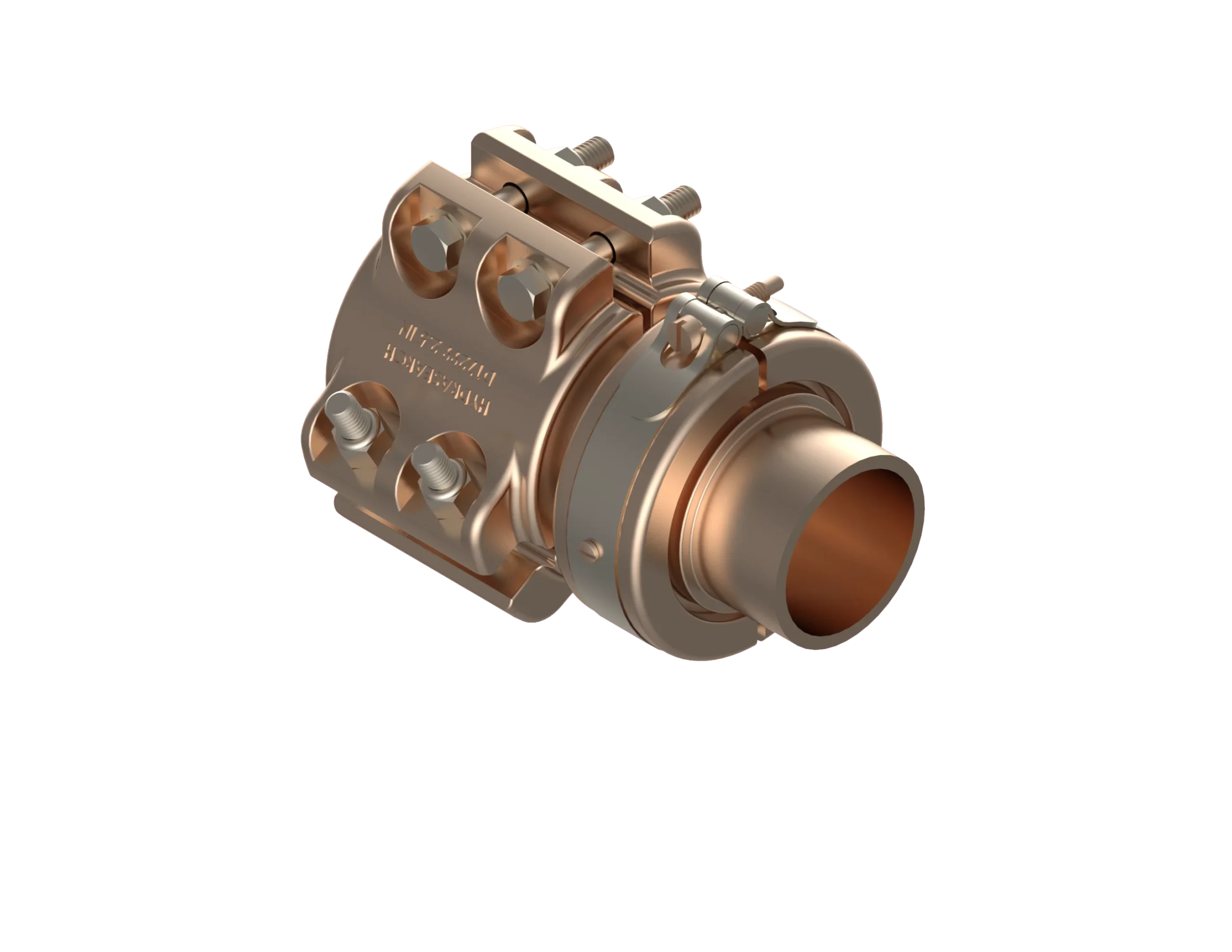

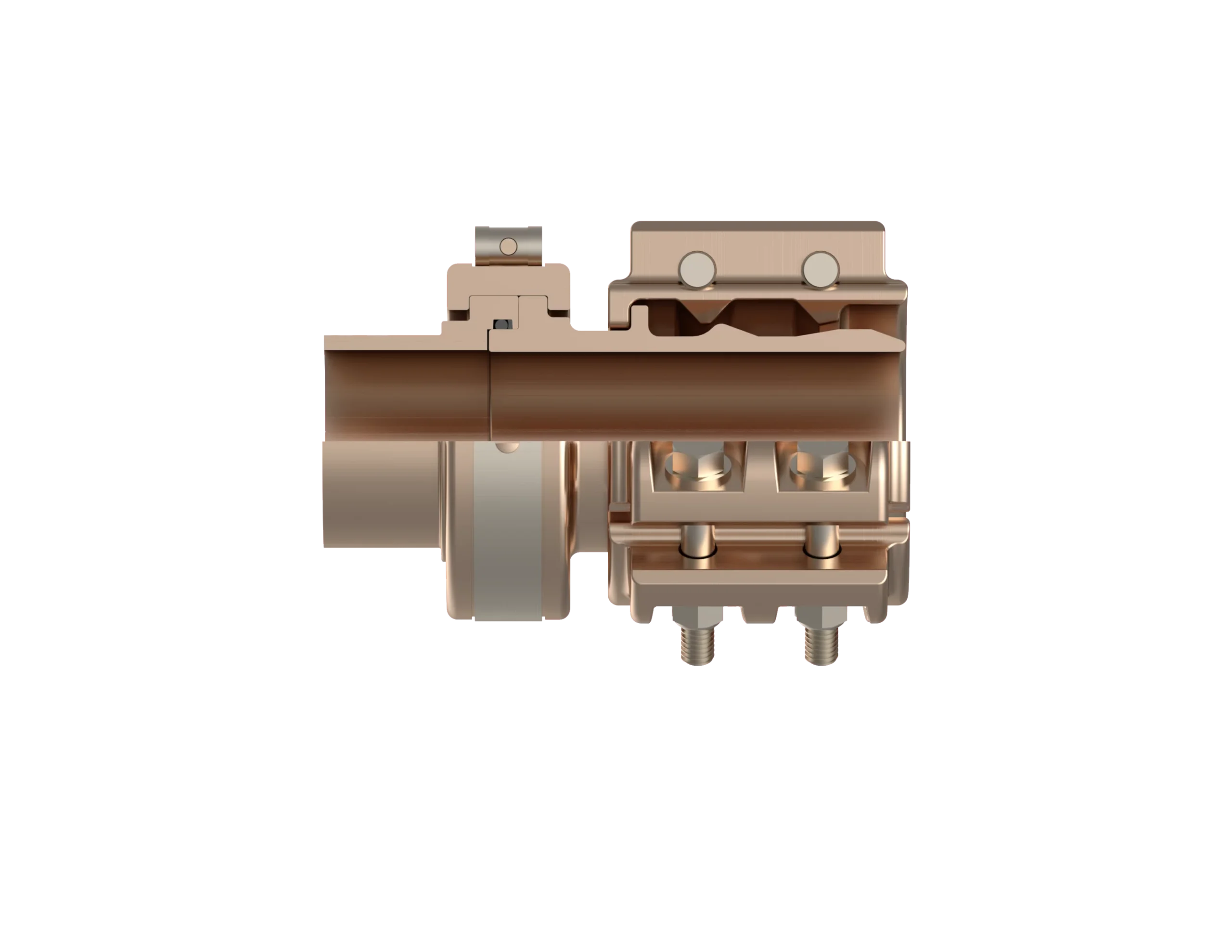

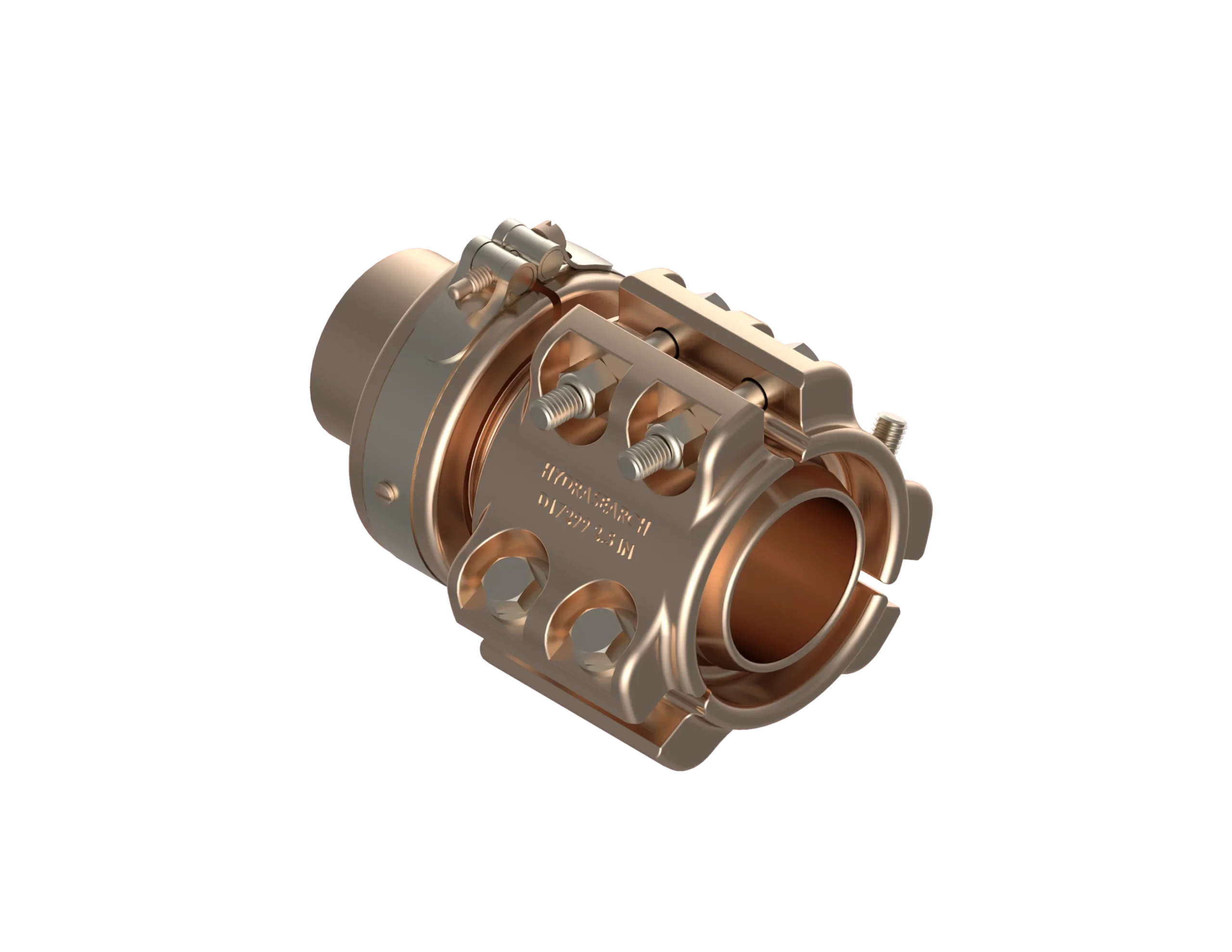

EF-449CA-2.5-48 – End Fittings – Straight – Male Sil-Braze to Hose (MIL-DTL-24787/4, Type E, Group IV)
Print
Download PDF
( MIL-DTL-24787/4, Type E, Group IV, End Fitting - Straight )
Description:
Equal to Aeroquip P/N 375-190780 & FC9583-375,
Use with the following hose:
HS4265, HS4224, 2562, 150901
Specification
Specification Table
| Part Number | EF-449CA-2.5-48 |
|---|---|
| Hydrasearch Drawing Number | C18059 |
| IPS Size | 2.5 |
| A | 6.37 |
| D | 3.52 |
| F | 2.88 |
| M | 1.12 |
| Z | 4.42 |
| T | 5.50 |
| Est. Wt. (lbs.) | 10.00 |
Components Table
| Description | Req’d per Ass’y | 2-40 | 2.5-48 | 3-48 | 3.5-64 | 4-64 | Material |
| Clamp Assy. | 1 | C18078 | C18079 | C18080 | C18081 | C18082 | Aluminum. Bronze |
| Nipple | 1 | C18096 | C18097 | C18100 | C18103 | C18105 | Aluminum. Bronze |
| Tailpiece | 1 | C18088 | C18089 | C18090 | C18091 | C18092 | Aluminum. Bronze |
| Grip Segment | 3 | D17299-1 | D17300-1 | D17300-1 | D17301-1 | D17301-1 | Aluminum. Bronze |
| Bolt | 6 | B17673-2 | B17673-1 | B17673-1 | B17987 | B17987 | Monel |
| Lock Nut | 6 | B18176 | B18176 | B18176 | B17984 | B17984 | Monel |
| Washer | 6 | B18175 | B18175 | B18175 | B17986 | B17986 | Monel |
