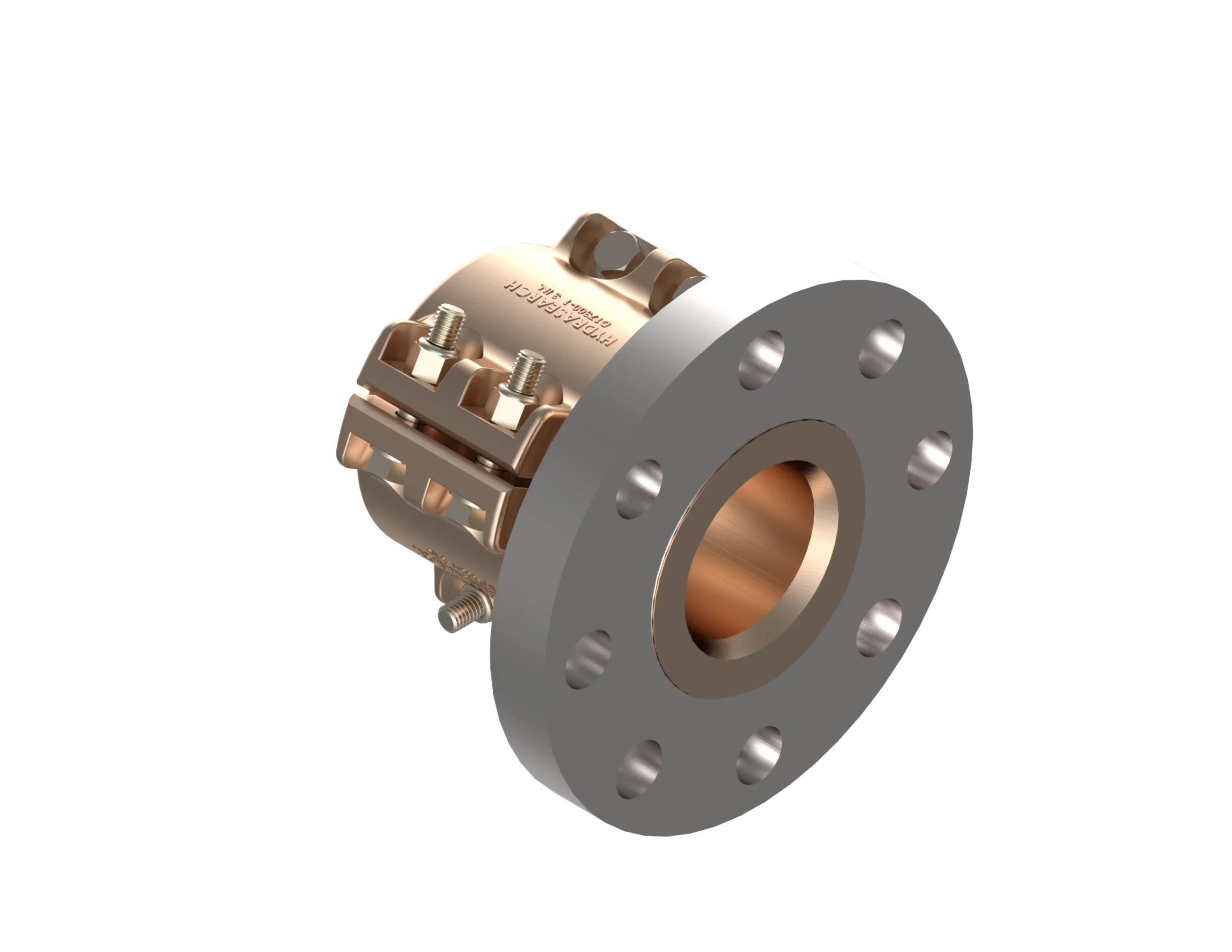

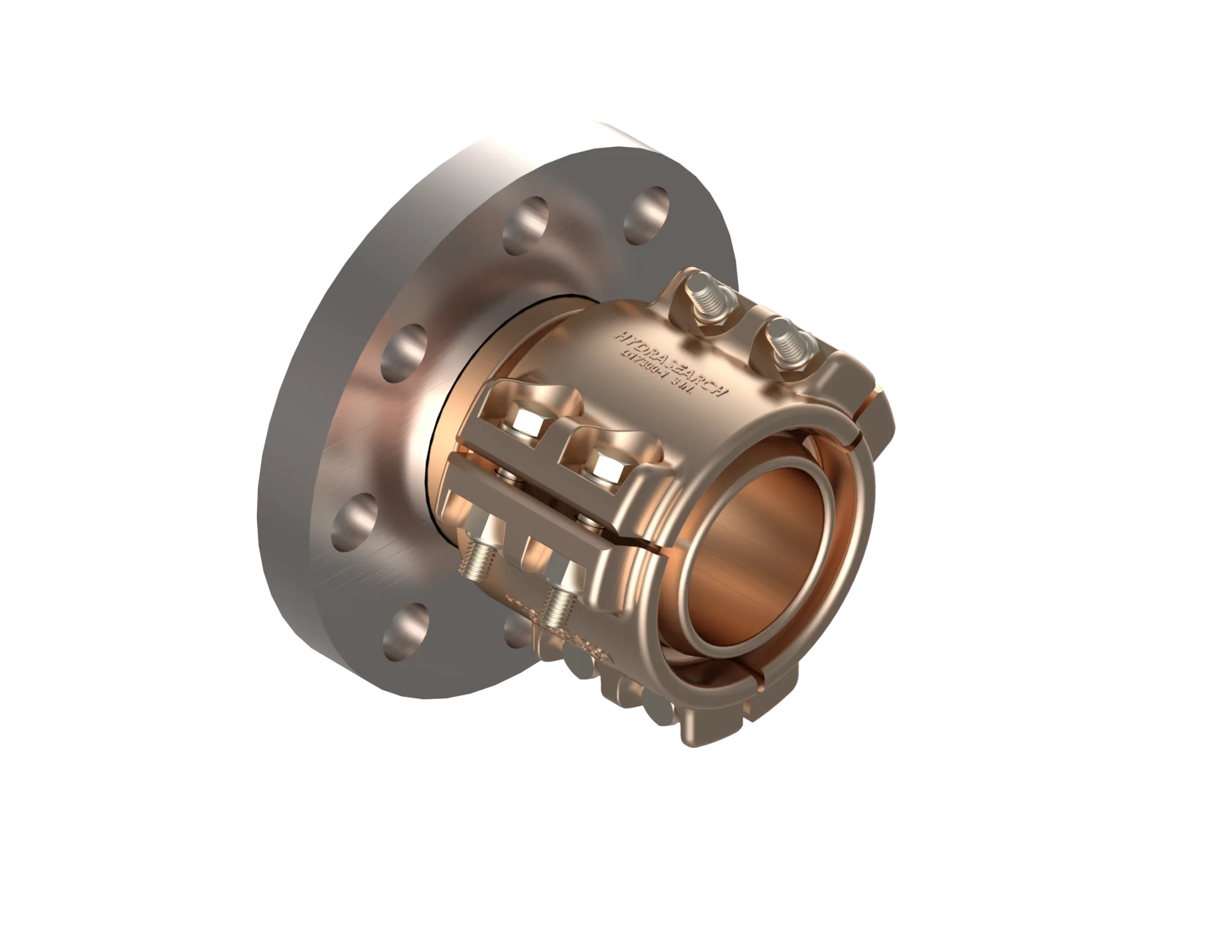

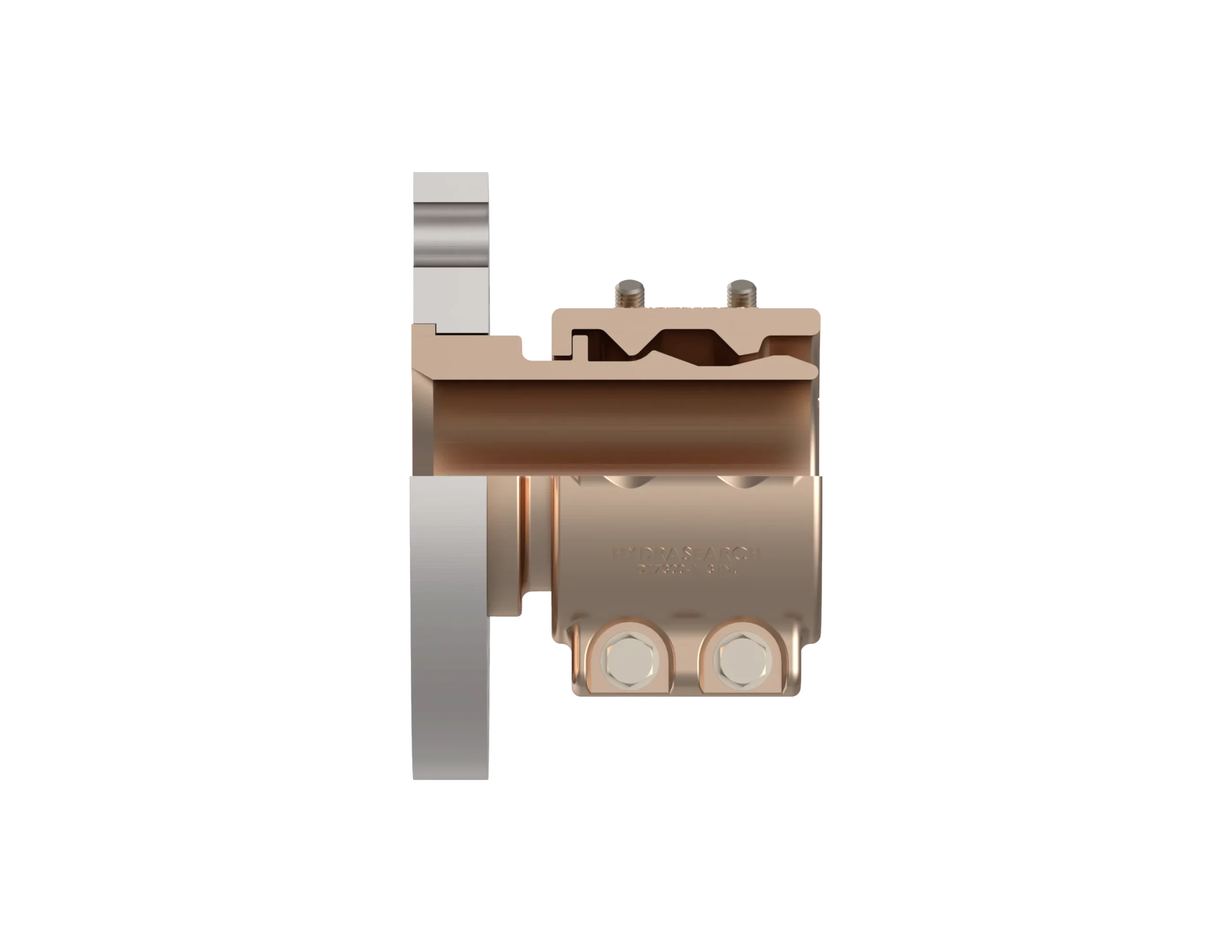

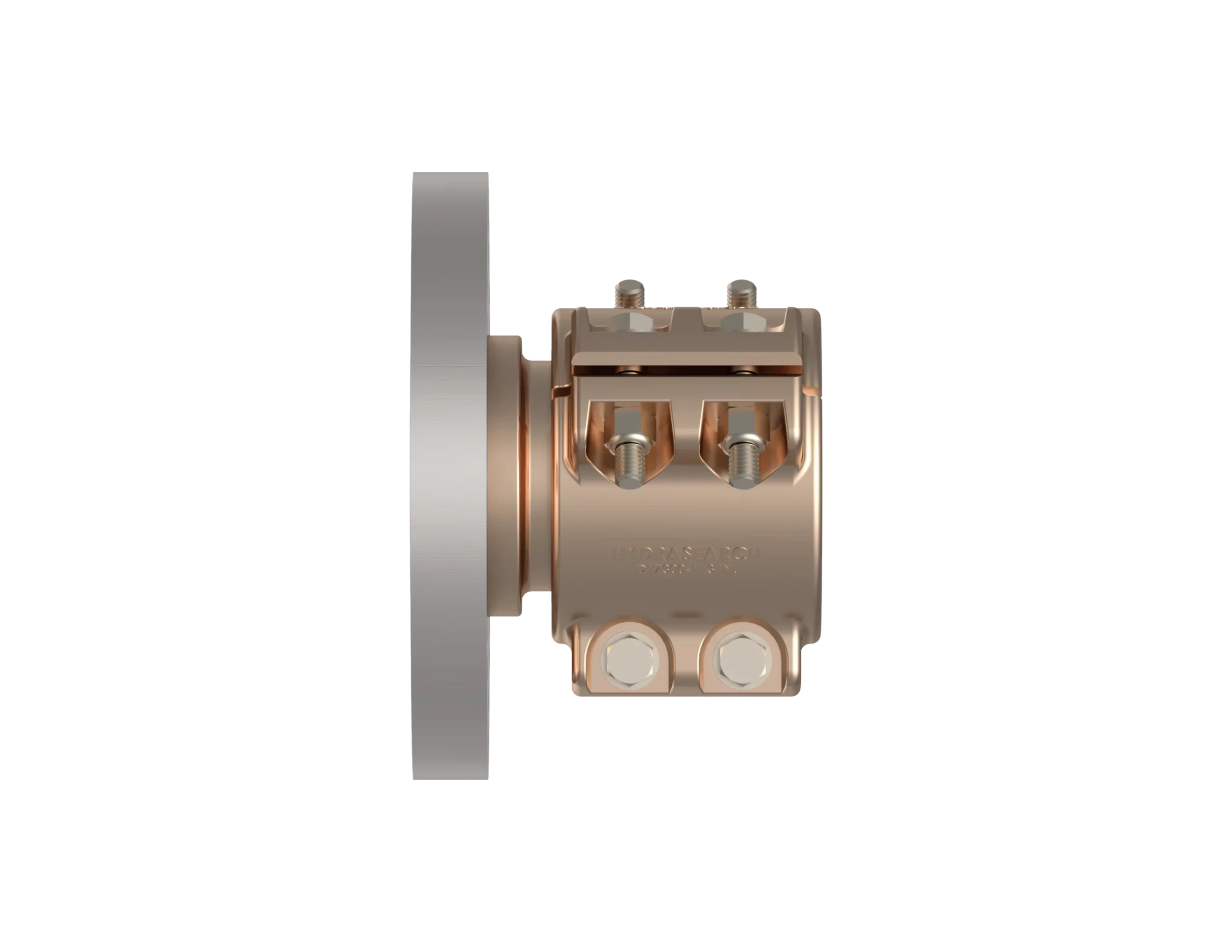

( 300lb, End Fitting - Straight )

Description:

Equal to Aeroquip P/N FJ9477-413,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: EF-449A6-3.5-64-BSS
  • Hydrasearch Drawing Number: C19760
  • IPS Size: 3.5
  • No. of Bolt Holes: 8
  • M: .88
  • A: 5.54
  • D: 2.63
  • J: 9.06
  • K: 5.22
  • L: 7.25
  • N: 1.13
  • S: 3.81
  • T: 6.50
  • Est. Wt. (lbs.): 17.00

Specification Table

Part NumberEF-449A6-3.5-64-BSS
Hydrasearch Drawing NumberC19760
IPS Size3.5
No. of Bolt Holes8
M.88
A5.54
D2.63
J9.06
K5.22
L7.25
N1.13
S3.81
T6.50
Est. Wt. (lbs.)17.00

Components Table

DescriptionReq’d per Ass’y2-402.5-402.5-483-483.5-644-64Material
Swivel Flange1C19767C19769-C19770C19771C19765Stainless Steel
Nipple1C17306-C18016C17308C18015C17210Aluminum. Bronze
Segment3D17299-1-D17300-1D17300-1D17301-1D17301-1Aluminum. Bronze
Bolt6B17673-2-B17673-1B17673-1B17987B17987Monel
Lock Nut6B18176-B18176B18176B17984B17984Monel
Washer6B18175-B18175B18175B17986B17986Monel
