EF-449A5-4-64

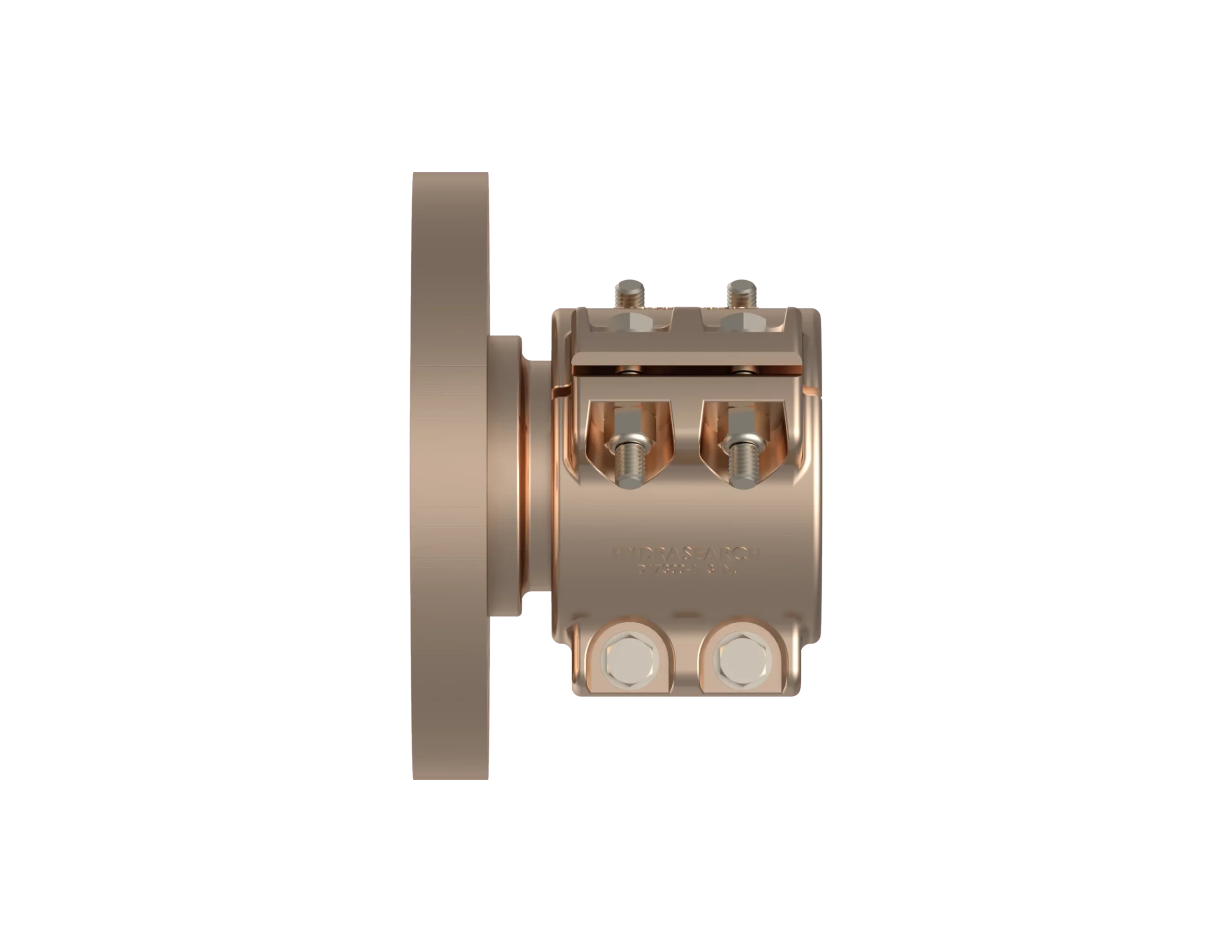

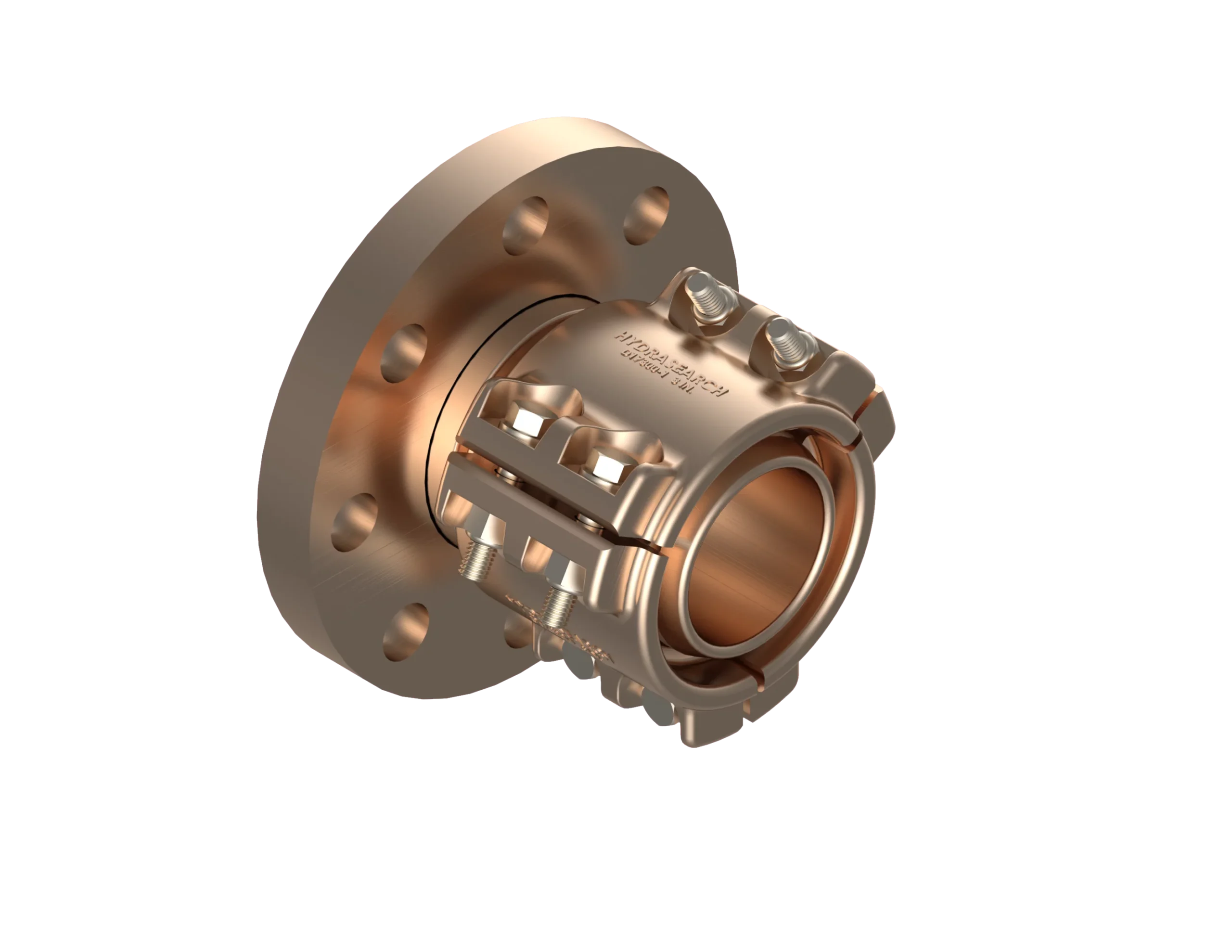

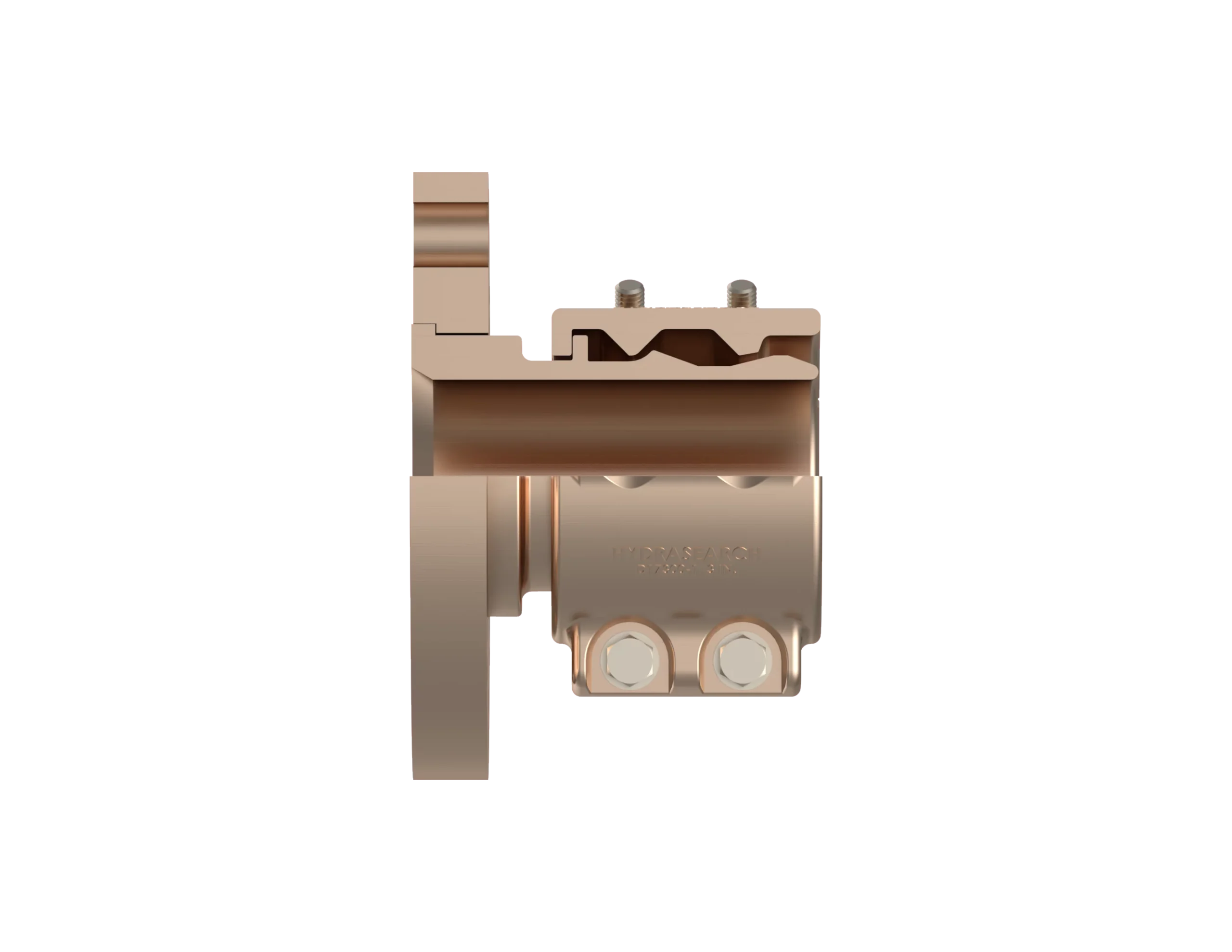

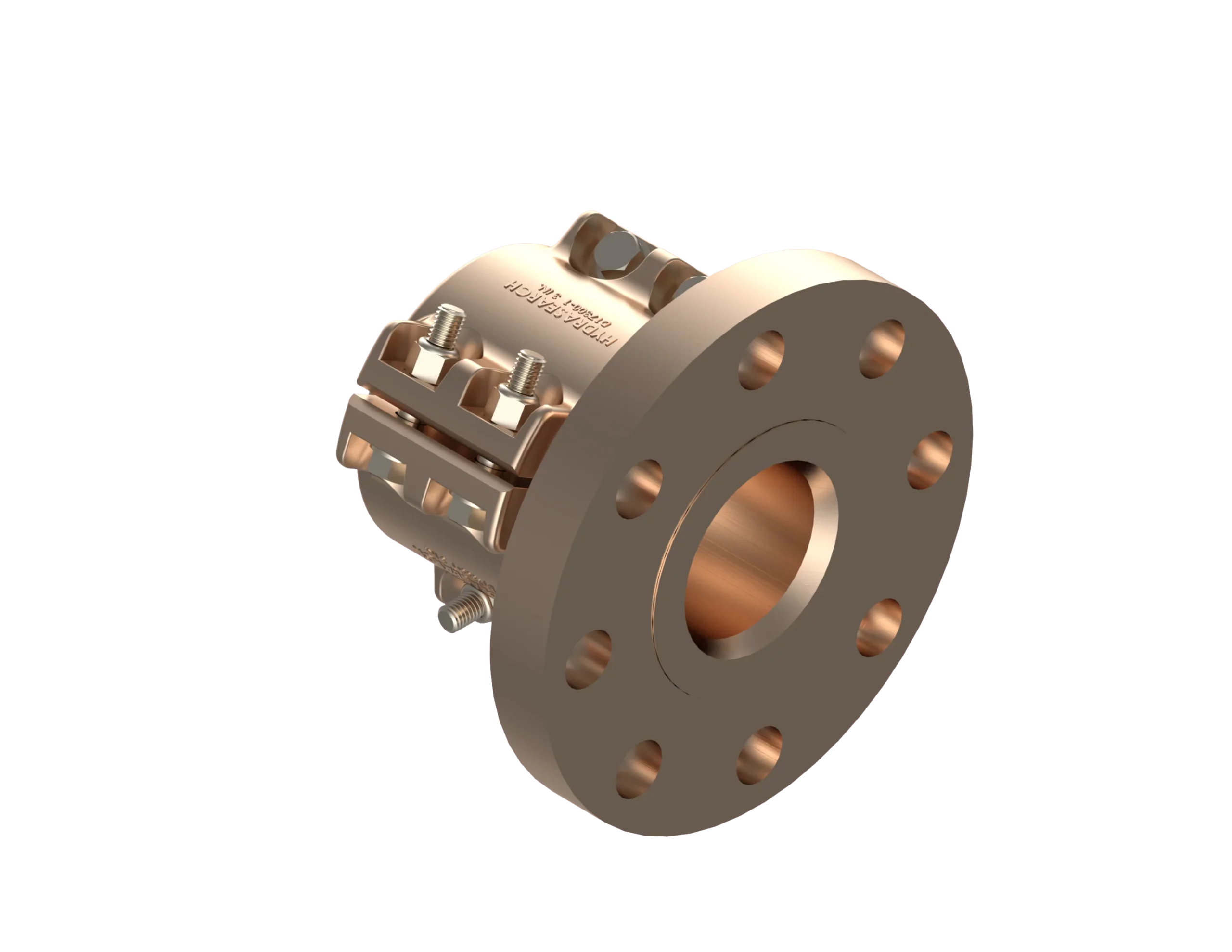

EF-449A5-4-64 – End Fittings – Straight – Hose to Flange

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type F, Group IV, Class II, 150/400lb, End Fitting - Straight )

Description:

Equal to Aeroquip P/N 375-190751,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: EF-449A5-4-64
  • Hydrasearch Drawing Number: C18572
  • IPS Size: 4
  • No. of Bolt Holes: 8
  • M: 0.56
  • A: 5.54
  • D: 2.63
  • J: 7.69
  • K: 5.22
  • L: 6.56
  • N: 1.00
  • S: 4.28
  • T: 6.50
  • Est. Wt. (lbs.): 20.00

Specification Table

Part NumberEF-449A5-4-64
Hydrasearch Drawing NumberC18572
IPS Size4
No. of Bolt Holes8
M0.56
A5.54
D2.63
J7.69
K5.22
L6.56
N1.00
S4.28
T6.50
Est. Wt. (lbs.)20.00

Components Table

DescriptionReq’d per Ass’y2-402.5-402.5-483-483.5-644-64Material
Swivel Flange1C17765C17796C17795C17766C17794C17767Aluminum. Bronze
Nipple1C17306C17306C18016C17308C18015C17210Aluminum. Bronze
Segment3D17299-1D17299-1D17300-1D17300-1D17301-1D17301-1Aluminum. Bronze
Bolt6B17673-2B17673-2B17673-1B17673-1B17987B17987Monel
Lock Nut6B18176B18176B18176B18176B17984B17984Monel
Washer6B18175B18175B18175B18175B17986B17986Monel
