EF-449A4-3.5-64
EF-449A4-3.5-64iso-1-2iso-2-3stdq-cut-2
EF-449A4-3.5-64

EF-449A4-3.5-64

Print Icon Print Download Icon Download PDF

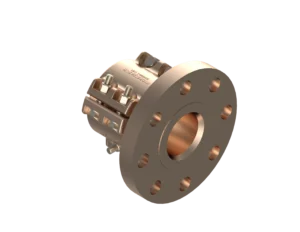

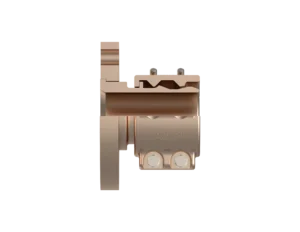

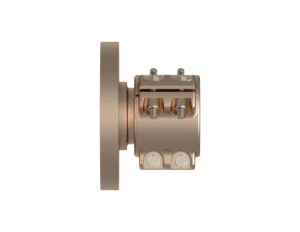

( MIL-DTL-24787/1, Type F, Group IV, Class V, 150lb, End Fitting - Straight )

Description:

Equal to Aeroquip P/N 375-190767,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: EF-449A4-3.5-64
  • Hydrasearch Drawing Number: C17985
  • IPS Size: 3.5
  • No. of Bolt Holes: 8
  • M: .75
  • A: 5.54
  • D: 2.63
  • J: 8.50
  • K: 5.22
  • L: 7.00
  • N: .48
  • S: 3.81
  • T: 6.50
  • Est. Wt. (lbs.): 17.00

Specification Table

Part NumberEF-449A4-3.5-64
Hydrasearch Drawing NumberC17985
IPS Size3.5
No. of Bolt Holes8
M.75
A5.54
D2.63
J8.50
K5.22
L7.00
N.48
S3.81
T6.50
Est. Wt. (lbs.)17.00

Components Table

DescriptionReq’d per Ass’y2-402.5-402.5-483-483.5-644-64Material
Swivel Flange1C17966C17968C17969C17970C17971C17972Aluminum. Bronze
Nipple1C17306C17306C18016C17308C18015C17210Aluminum. Bronze
Segment3D17299-1D17299-1D17300-1D17300-1D17301-1D17301-1Aluminum. Bronze
Bolt6B17673-2B17673-2B17673-1B17673-1B17987B17987Monel
Lock Nut6B18176B17176B18176B18176B17984B17984Monel
Washer6B18175B18175B18175B18175B17986B17986Monel
