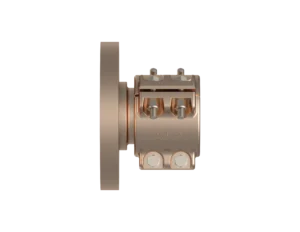

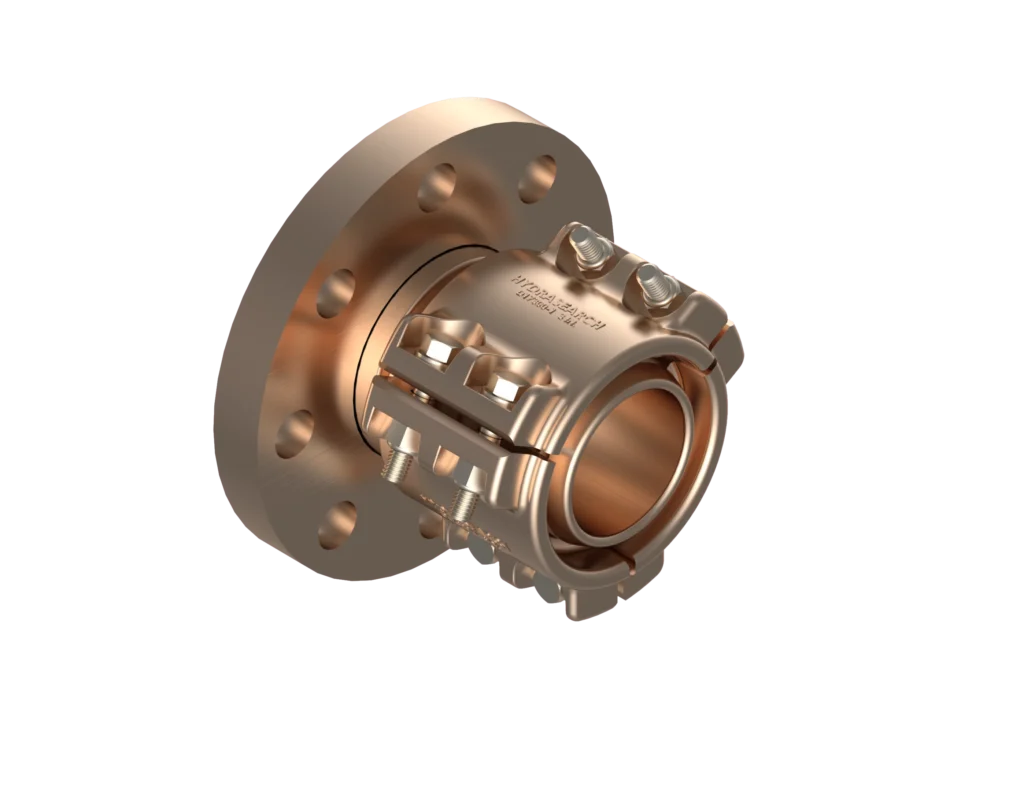

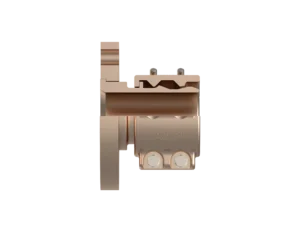

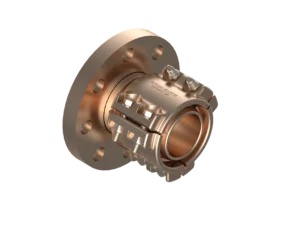

( MIL-DTL-24787/1, Type F, Group IV, Class III, 250lb, End Fitting - Straight )

Description:

Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: EF-449A2-2-40
  • Hydrasearch Drawing Number: C18000
  • IPS Size: 2
  • No. of Bolt Holes: 6
  • M: 0.69
  • A: 5.11
  • D: 2.2
  • J: 5.56
  • K: 3.22
  • L: 4.44
  • N: 0.81
  • S: 2.24
  • T: 5.35
  • Est. Wt. (lbs.): 10

Specification Table

Part NumberEF-449A2-2-40
Hydrasearch Drawing NumberC18000
IPS Size2
No. of Bolt Holes6
M0.69
A5.11
D2.2
J5.56
K3.22
L4.44
N0.81
S2.24
T5.35
Est. Wt. (lbs.)10

Components Table

DescriptionReq’d per Ass’y2-402.5-402.5-483-483.5-644-64Material
Swivel Flange1C17812C17307C17813C17309C17815C17310Aluminum. Bronze
Nipple1C17306C17306C18016C17308C18015C17210Aluminum. Bronze
Segment3D17299-1D17299-1D17300-1D17300-1D17301-1D17301-1Aluminum. Bronze
Bolt6B17673-2B17673-2B17673-1B17673-1B17987B17987Monel
Lock Nut6B18176B18176B18176B18176B17984B17984Monel
Washer6B18175B18175B18175B18175B17986B17986Monel
