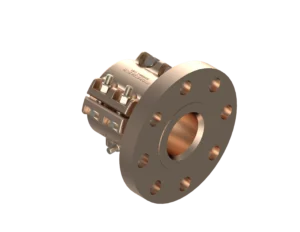

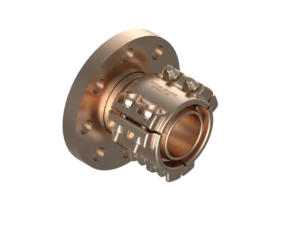

( MIL-DTL-24787/1, Type F, Group IV, Class I, 400lb, End Fitting - Straight )

Description:

Equal to Aeroquip P/N 375-190752,
Use with the following hose: HS4265, HS4224, 2562, 150901

Specification

  • Part Number: EF-449A1-3-48
  • Hydrasearch Drawing Number: C17997
  • IPS Size: 3
  • No. of Bolt Holes: 8
  • M: 0.81
  • A: 5.11
  • D: 2.20
  • J: 8.13
  • K: 4.44
  • L: 6.56
  • N: 0.94
  • S: 3.31
  • T: 5.58
  • Est. Wt. (lbs.): 18.00

Specification Table

Part NumberEF-449A1-3-48
Hydrasearch Drawing NumberC17997
IPS Size3
No. of Bolt Holes8
M0.81
A5.11
D2.20
J8.13
K4.44
L6.56
N0.94
S3.31
T5.58
Est. Wt. (lbs.)18.00

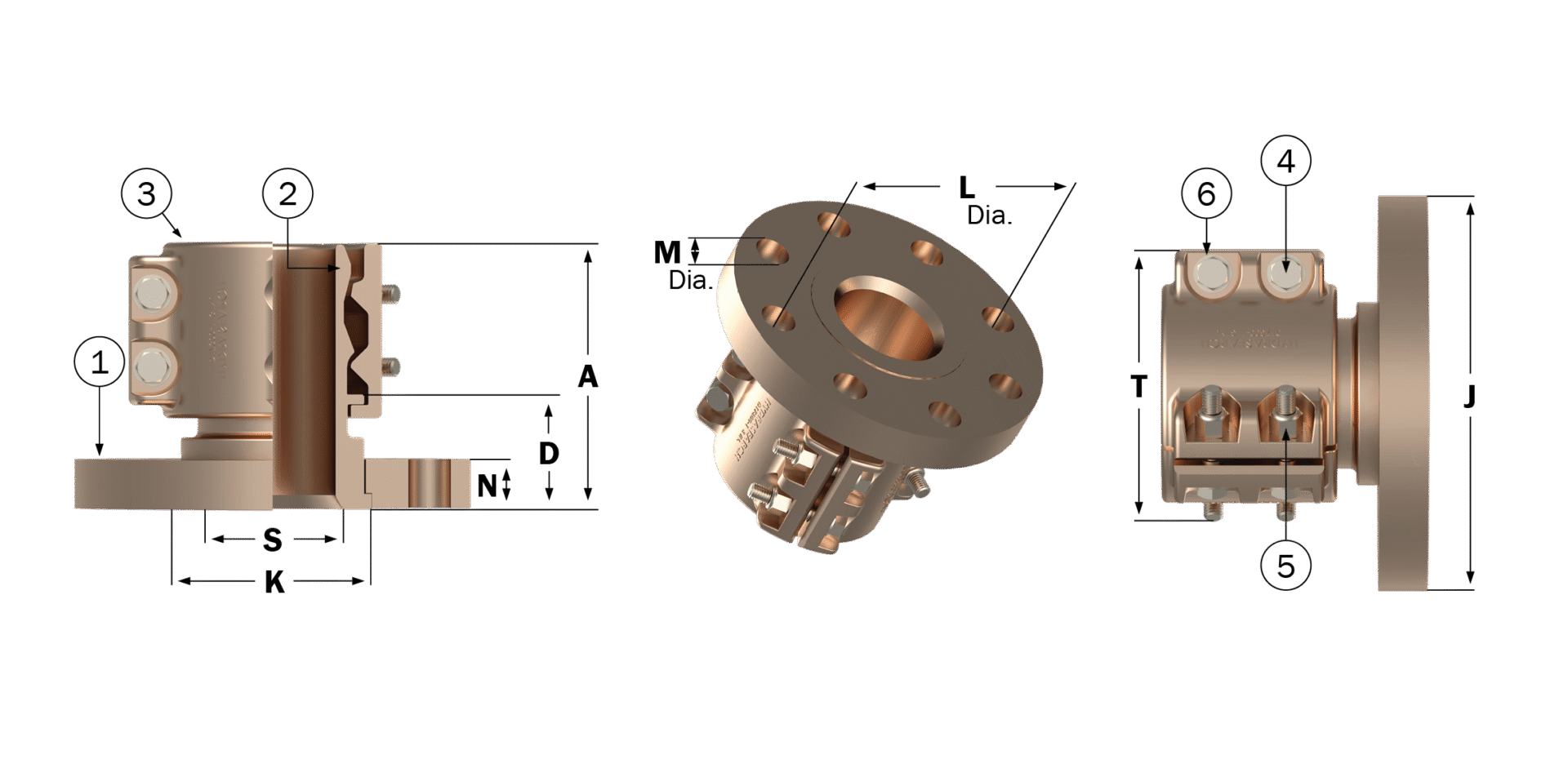

Specification Image

Components Table

DescriptionReq’d per Ass’y2-402.5-483-483.5-644-64Material
Swivel Flange1C17798C17801C17802C17803C17804Aluminum. Bronze
Nipple1C17306C18016C17308C18015C17210Aluminum. Bronze
Segment3D17299-1D17300-1D17300-1D17301-1D17301-1Aluminum. Bronze
Bolt6B17673-2B17673-1B17673-1B17987B17987Monel
Lock Nut6B18176B18176B18176B17984B17984Monel
Washer6B18175B18175B18175B17986B17986Monel
