EF-1600MP-0808
EF-1600MP-0808
Print
Download PDF

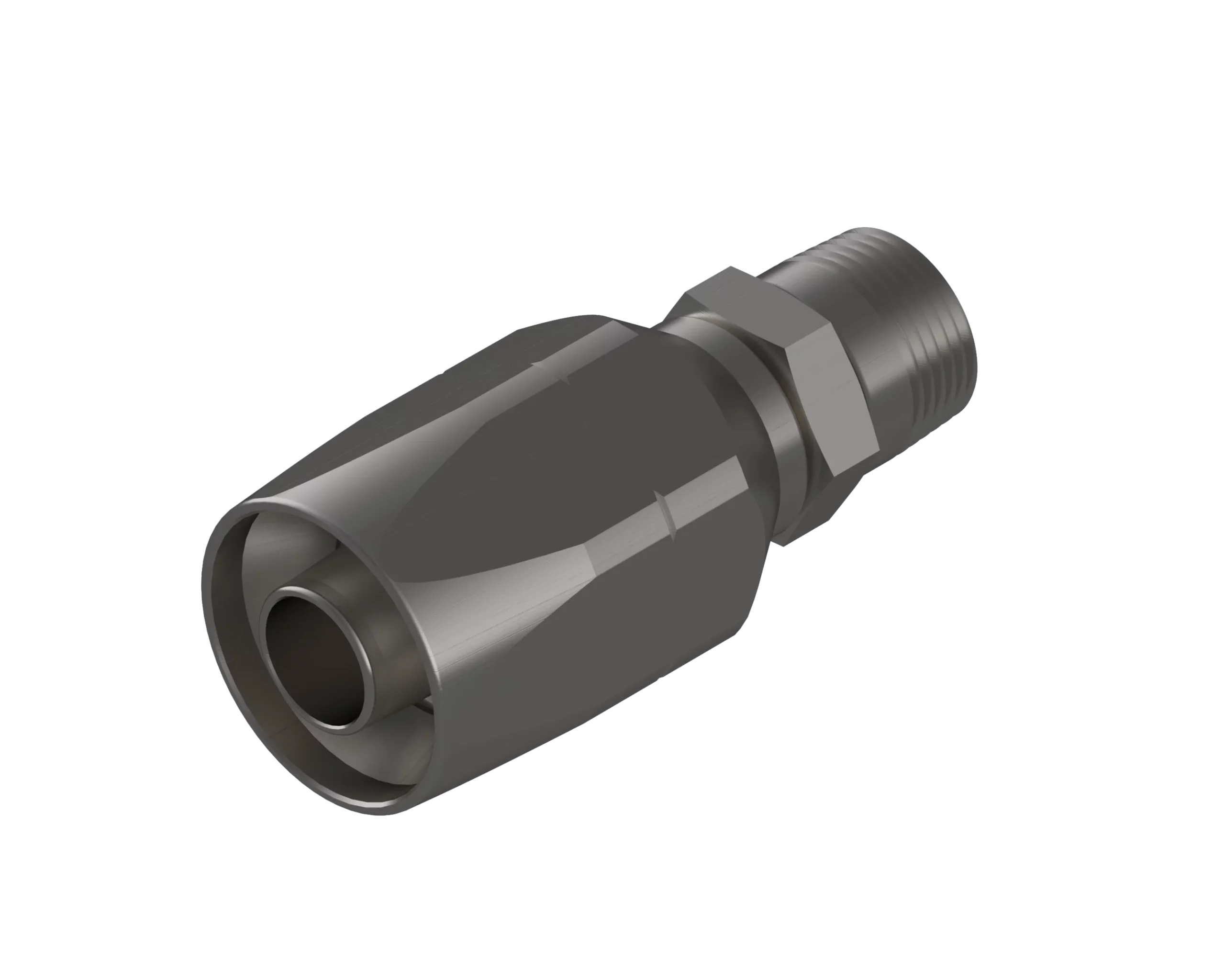

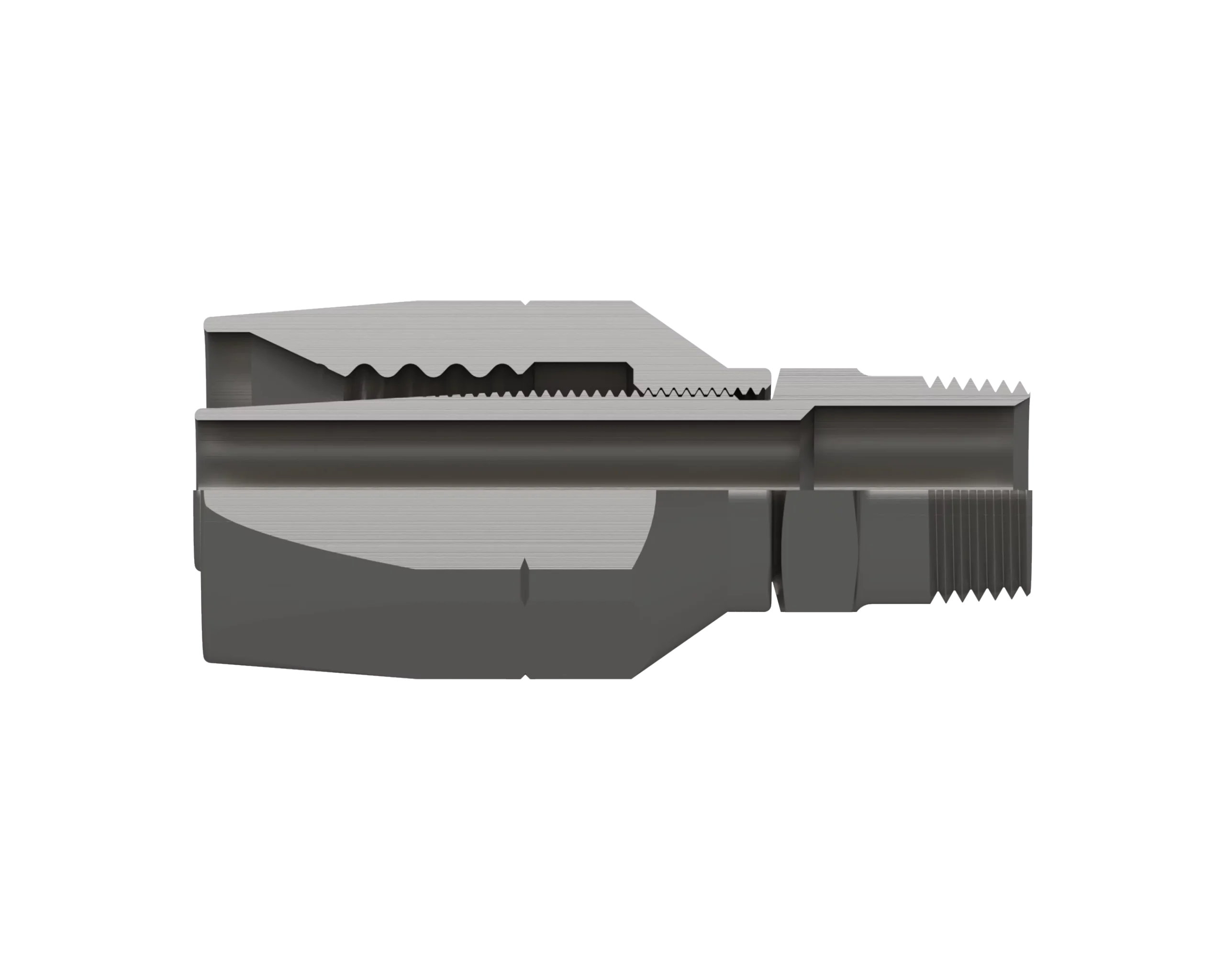

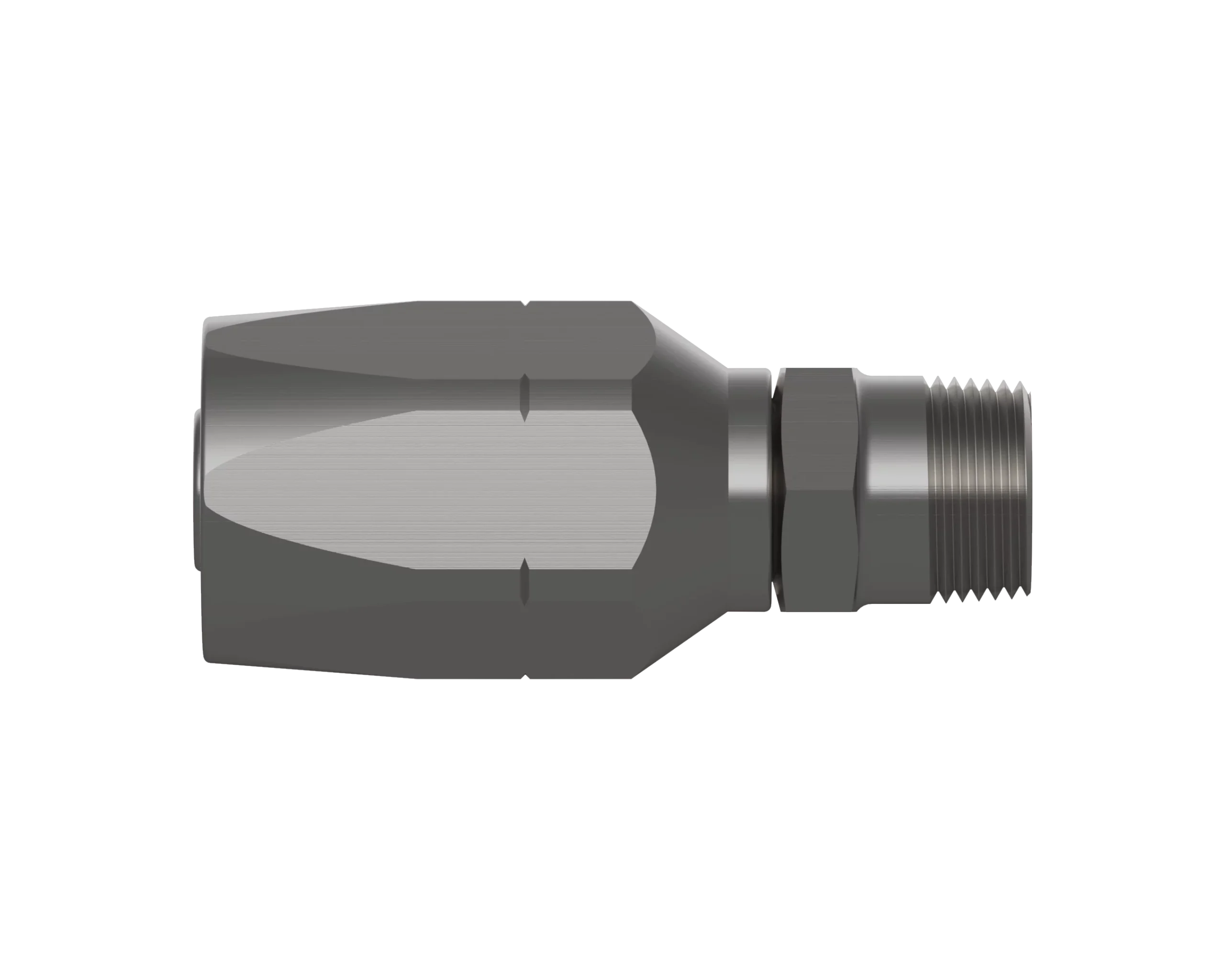

( End Fitting - Straight )
Description:
Equal to Aeroquip P/N 4-4722,
Use with the following hose:
Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13
Specification
Specification Table
| Part Number | EF-1600MP-0808 |
|---|---|
| Hydrasearch Drawing Number | C20560 |
| Hose Id | 1/2 |
| T Thread CL-2B | 1/2”-14 |
| A | 3.09 |
| C | .88 |
| D | 1.58 |
| E | .39 |
| G | 1.12 |
| M | .56 |
| N | .25 |
| V | 2.01 |
| Est. Wt. (lbs.) | .57 |
Components Table
| Desc. | Req’d per Ass’y | 0404 | 0604 | 0606 | 0608 | 0808 | 0810 | Mat’l |
| Nipple | 1 | C19957-1 | C20385-1 | C19958-1 | C20247-1 | C19959-1 | C19960-1 | Monel |
| Socket | 1 | C19794-1 | C19794-1 | C19795-1 | C19680-1 | C19680-1 | C19796-1 | Monel |
| Desc. | Req’d per Ass’y | 1212 | 1612 | 1616 | 2020 | 2424 | 3232 | Mat’l |
| Nipple | 1 | C19961-1 | C20386-1 | C19962-1 | C19963-1 | C19964-1 | C19965-1 | Monel |
| Socket | 1 | C19797-1 | C19797-1 | C19700-1 | C19798-1 | C19799-1 | C19694-1 | Monel |
