EF-1600C-3232

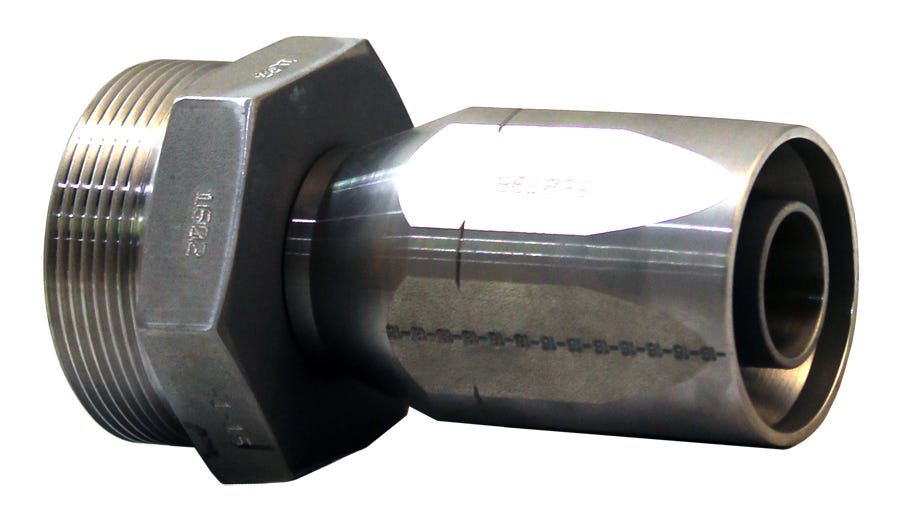

EF-1600C-3232 – End Fittings – Straight – Male “O”-Ring Seal to Hose (MIL-DTL-24787/3, Type C, Group I)

Print Icon Print Download Icon Download PDF

Specification

  • Applicable Hoses: Wire reinforced hoses in accordance with MIL-DTL-24135/1/5/13
  • Component 1: Required per Assembly – 1 Description – Nipple C19909-1 Material – Monel in accordance with QQ-N-281
  • Component 2: Required per Assembly – 1 Description – Socket C19798-1 Material – Monel in accordance with QQ-N-281
  • Ref Dimension M In: 0.81''
  • Dim A Hex: 4.80''
  • Dim D: 2.48''
  • Dim e: 0.81''
  • Equal To Aeroquip No : 4-190909-1 1/4-20''
  • Estimated Weight Per Ft Lbs: 4.75''
  • Hydrasearch Drawing Number: C20070
  • IPS Size: 1-1/4''
  • Mil Spec: MIL-DTL-24787/3
  • Nom Dimension C In: 2.88''
  • Thread Size T Br Thread Cl 3A: 2-3/4"-12''"

Specification Table

Applicable HosesWire reinforced hoses in accordance with MIL-DTL-24135/1/5/13
Component 1Required per Assembly – 1 Description – Nipple C19909-1 Material – Monel in accordance with QQ-N-281
Component 2Required per Assembly – 1 Description – Socket C19798-1 Material – Monel in accordance with QQ-N-281
Ref Dimension M In0.81''
Dim A Hex4.80''
Dim D2.48''
Dim e0.81''
Equal To Aeroquip No 4-190909-1 1/4-20''
Estimated Weight Per Ft Lbs4.75''
Hydrasearch Drawing NumberC20070
IPS Size1-1/4''
Mil SpecMIL-DTL-24787/3
Nom Dimension C In2.88''
Thread Size T Br Thread Cl 3A2-3/4"-12''"
