EF-1600A5-3232
EF-1600A5-3232 – End Fittings – Straight – Flange to Hose (MIL-DTL-24787/1, Type F, Group I, Class II, 150/400 Lb. Flange per MIL-PRF-20042)
Print
Download PDF

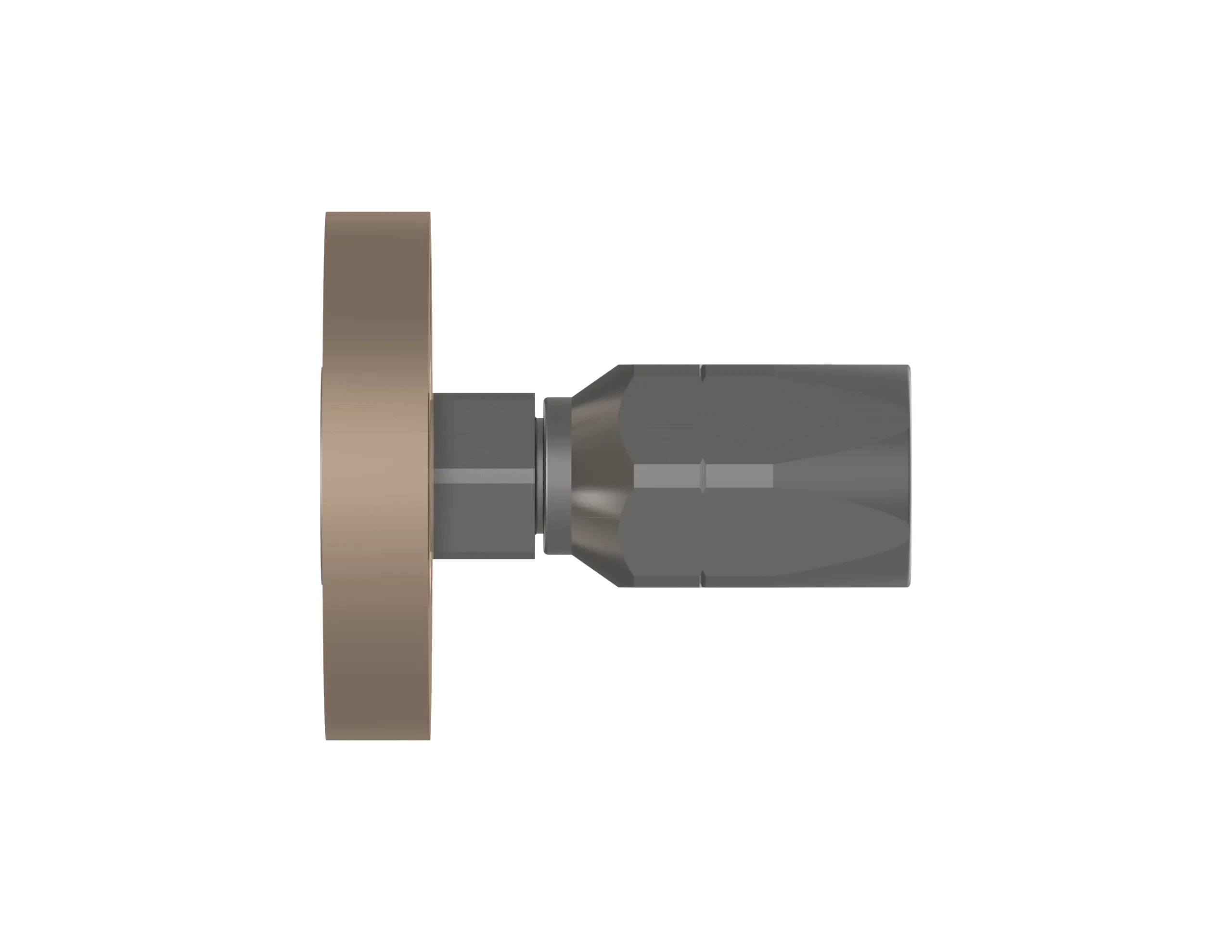

( MIL-DTL-24787/1, Type F, Group I, Class II, 150/400lb, End Fitting - Straight )
Description:
Equal to Aeroquip P/N FC9056-463,
Use with the following hose:
Wire reinforced hoses i.a.w. MIL-DTL-24135/1/5/13
Specification
Specification Table
| Part Number | EF-1600A5-3232 |
|---|---|
| Hydrasearch Drawing Number | C20138 |
| IPS Size | 2 |
| No. of Bolt Holes | 6 |
| A | 5.33 |
| D | 2.89 |
| J | 5.06 |
| K | 3.28 |
| L | 4.44 |
| M | .56 |
| N | .81 |
| S | 1.77 |
| Est. Wt. (lbs.) | 11.06 |
Components Table
| Desc. | Req’d per Ass’y | 0812 | 0816 | 1216 | 1220 | 1616 | 1620 | Mat’l |
| Nipple | 1 | C19839-1 | C20022 | C19840-1 | C20023 | C20024 | C19841 | Monel |
| Socket | 1 | C19797-1 | C19700-1 | C19700-1 | C19798-1 | C19700-1 | C19798-1 | Monel |
| Flange | 1 | C19522 | C19522 | C19525 | C19525 | C19526 | C19526 | Aluminum. Bronze |
| Desc. | Req’d per Ass’y | 1624 | 2024 | 2032 | 2432 | 3232 | Mat’l |
| Nipple | 1 | C20025 | C19842-1 | C19843-1 | C19843-1 | C19844-1 | Moenl |
| Socket | 1 | C19799-1 | C19799-1 | C19694-1 | C19694-1 | C19694-1 | Moenl |
| Flange | 1 | C19526 | C19527 | C19527 | C19528 | C17765 | Aluminum. Bronze |
