EF-1546A4-3-48

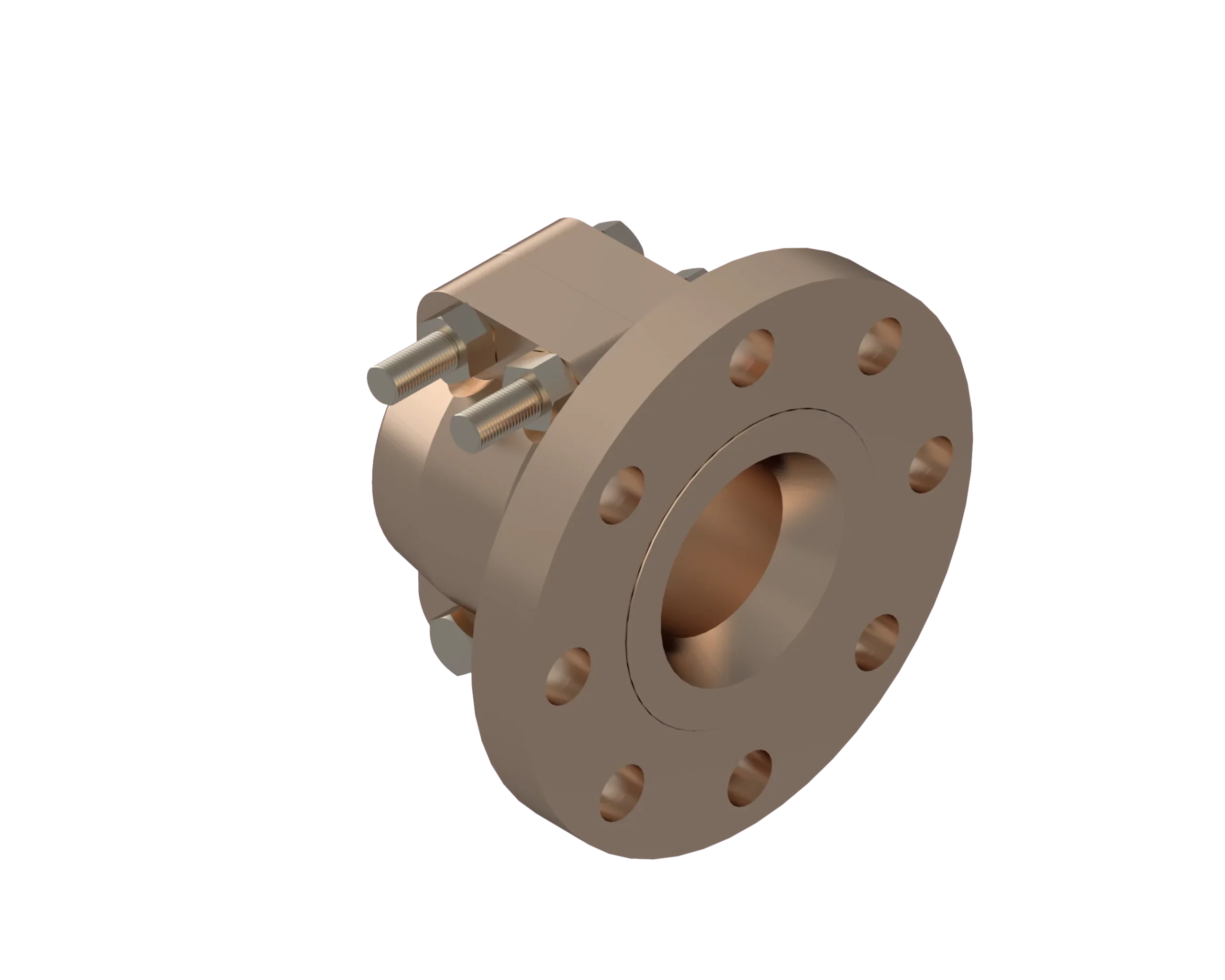

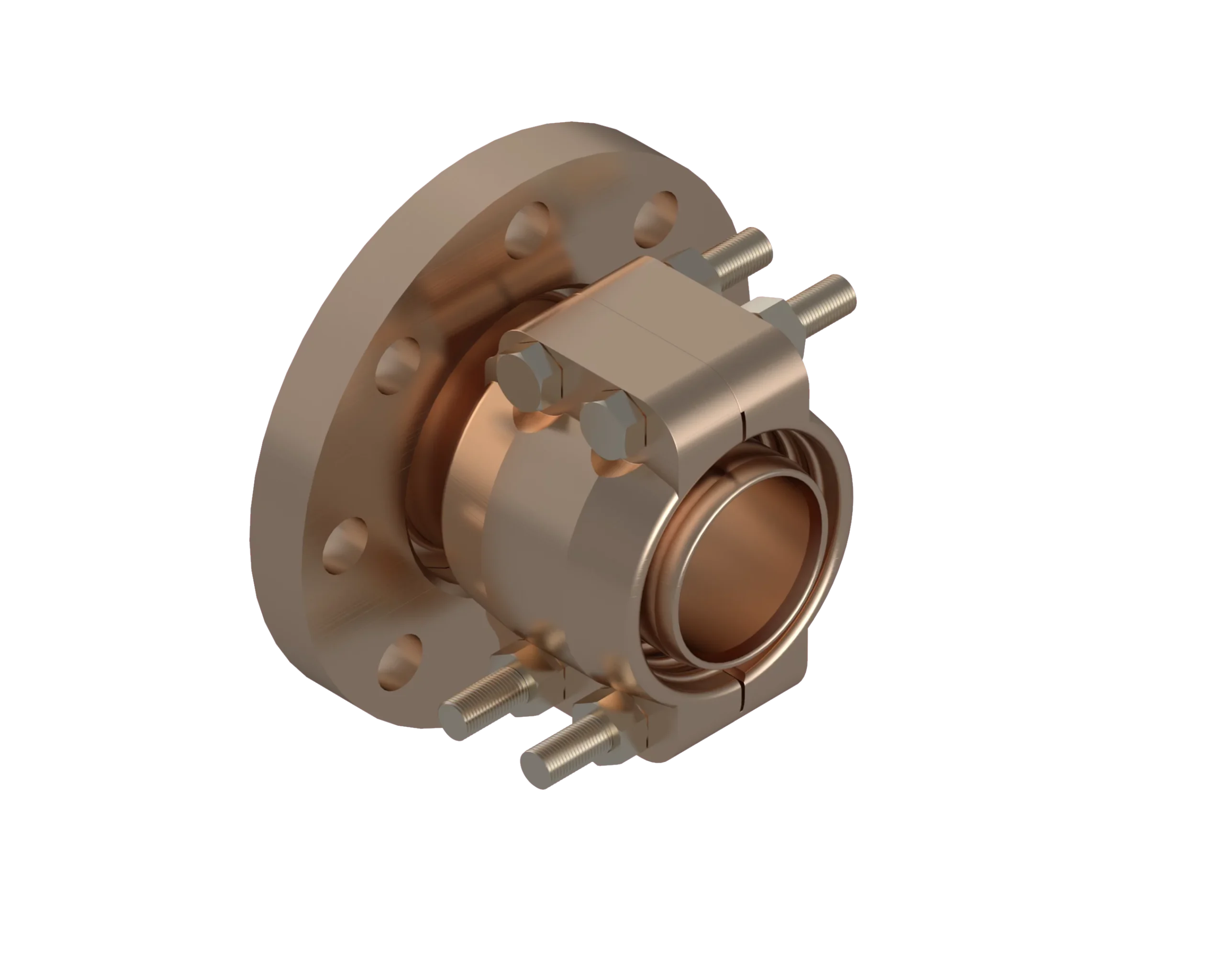

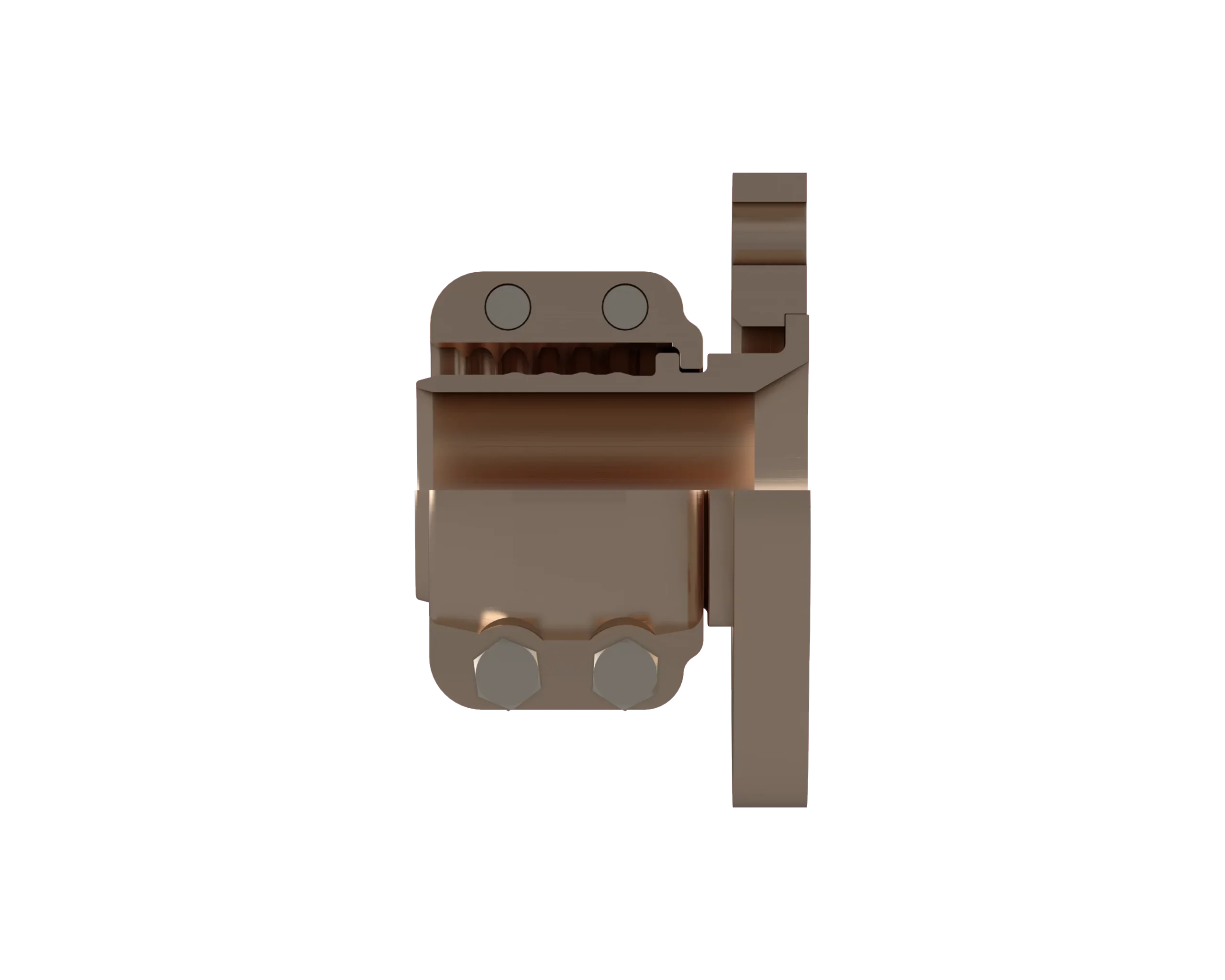

EF-1546A4-3-48 – End Fittings – Straight – Flange to Hose (MIL-DTL-24787/1, Type F, Group X, Class IV, 150 Lb. Flange per MIL-PRF-20042)
Print
Download PDF
( MIL-DTL-24787/1, Type F, Group X, Class IV, 150lb, End Fitting - Straight )
Description:
Equal to Aeroquip P/N FC5309-188,
Use with the following hose:
HS4182 & FC132
Specification
Specification Table
| Part Number | EF-1546A4-3-48 |
|---|---|
| Hydrasearch Drawing Number | C18690 |
| IPS Size | 3 |
| No. of Bolt Holes | 8 |
| M | .56 |
| A | 4.85 |
| D | 1.96 |
| J | 6.63 |
| K | 4.50 |
| L | 5.50 |
| N | .50 |
| S | 3.31 |
| T | 7.65 |
| Est. Wt. (lbs.) | 16.00 |
Components Table
| Description | Req’d per Ass’y | 2-40 | 2.5-40 | 2.5-48 | 3-48 | 3.5-64 | 4-64 | Material |
| Swivel Flange | 1 | C17925 | C17929 | C17931 | C17933 | C17938 | C17940 | Aluminum. Bronze |
| Nipple | 1 | C23042-1 | C17708 | C17857 | C17706 | C17858 | C17707 | Aluminum. Bronze |
| Grip Segment | 2 | D17739-1 | D17739-1 | D17743-1 | D17743-1 | D17726-1 | D17726-1 | Aluminum. Bronze |
| Bolt | 4 | B17747-1 | B17747-1 | B17748-1 | B17748-1 | B17749-1 | B17749-1 | Monel |
| Nut | 4 | B17747-2 | B17747-2 | B17748-2 | B17748-2 | B17749-2 | B17749-2 | Monel |
