EF-1546A1-3-48

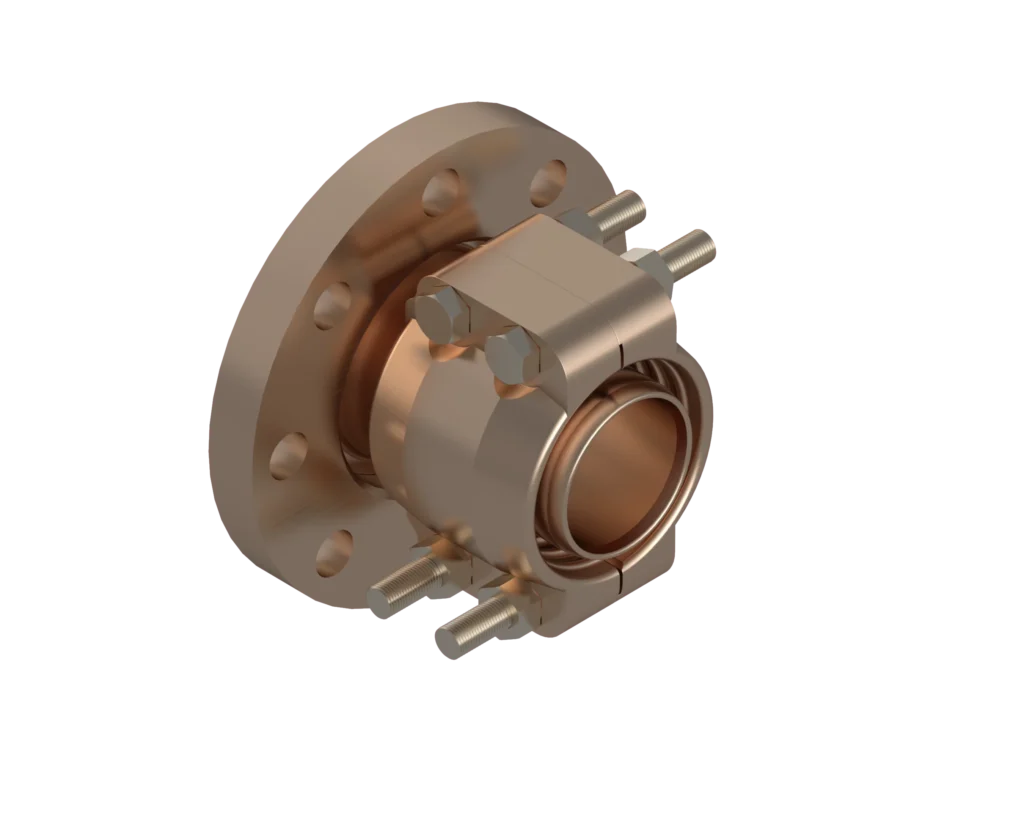

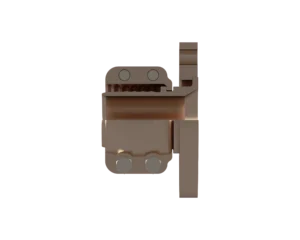

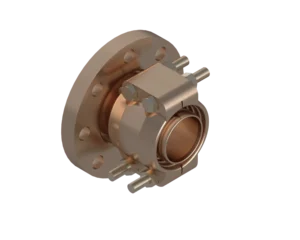

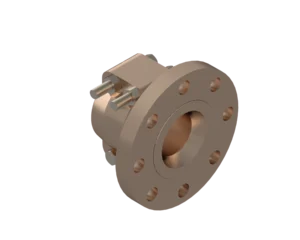

EF-1546A1-3-48 – End Fittings – Straight – Flange to Hose (MIL-DTL-24787/1, Type F, Group X, Class I, 400 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type F, Group X, Class I, 400lb, End Fitting - Straight )

Description:

Equal to Aeroquip P/N FC9568-188,
Use with the following hose: HS4182 & FC132

Specification

  • Part Number: EF-1546A1-3-48
  • Hydrasearch Drawing Number: C18413
  • IPS Size: 3
  • No. of Bolt Holes: 8
  • M: .81
  • A: 4.85
  • D: 1.96
  • J: 8.13
  • K: 4.50
  • L: 6.56
  • N: .94
  • S: 3.31
  • T: 7.65
  • Est. Wt. (lbs.): 23.00

Specification Table

Part NumberEF-1546A1-3-48
Hydrasearch Drawing NumberC18413
IPS Size3
No. of Bolt Holes8
M.81
A4.85
D1.96
J8.13
K4.50
L6.56
N.94
S3.31
T7.65
Est. Wt. (lbs.)23.00

Components Table

DescriptionReq’d per Ass’y2-402.5-402.5-483-483.5-644-64Material
Swivel Flange1C17798C17799C17801C17802C17803C17804Aluminum. Bronze
Nipple1C23042-1C17708C17857C17706C17858C17707Aluminum. Bronze
Grip Segment2D17739-1D17739-1D17743-1D17743-1D17726-1D17726-1Aluminum. Bronze
Bolt4B17747-1B17747-1B17748-1B17748-1B17749-1B17749-1Monel
Nut4B17747-2B17747-2B17748-2B17748-2B17749-2B17749-2Monel
