EF-1489C-2432 – End Fittings – Straight – Male “O”-Ring Seal to Hose 4 Bolt (MIL-DTL-24787/3, Type C, Group XI)
EF-1489C-2432 – End Fittings – Straight – Male “O”-Ring Seal to Hose 4 Bolt (MIL-DTL-24787/3, Type C, Group XI)iso-1-128std-106q-cut-111iso-2-116
EF-1489C-2432

EF-1489C-2432 – End Fittings – Straight – Male “O”-Ring Seal to Hose 4 Bolt (MIL-DTL-24787/3, Type C, Group XI)

Print Icon Print Download Icon Download PDF

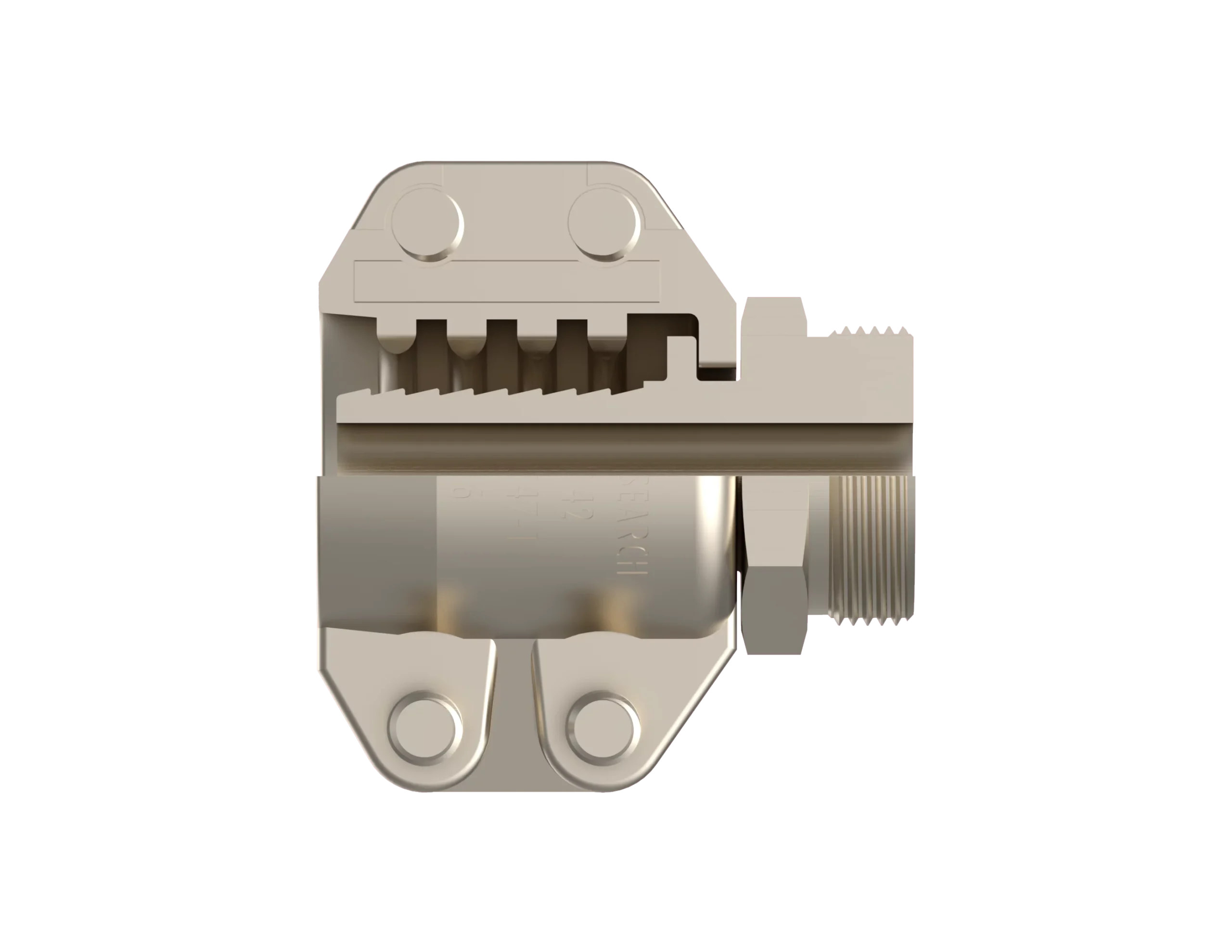

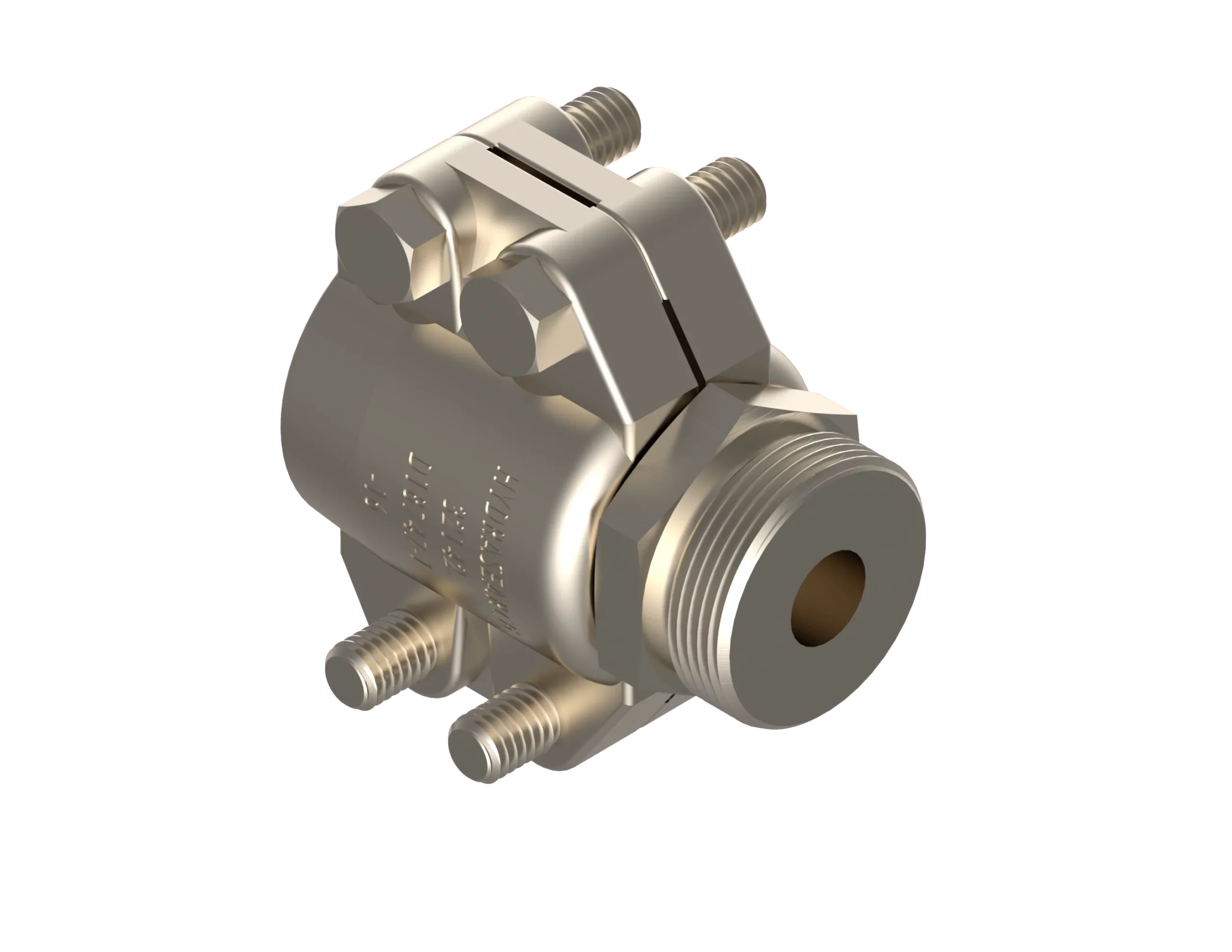

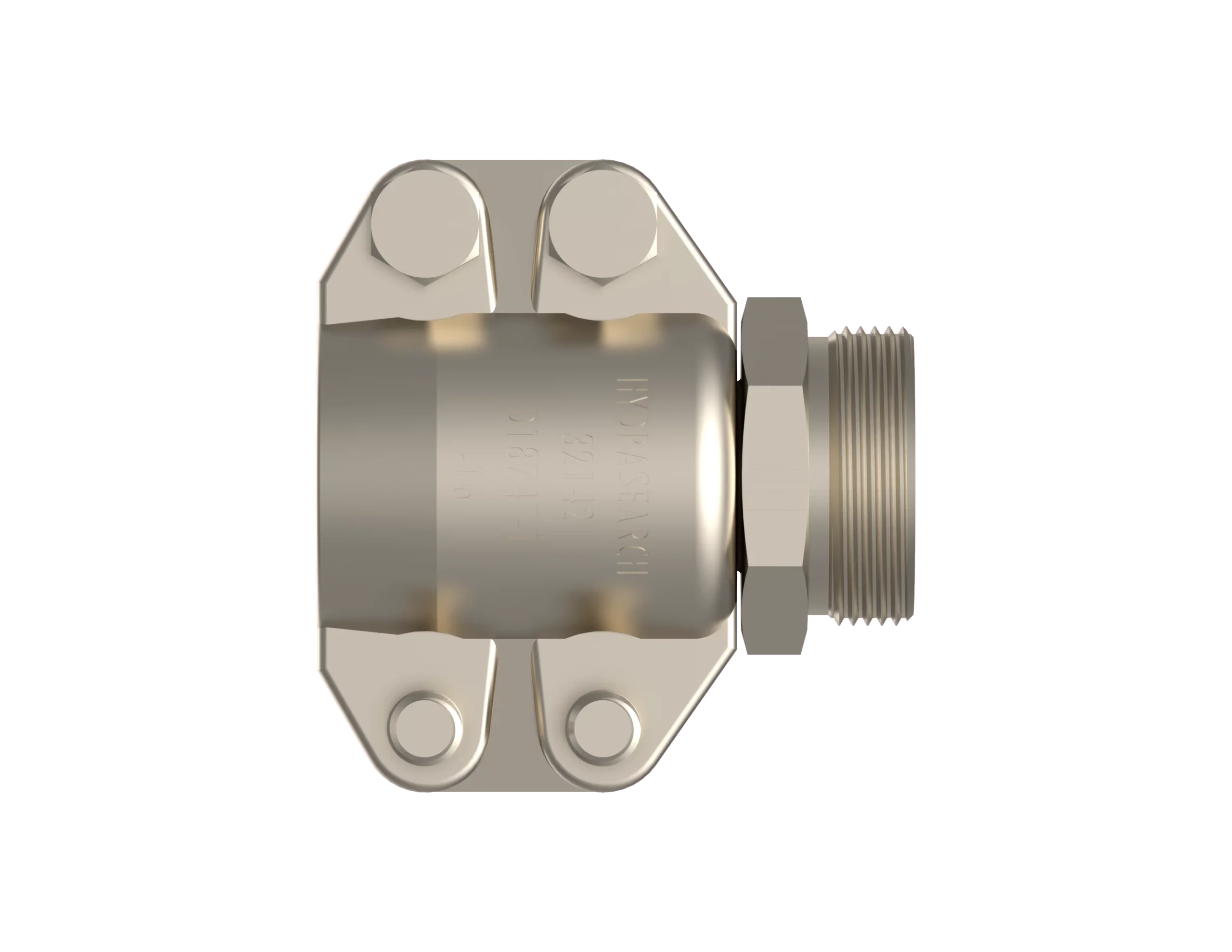

( MIL-DTL-24787/3, Type C, Group XI, End Fitting - Straight )

Description:

Equal to Aeroquip P/N FC7180-4,
Use with the following hose: HS133

Specification

  • Part Number: EF-1489C-2432
  • Hydrasearch Drawing Number: C18965
  • IPS Size: 1.50
  • Thread CL-2B: 3-1/16”-12
  • A: 5.36
  • C: 3.12
  • D: 2.06
  • E: 1.39
  • M: .88
  • V: 3.81
  • X: 5.04
  • Est. Wt. (lbs.): 11.40

Specification Table

Part NumberEF-1489C-2432
Hydrasearch Drawing NumberC18965
IPS Size1.50
Thread CL-2B3-1/16”-12
A5.36
C3.12
D2.06
E1.39
M.88
V3.81
X5.04
Est. Wt. (lbs.)11.40

Components Table

DescriptionReq’d per Ass’y0816121616161620201620202024242424323232Mat’l
Nipple1C18877C18847C18848C18849c18878C18850C18851C18852C18853C18854Monel
Segment2D18747-1D18747-1D18747-1D18748-1D18747-1D18748-1D18750-1D18750-1D18704-1D18704-1Monel
Bolt4B18746B18746B18746B18746B18746B18746B18755B18755B18718B18718Monel
