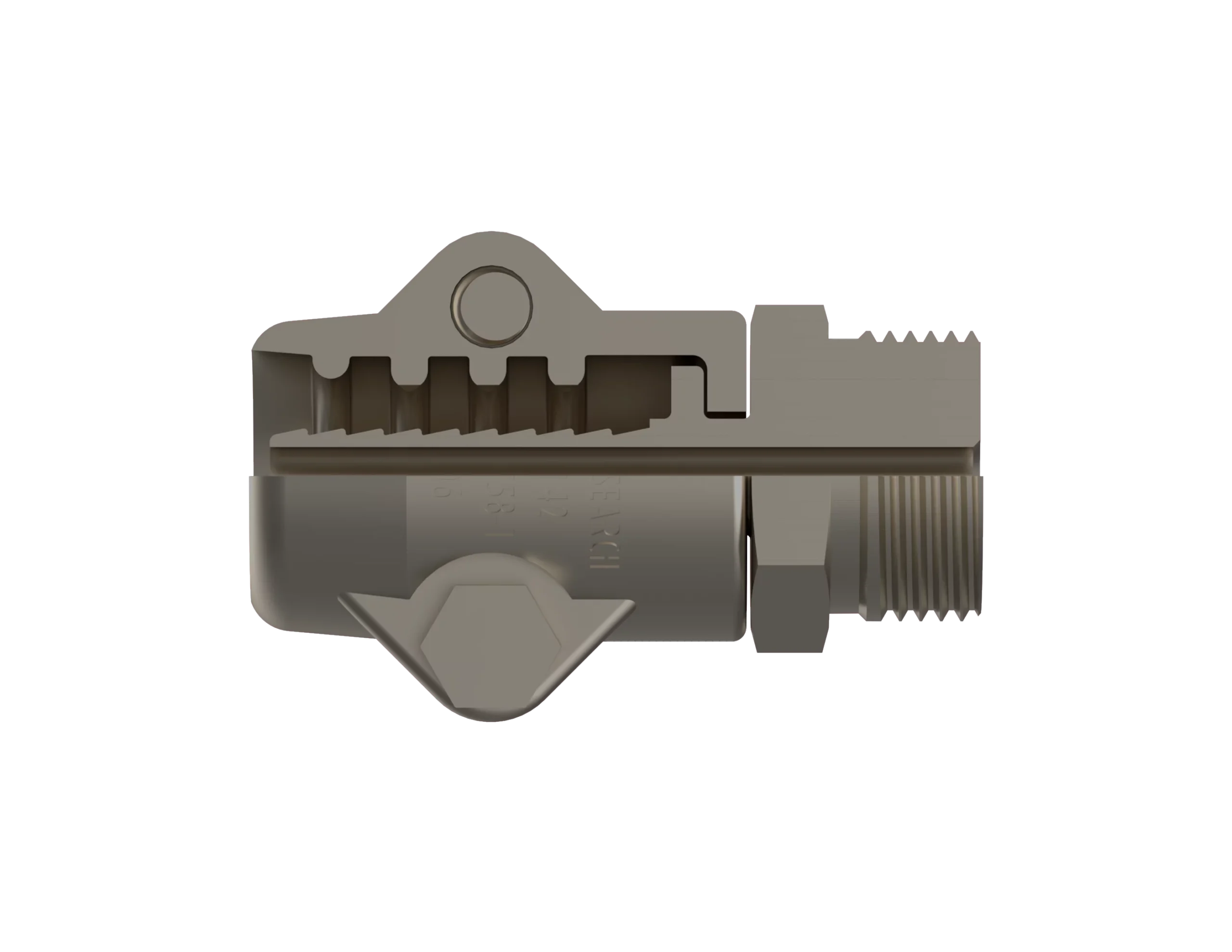

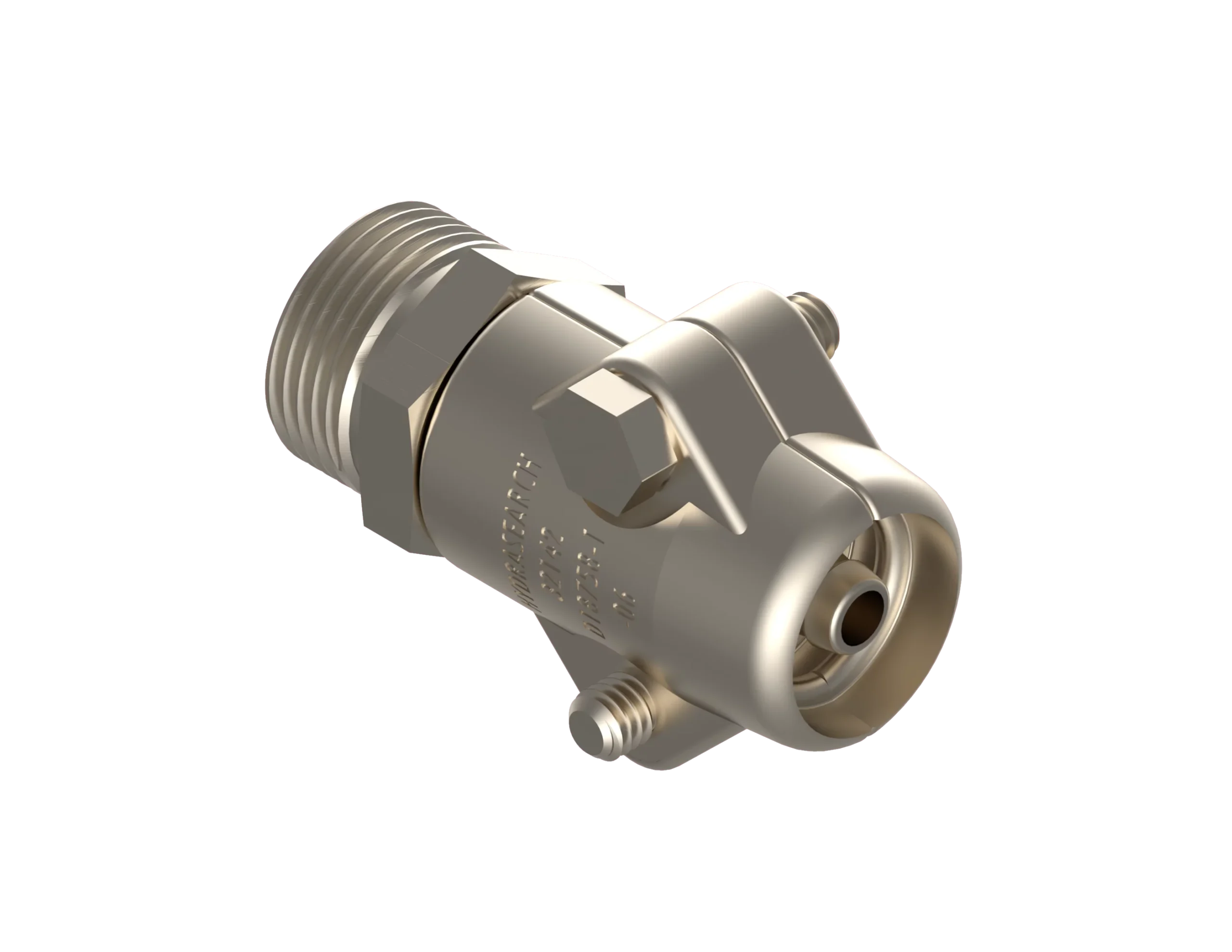

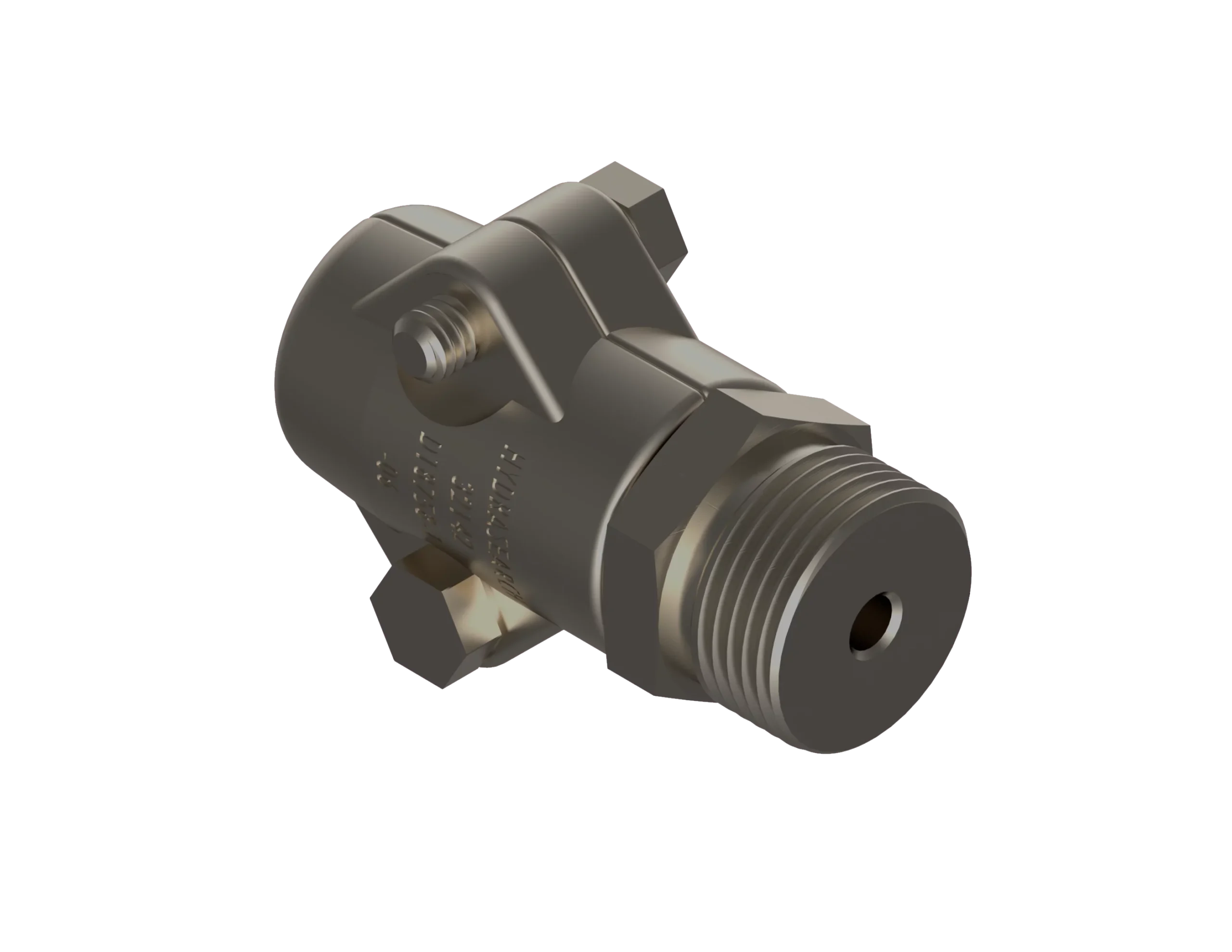

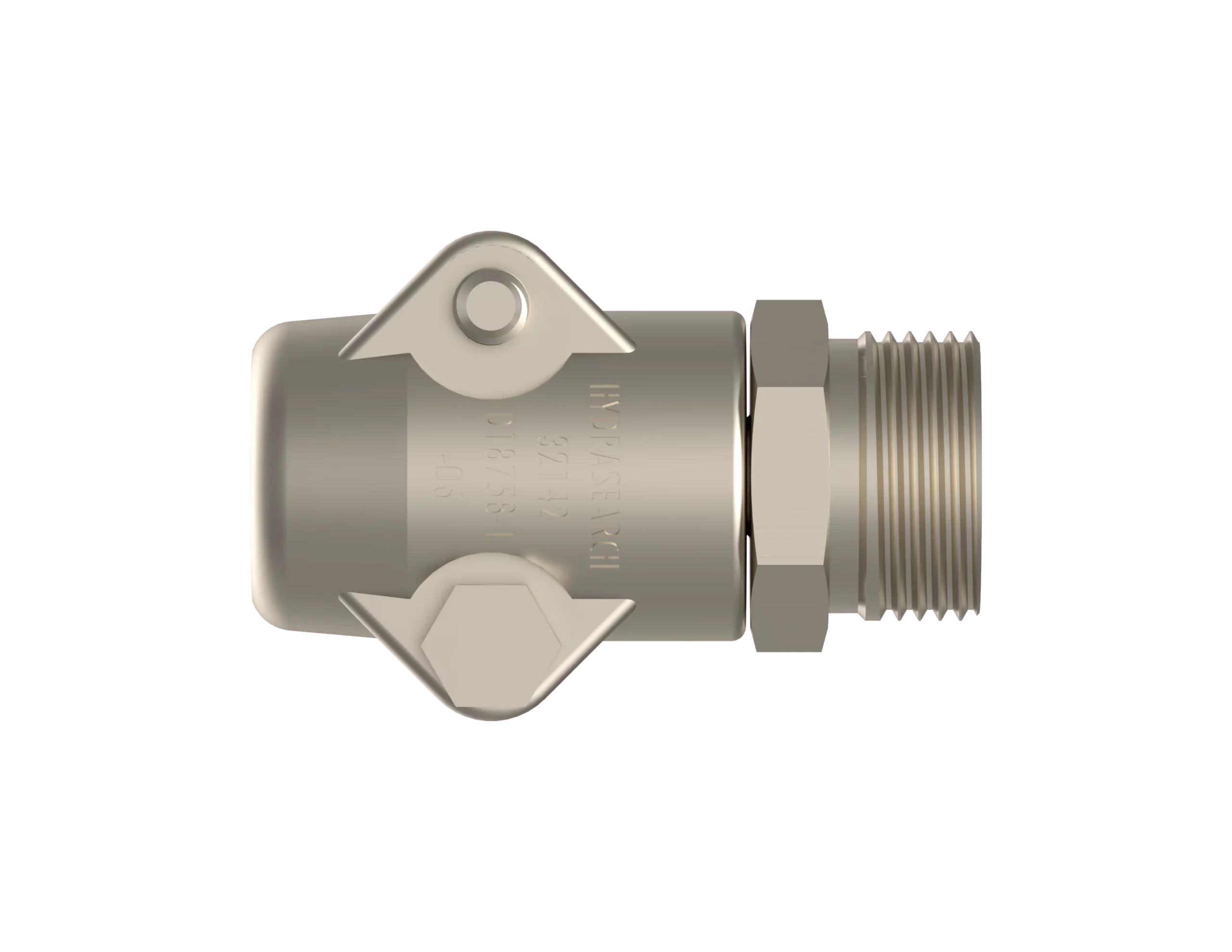

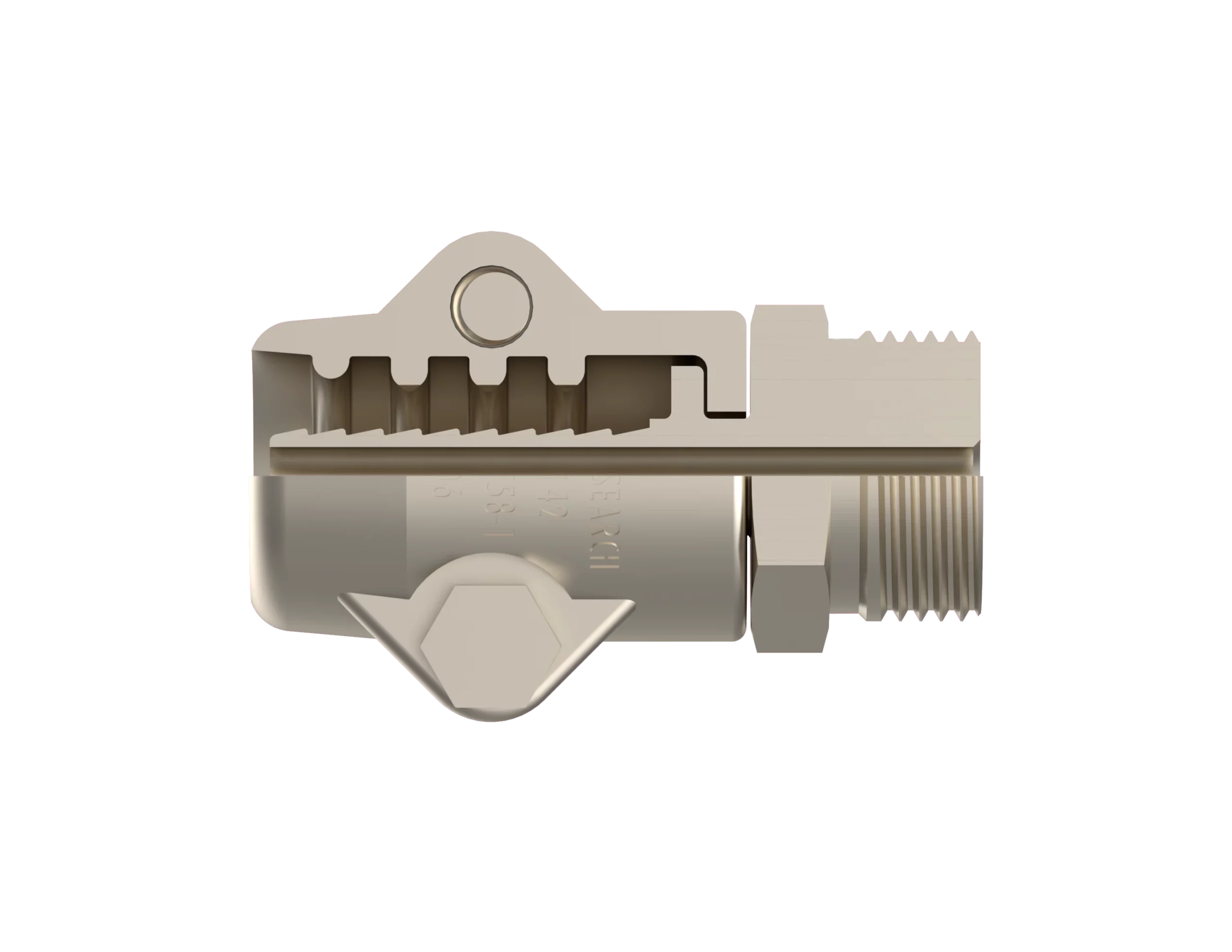

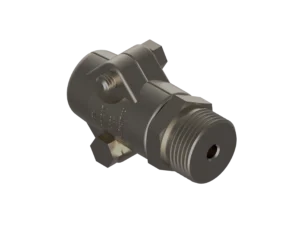

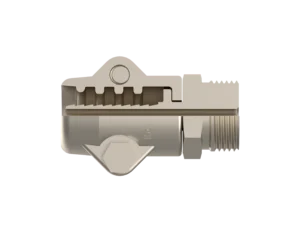

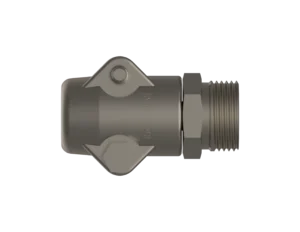

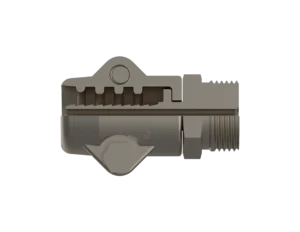

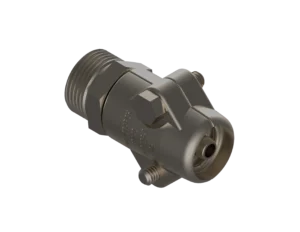

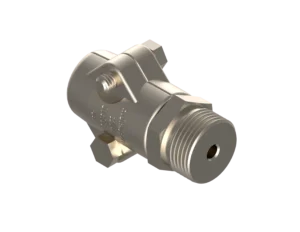

( MIL-DTL-24787/3, Type C, Group XI, End Fitting - Straight )

Description:

Equal to Aeroquip P/N FC7180-4,
Use with the following hose: HS133

Specification

  • Part Number: EF-1489C-0608
  • Hydrasearch Drawing Number: C18953
  • IPS Size: 3/8
  • Thread CL-2B: 1-3/8”-12
  • A: 3.10
  • C: 1.44
  • D: 1.28
  • E: .380
  • M: .62
  • V: 2.08
  • X: 2.40
  • Est. Wt. (lbs.): 1.40

Specification Table

Part NumberEF-1489C-0608
Hydrasearch Drawing NumberC18953
IPS Size3/8
Thread CL-2B1-3/8”-12
A3.10
C1.44
D1.28
E.380
M.62
V2.08
X2.40
Est. Wt. (lbs.)1.40

Components Table

DescriptionReq’d per Ass’y0406040806060608061208080812Mat’l
Nipple1C18842C18843C18875C18844C18876C18845C18846Monel
Segment2C18758-1C18640-1D18758-1C18640-1D18743-1C18640-1D18743-1Monel
Bolt2B18759B18645B18759B18645B18745B18645B18745Monel
