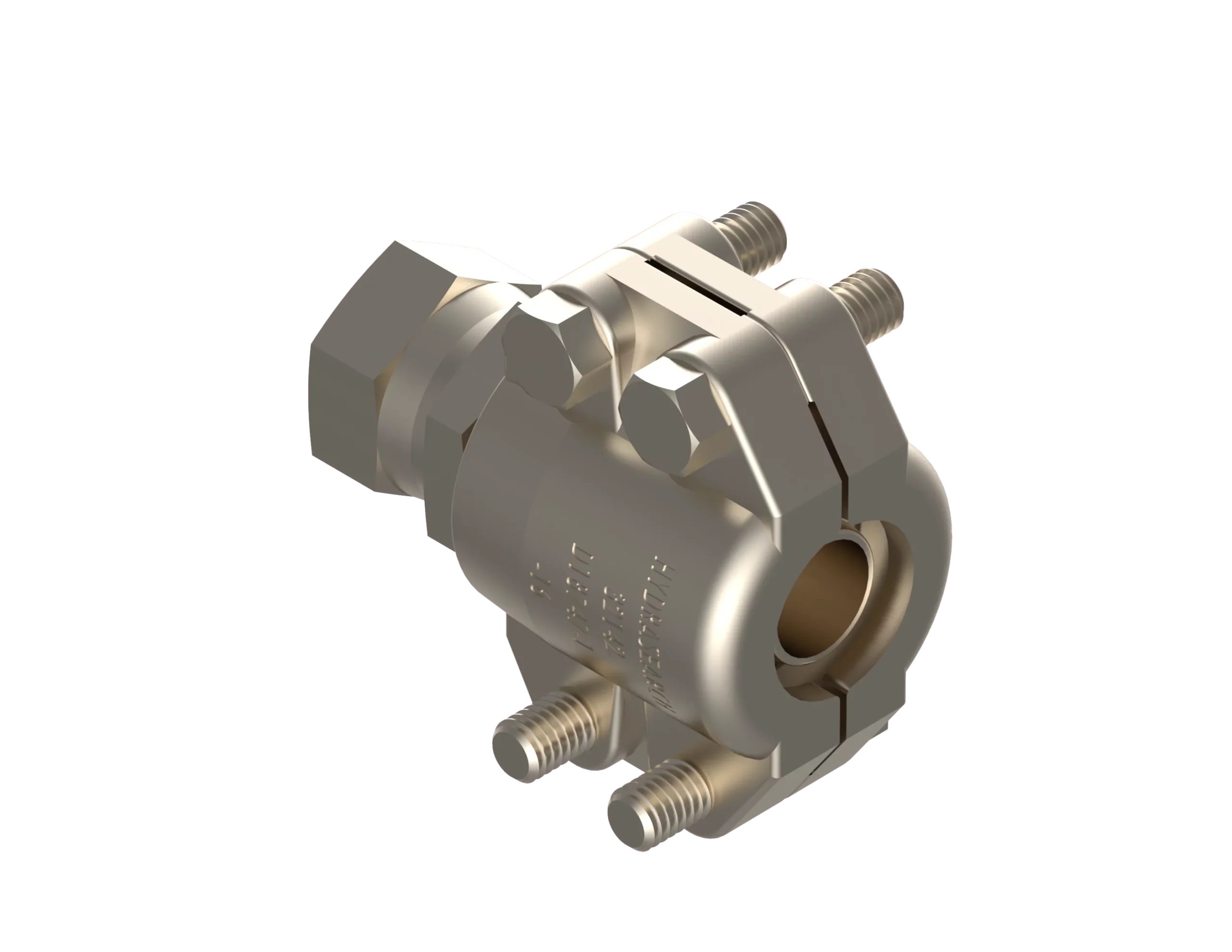

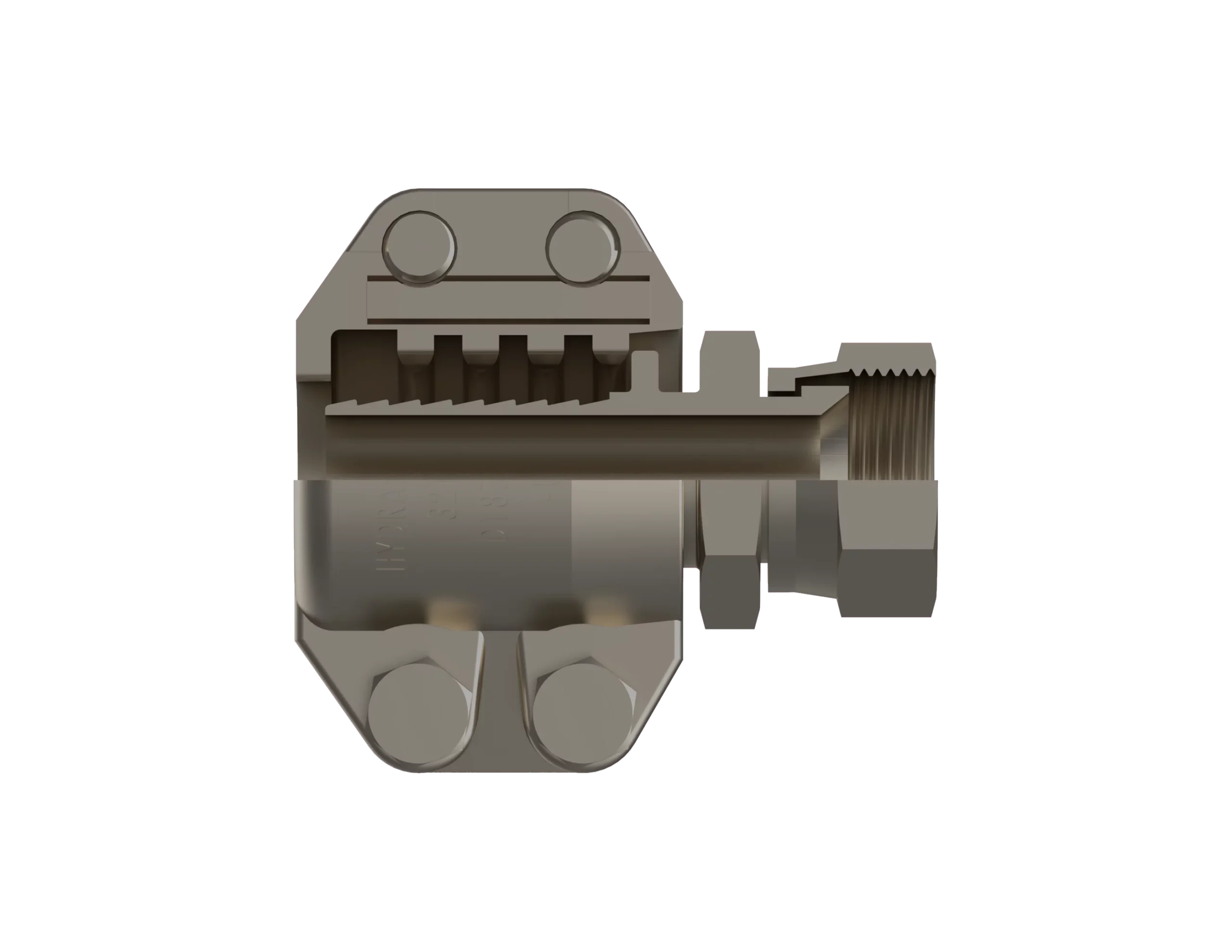

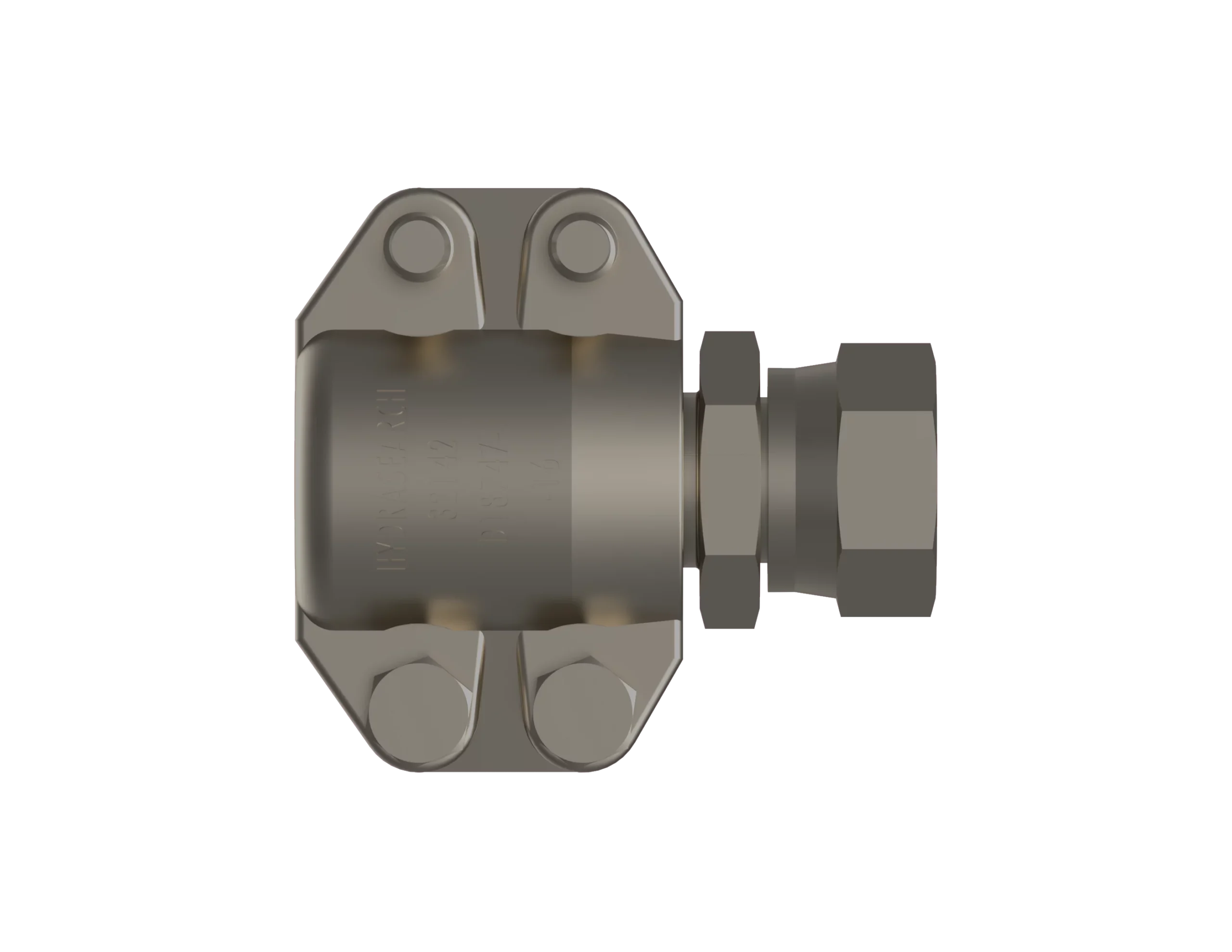

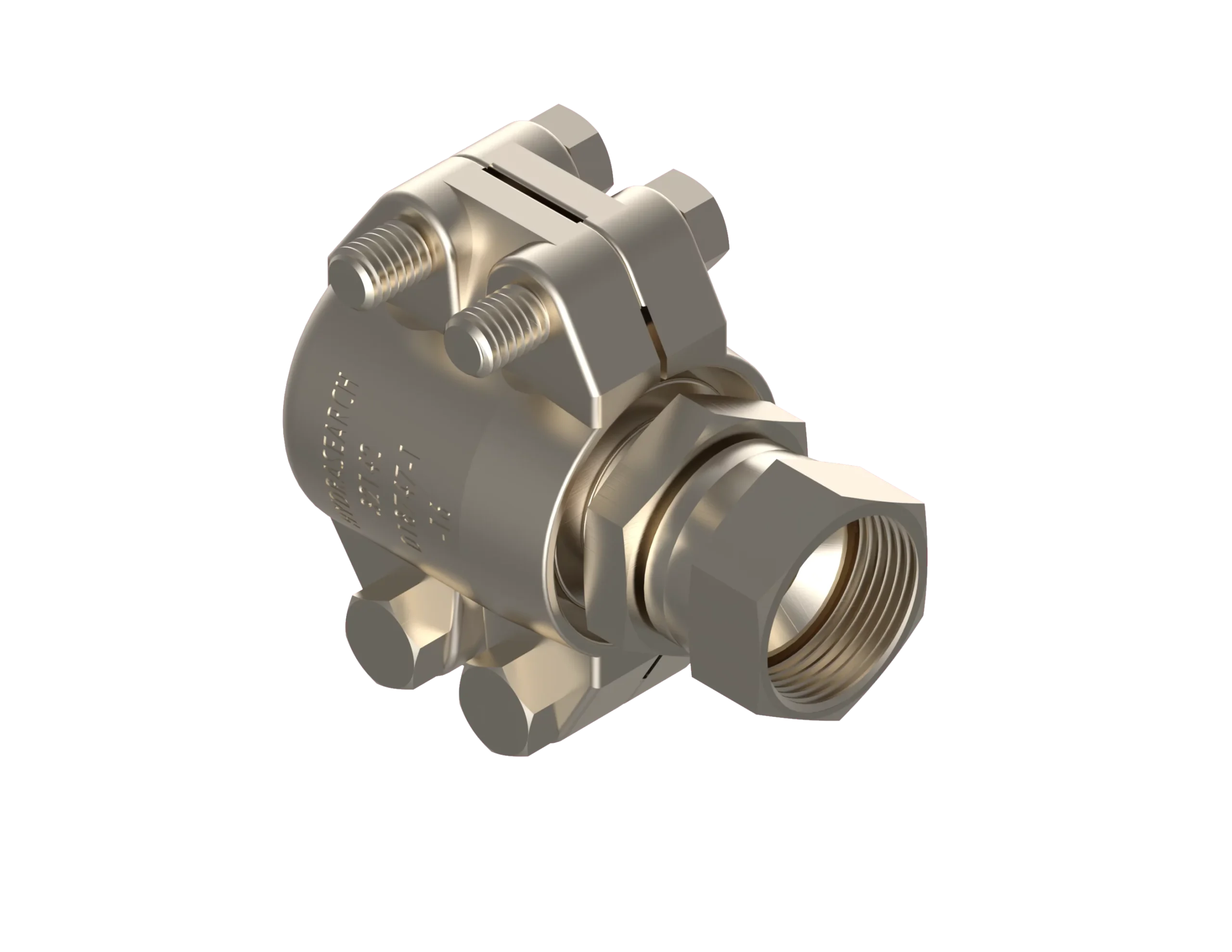

EF-1489A-2424 – End Fittings – Straight – S.A.E. 37º Flare Swivel (J.I.C.) to Hose 4 Bolt (MIL-DTL-24787/2, Type A, Group XI)
EF-1489A-2424 – End Fittings – Straight – S.A.E. 37º Flare Swivel (J.I.C.) to Hose 4 Bolt (MIL-DTL-24787/2, Type A, Group XI)std-1-5q-cut-1-3iso-2-111iso-2-1-3iso-1-123iso-1-1-3std-101q-cut-106
EF-1489A-2424

EF-1489A-2424 – End Fittings – Straight – S.A.E. 37º Flare Swivel (J.I.C.) to Hose 4 Bolt (MIL-DTL-24787/2, Type A, Group XI)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/2, Type A, Group XI, J.I.C. End Fitting - Straight )

Description:

Equal to Aeroquip P/N FC7100-4,
Use with the following hose: HS133

Specification

  • Part Number: EF-1489A-2424
  • Hydrasearch Drawing Number: C18942
  • IPS Size: 1.50
  • Thread CL-2B: 1-7/8”-12
  • A: 5.19
  • C: 2.25
  • D: 2.69
  • E: 1.30
  • M: .67
  • V: 3.00
  • W: 2.25
  • X: 4.42
  • Est. Wt. (lbs.): 4.50

Specification Table

Part NumberEF-1489A-2424
Hydrasearch Drawing NumberC18942
IPS Size1.50
Thread CL-2B1-7/8”-12
A5.19
C2.25
D2.69
E1.30
M.67
V3.00
W2.25
X4.42
Est. Wt. (lbs.)4.50

Components Table

DescriptionReq’d per Ass’y161620162020242024243232Mat’l
Nipple Ass'y1C18890C18891C18892C18893C18894C18895Monel
Segment2D18747-1D18747-1D18748-1D18748-1D18750-1D18704-1Monel
Bolt4B18746B18746B18746B18746B18755B18718Monel
