EF-1488C-2024 – End Fittings – Straight – Male “O”-Ring Seal to Hose (MIL-DTL-24787/3, Type C, Group VIII)
EF-1488C-2024 – End Fittings – Straight – Male “O”-Ring Seal to Hose (MIL-DTL-24787/3, Type C, Group VIII)
EF-1488C-2024

EF-1488C-2024 – End Fittings – Straight – Male “O”-Ring Seal to Hose (MIL-DTL-24787/3, Type C, Group VIII)

Print Icon Print Download Icon Download PDF

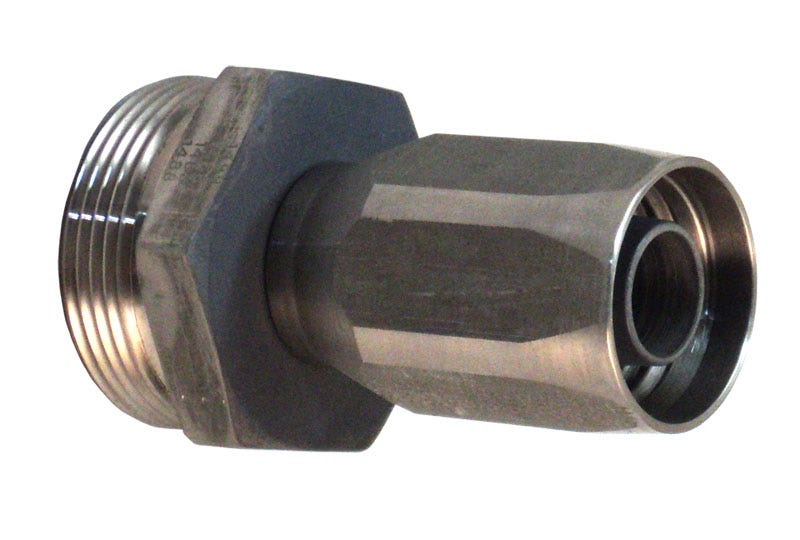

( MIL-DTL-24787/3, Type C, Group VIII, Equal to Aeroquip )

Description:

Equal to Aeroquip P/N 4-190911,
Use with the following hose: Synthetic yarn and wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Applicable Hoses: Synthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
  • Component 1: Required per Assembly – 1 Description – Nipple C19020 Material – Monel in accordance with QQ-N-281
  • Component 2: Required per Assembly – 1 Description – Socket C18990-2 Material – Monel in accordance with QQ-N-281
  • M: '0.75
  • A: '3.12
  • C: '3
  • G: '2.00
  • Equal To Aeroquip No : 4-190911-1 1/4-24
  • Est. Wt. (lbs.): '2.9
  • Hose Size: '1-1/2
  • Hydrasearch Drawing Number: C19721
  • Mil Spec: MIL-DTL-24787/3
  • NSN No.: 4730-01-416-6910
  • Thread Size T Br Thread Cl 3A: '2-3/4"-12

Specification Table

Applicable HosesSynthetic yarn and wire reinforced hoses in accordance with MIL-DTL-24136/3
Component 1Required per Assembly – 1 Description – Nipple C19020 Material – Monel in accordance with QQ-N-281
Component 2Required per Assembly – 1 Description – Socket C18990-2 Material – Monel in accordance with QQ-N-281
M '0.75
A '3.12
C '3
G '2.00
Equal To Aeroquip No 4-190911-1 1/4-24
Est. Wt. (lbs.) '2.9
Hose Size '1-1/2
Hydrasearch Drawing NumberC19721
Mil Spec MIL-DTL-24787/3
NSN No. 4730-01-416-6910
Thread Size T Br Thread Cl 3A '2-3/4"-12
