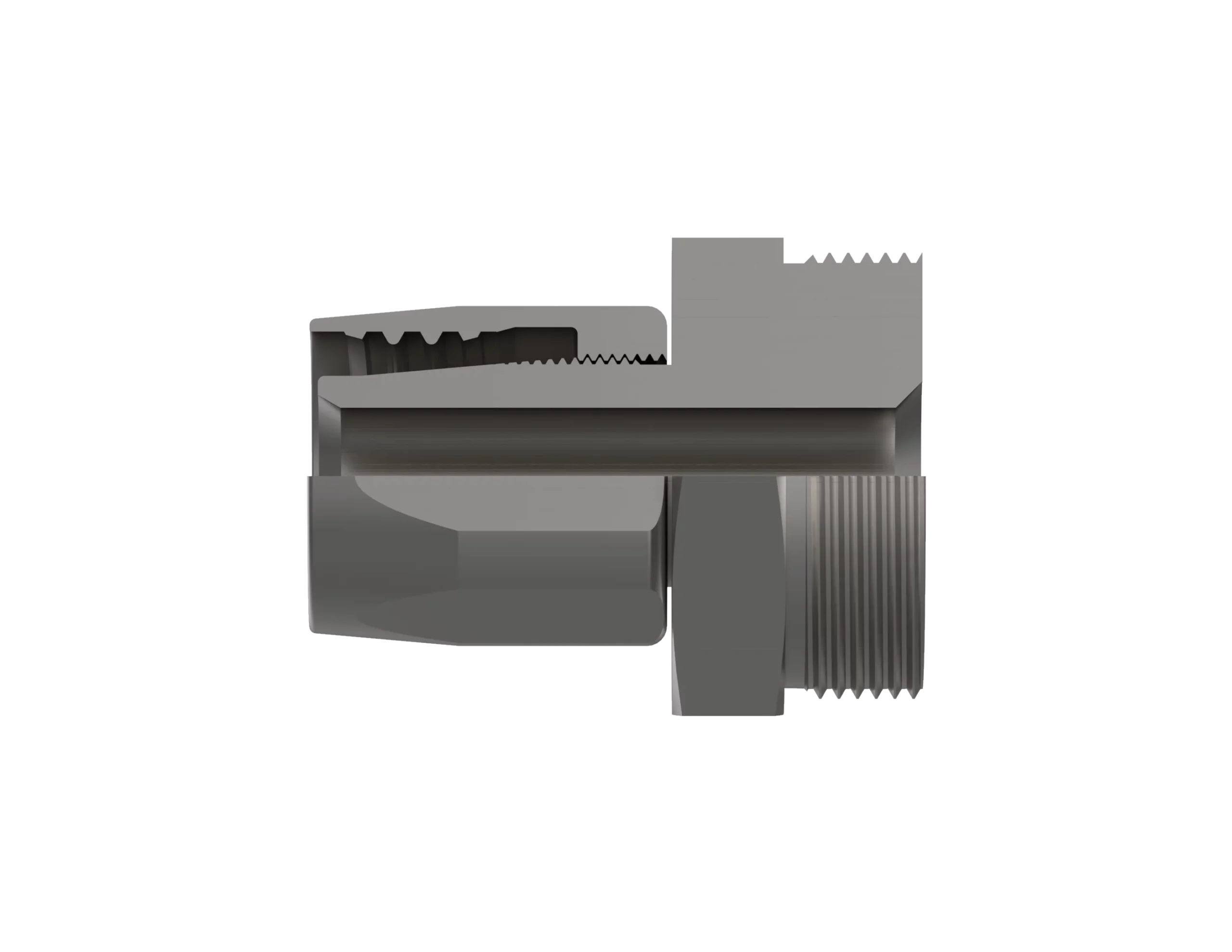

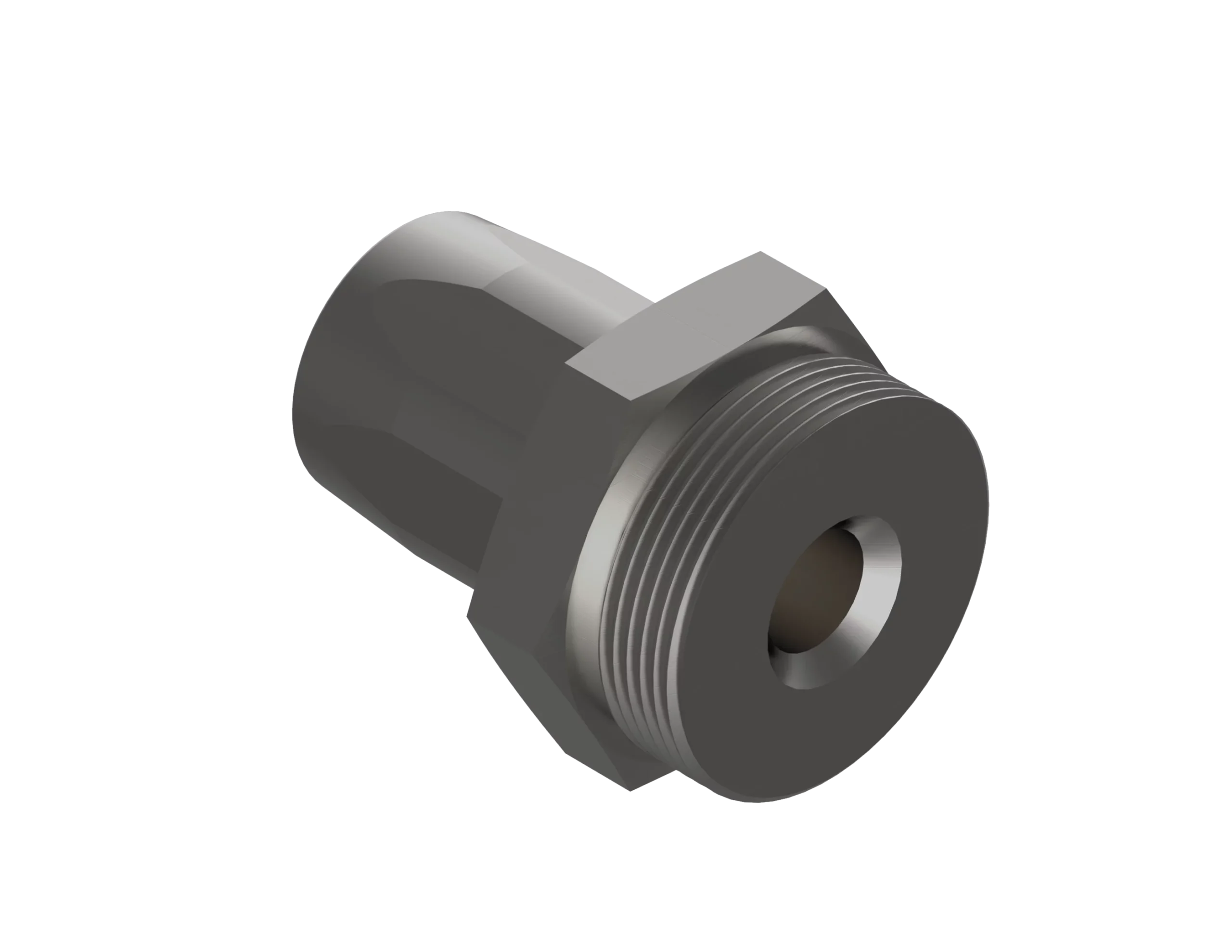

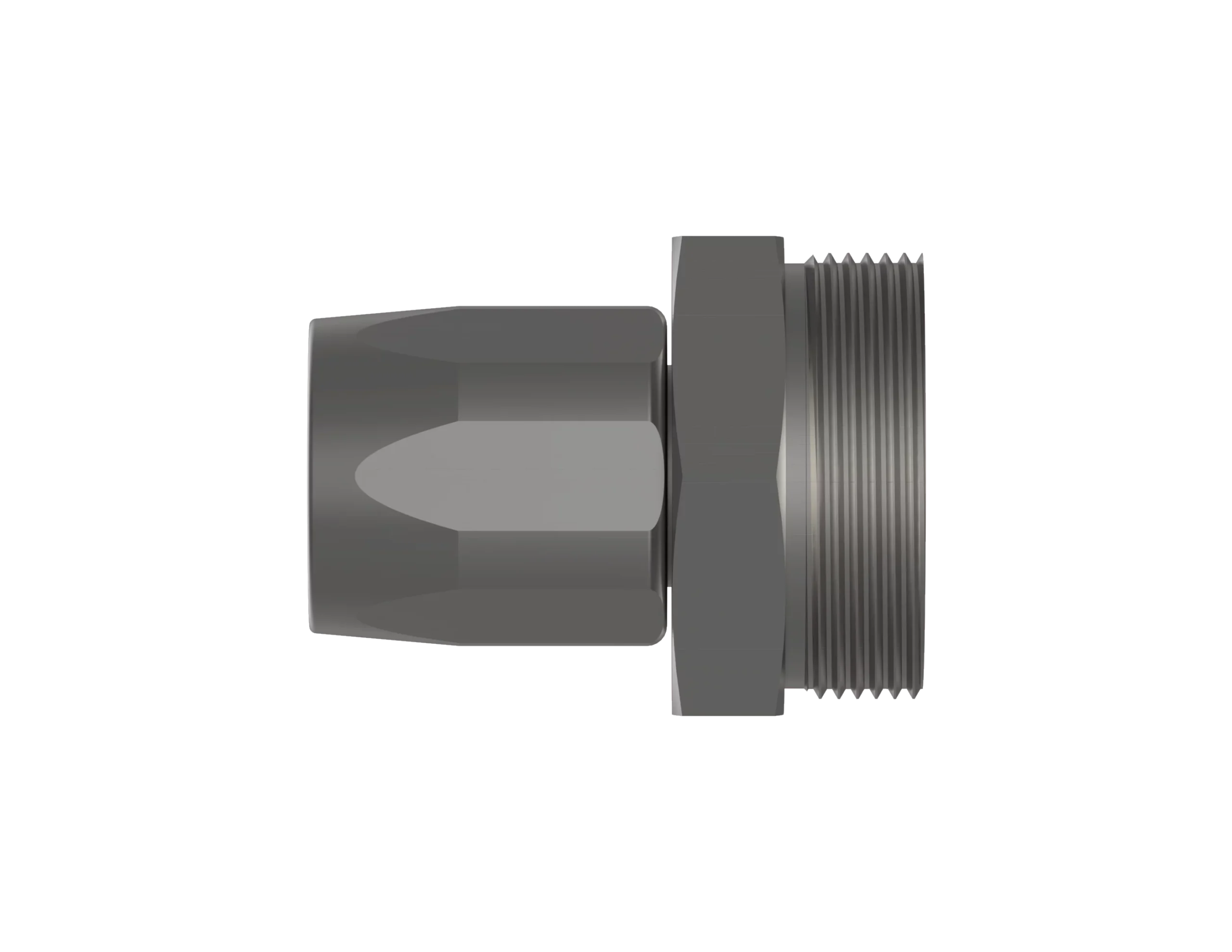

( MIL-DTL-24787/3, Type C, Group VIII, End Fitting - Straight )

Description:

Equal to Aeroquip P/N 4-190911,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-1488C-1620
  • Hydrasearch Drawing Number: -
  • IPS Size: 1
  • T Thread CL-2A: 1-5/16”-12
  • A: 3.12
  • C: 2.38
  • D: -
  • G: 1.75
  • M: .75
  • Est. Wt. (lbs.): -

Specification Table

Part NumberEF-1488C-1620
Hydrasearch Drawing Number-
IPS Size1
T Thread CL-2A1-5/16”-12
A3.12
C2.38
D-
G1.75
M.75
Est. Wt. (lbs.)-

Components Table

DescriptionReq’d per Ass’y1216162020242432Material
Nipple1C19018C19019C19020C19021Monel
Socket1C18667-2C18703-2C18990-2C18662Monel
