EF-1488A1-0816 – End Fittings – Straight – Flange to Hose (MIL-DTL-24787/1, Type F, Group VIII, Class I, 400 Lb. Flange per MIL-PRF-20042)
EF-1488A1-0816 – End Fittings – Straight – Flange to Hose (MIL-DTL-24787/1, Type F, Group VIII, Class I, 400 Lb. Flange per MIL-PRF-20042)iso-1-74std-69q-cut-72iso-2-70

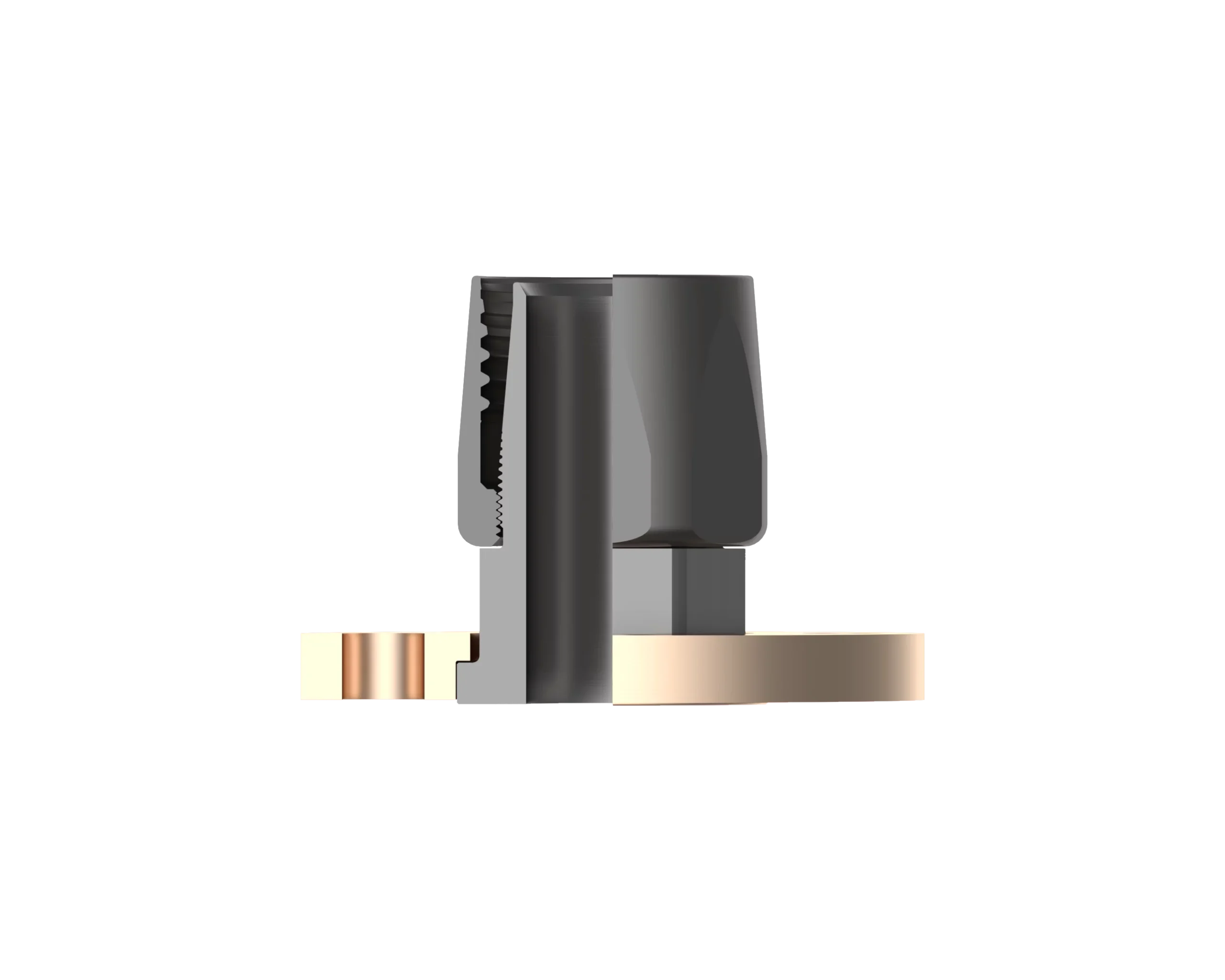

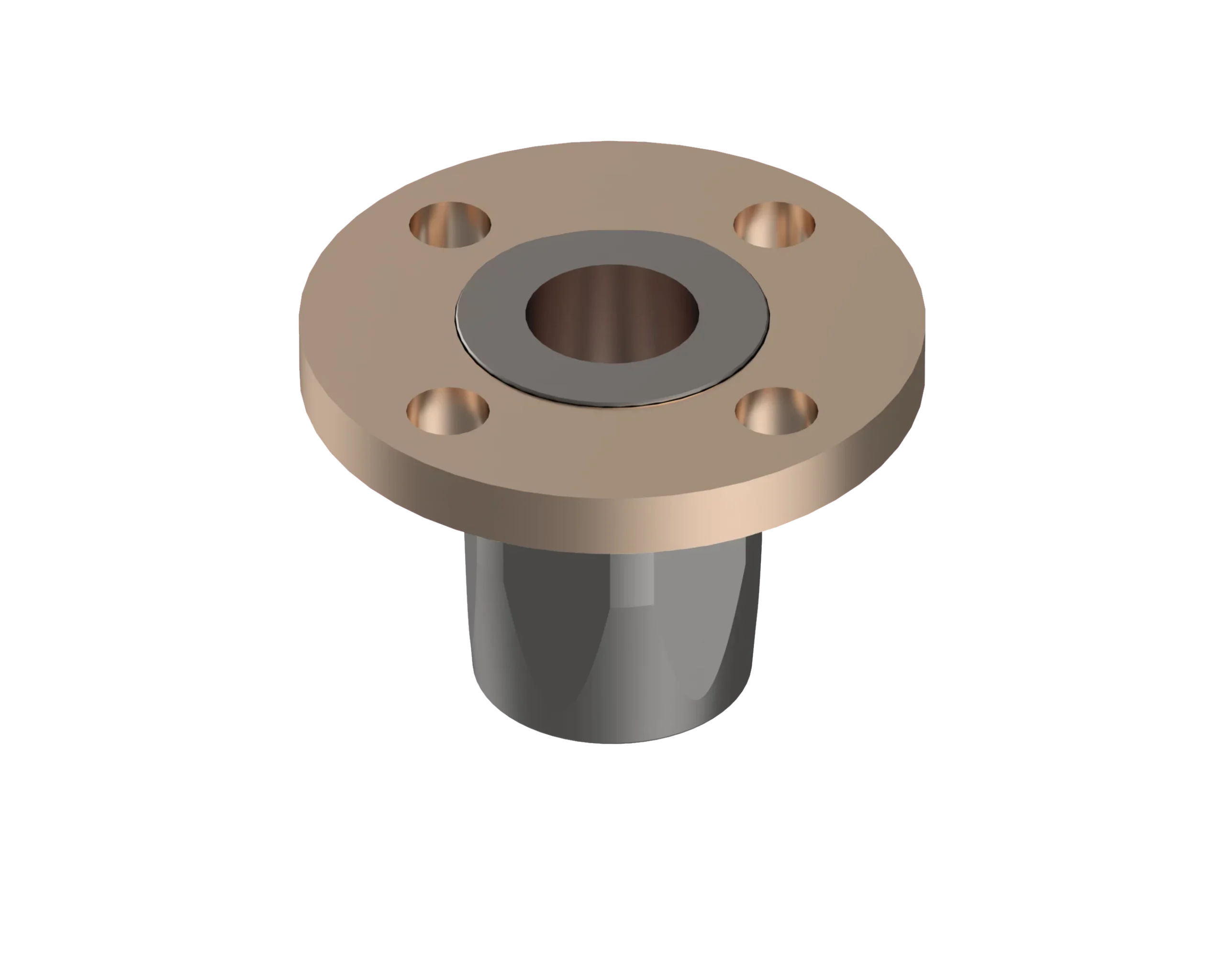

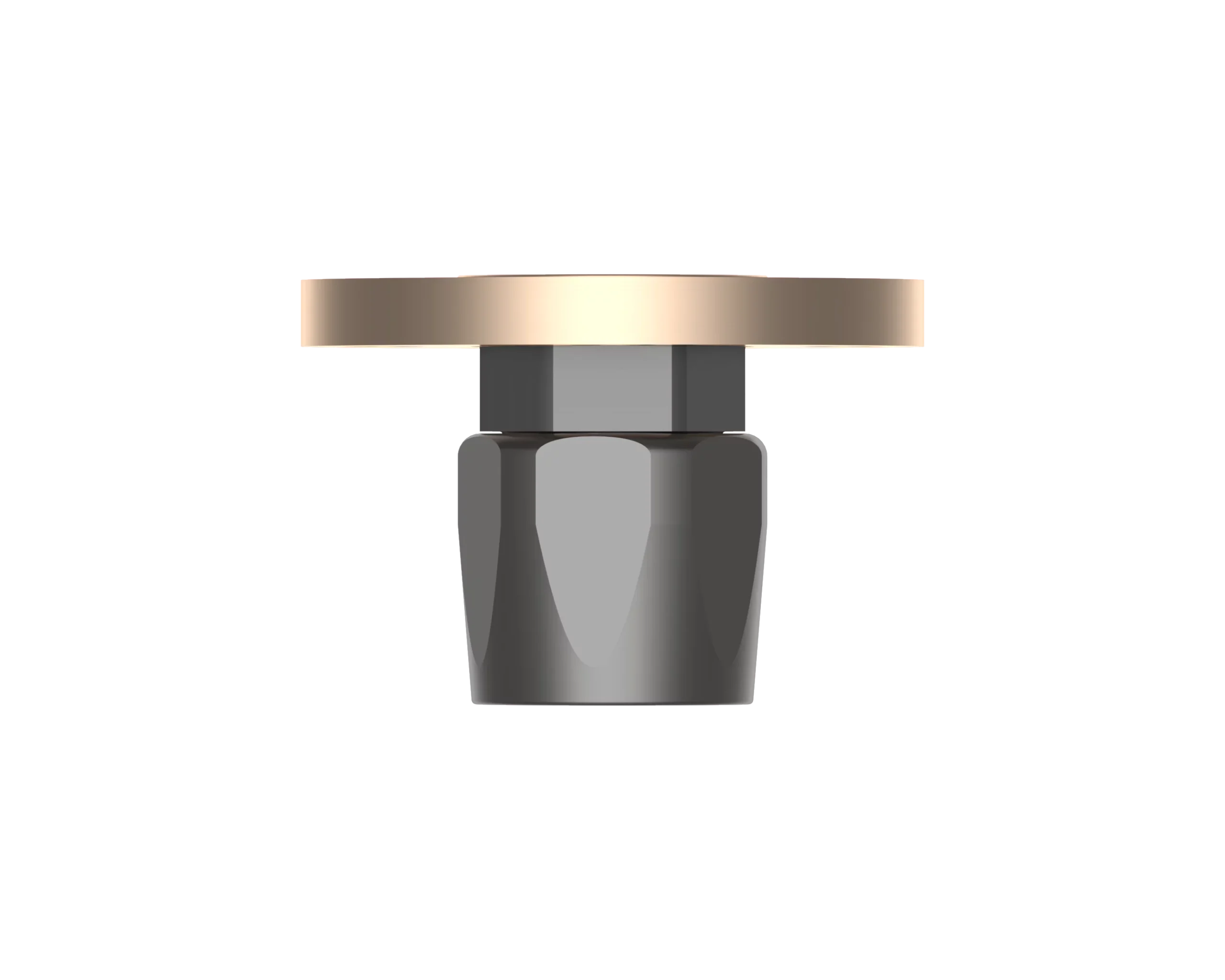

EF-1488A1-0816

EF-1488A1-0816 – End Fittings – Straight – Flange to Hose (MIL-DTL-24787/1, Type F, Group VIII, Class I, 400 Lb. Flange per MIL-PRF-20042)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/1, Type F, Group VIII, Class I, 400lb, End Fitting - Straight )

Description:

Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-1488A1-0816
  • Hydrasearch Drawing Number: C19562
  • IPS Size: 1/2
  • No. of Bolt Holes: 4
  • A: 2.80
  • D: 1.53
  • J: 4.00
  • K: 1.50
  • L: 2.88
  • M: .56
  • N: .69
  • S: .71
  • Est. Wt. (lbs.): 1.90

Specification Table

Part NumberEF-1488A1-0816
Hydrasearch Drawing NumberC19562
IPS Size1/2
No. of Bolt Holes4
A2.80
D1.53
J4.00
K1.50
L2.88
M.56
N.69
S.71
Est. Wt. (lbs.)1.90

Components Table

DescriptionReq’d per Ass’y08161216122016161624203224323232Material
Nipple1C19235-2C19235-2C19236-2C19235-2C19043C19237-2C19046C19046Monel
Socket1C18667-2C18667-2C18703-2C18667-2C18990-2C18662C18662C18662Monel
Flange1C19514C19515C19517C19516C19518C19519C19520C19521Aluminum. Bronze
