EF-1488A-0404 – End Fittings – Straight – S.A.E. 37º Female Flare (J.I.C.) to Hose (MIL-DTL-24787/2, Type A, Group VIII)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/2, Type A, Group VIII, End Fitting - Straight )

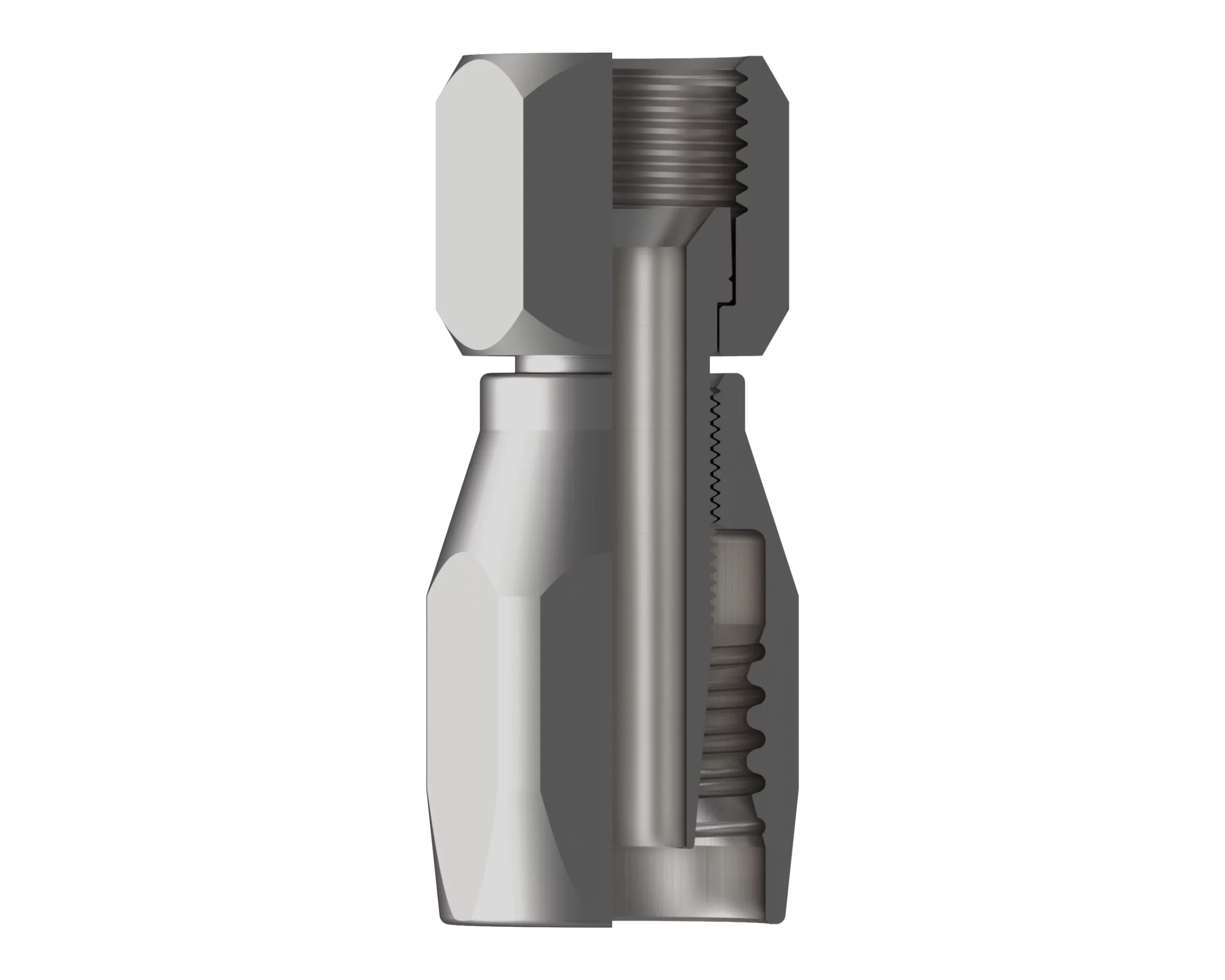

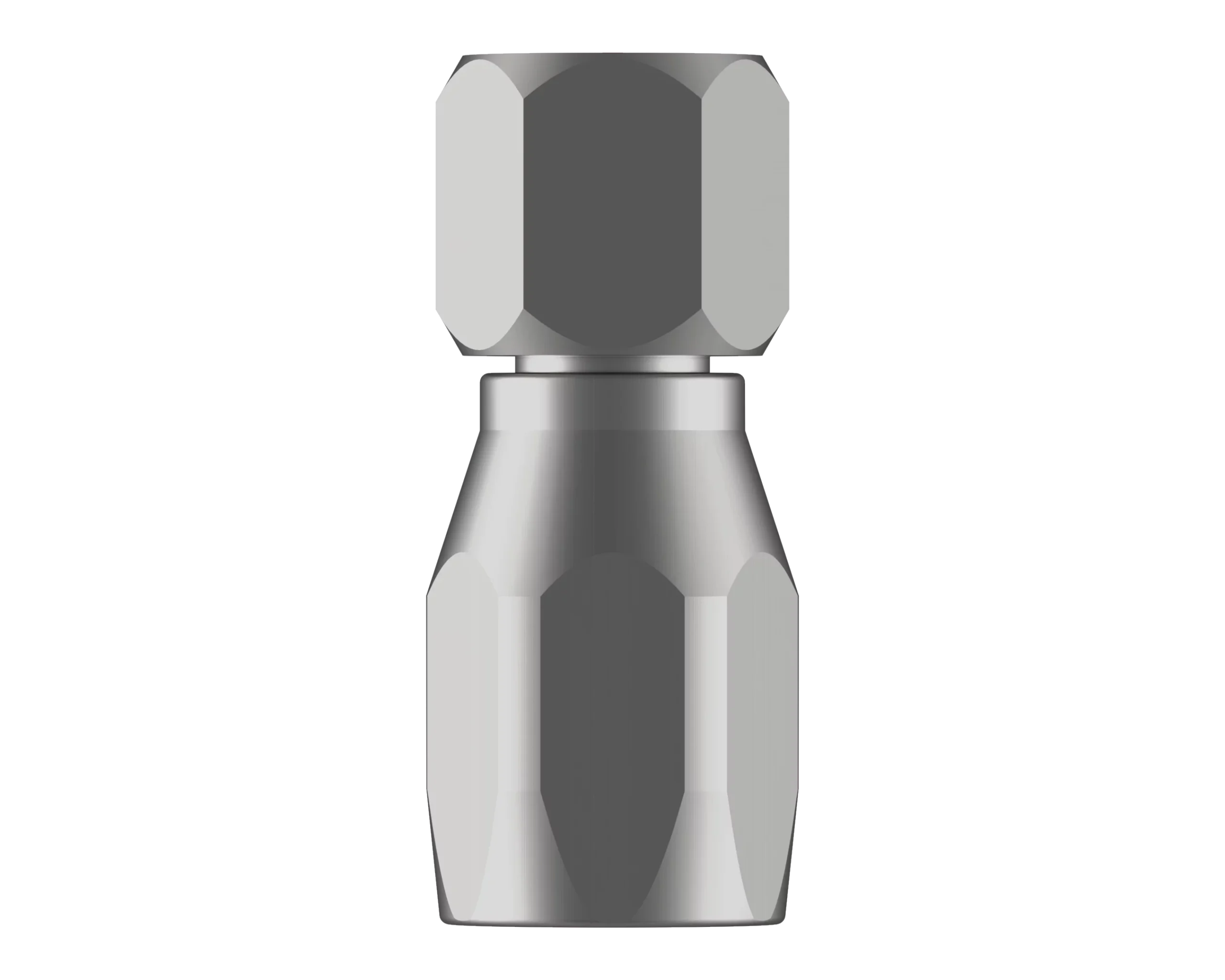

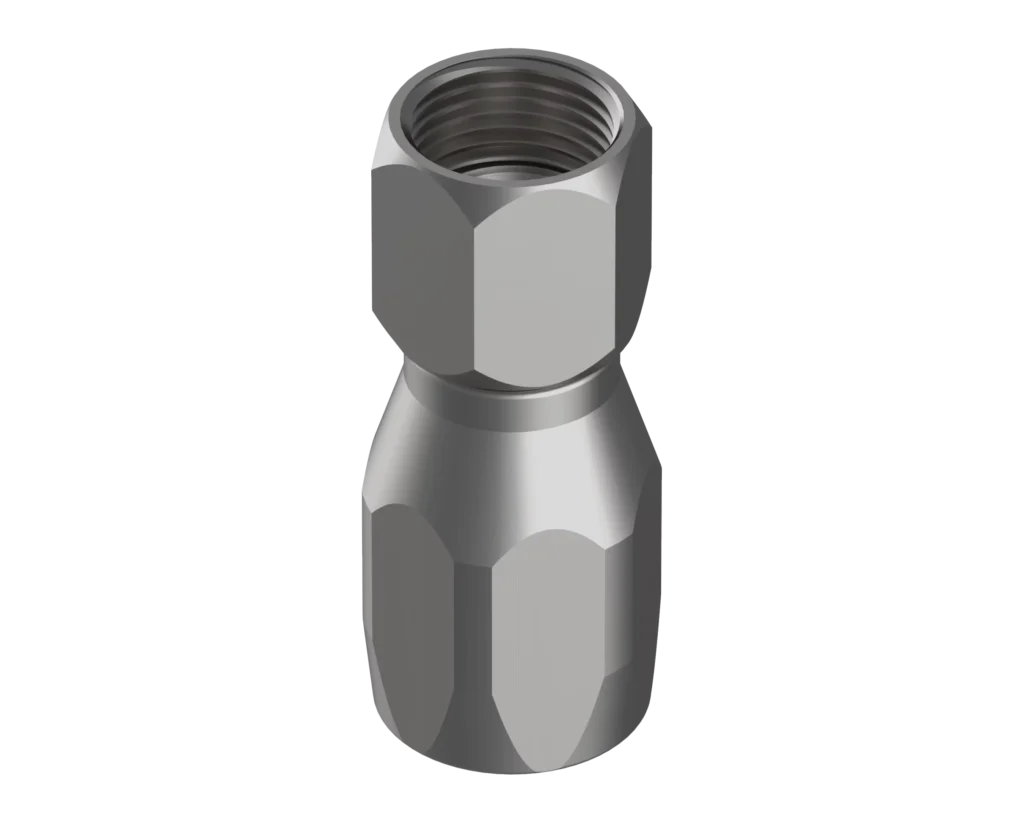

Description:

Equal to Aeroquip P/N 4-411,
Use with the following hose: Synthetic yarn & wire reinforced hoses i.a.w. MIL-DTL-24136/3, MIL-DTL-24135/10/12, e.g. HS P/N 2580

Specification

  • Part Number: EF-1488A-0404
  • Hydrasearch Drawing Number: C19219
  • Hose Size: 1/4
  • T Thread CL-2A: 7/16”-20
  • A: 1.82
  • B: .85
  • C: .56
  • D: 1.20
  • E: .17
  • G: .63
  • M: .35
  • V: 1.10
  • Est. Wt. (lbs.): .10

Specification Table

Part NumberEF-1488A-0404
Hydrasearch Drawing NumberC19219
Hose Size1/4
T Thread CL-2A7/16”-20
A1.82
B.85
C.56
D1.20
E.17
G.63
M.35
V1.10
Est. Wt. (lbs.).10

Components Table

DescriptionReq’d per Ass’y040405050606080810101212Material
Nipple1B18978-2B18979-2B18980-2C18647-2-2B18981-2B18982-2Monel
Socket1C18984-2C18985-2C18986-2C18648-2C18987-2C18988-2Monel
Nut1B18972-2B18973-2B18974-2B18778-2B18975-2B18976-2Monel
