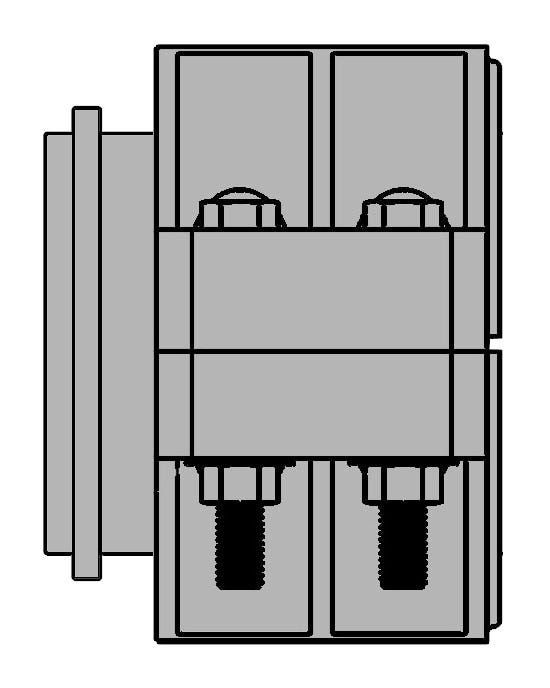

EF-10MS-ER512-2P – 2-Piece End Fittings – Straight – Male Split Clamp to Hose (MIL-DTL-24787/4, Type E, Group IX)
EF-10MS-ER512-2P – 2-Piece End Fittings – Straight – Male Split Clamp to Hose (MIL-DTL-24787/4, Type E, Group IX)
EF-10MS-ER512-2P

EF-10MS-ER512-2P – 2-Piece End Fittings – Straight – Male Split Clamp to Hose (MIL-DTL-24787/4, Type E, Group IX)

Print Icon Print Download Icon Download PDF
( MIL-DTL-24787/4 )

Description:

Equal to Aeroquip Equal to Aeroquip P/N FC7755-188,
Use with the following hose: ER512 & 2580

Specification

  • Applicable Hoses: ER512 2580
  • Component 1: Required per Assembly – 1 Description – Nipple D18834 Material – Aluminum Bronze in accordance with ASTM B505 C95400
  • Component 2: Required per Assembly – 2 Description – Segment Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 C22161
  • Component 3: Description – Bolt Required per Assembly – 4 Material – Monel in accordance with QQ-N-286 C22173-2
  • Component 4: Required per Assembly – 4 Description – Nut B18347 Material – Monel in accordance with QQ-N-281
  • Component 5: Description – Washer Required per Assembly – 4 B18348 Material – Monel in accordance with QQ-N-281
  • M: '0.86
  • T: '15.10
  • V: '4.97
  • Z: '12.06
  • A: '7.09
  • D: '2.74
  • E: '10.67
  • F: '11.00
  • Equal To Aeroquip No : Fc7755-1010-188
  • Est. Wt. (lbs.): '77
  • IPS Size: '10
  • Mil Spec: MIL-DTL-24787/4

Specification Table

Applicable HosesER512 2580
Component 1Required per Assembly – 1 Description – Nipple D18834 Material – Aluminum Bronze in accordance with ASTM B505 C95400
Component 2Required per Assembly – 2 Description – Segment Material – Aluminum Bronze in accordance with MIL-B-24480 C95800 C22161
Component 3Description – Bolt Required per Assembly – 4 Material – Monel in accordance with QQ-N-286 C22173-2
Component 4Required per Assembly – 4 Description – Nut B18347 Material – Monel in accordance with QQ-N-281
Component 5Description – Washer Required per Assembly – 4 B18348 Material – Monel in accordance with QQ-N-281
M'0.86
T'15.10
V'4.97
Z'12.06
A'7.09
D'2.74
E'10.67
F'11.00
Equal To Aeroquip No Fc7755-1010-188
Est. Wt. (lbs.)'77
IPS Size'10
Mil SpecMIL-DTL-24787/4
